- HYDX-2
- 【Brief】：
Product Feature

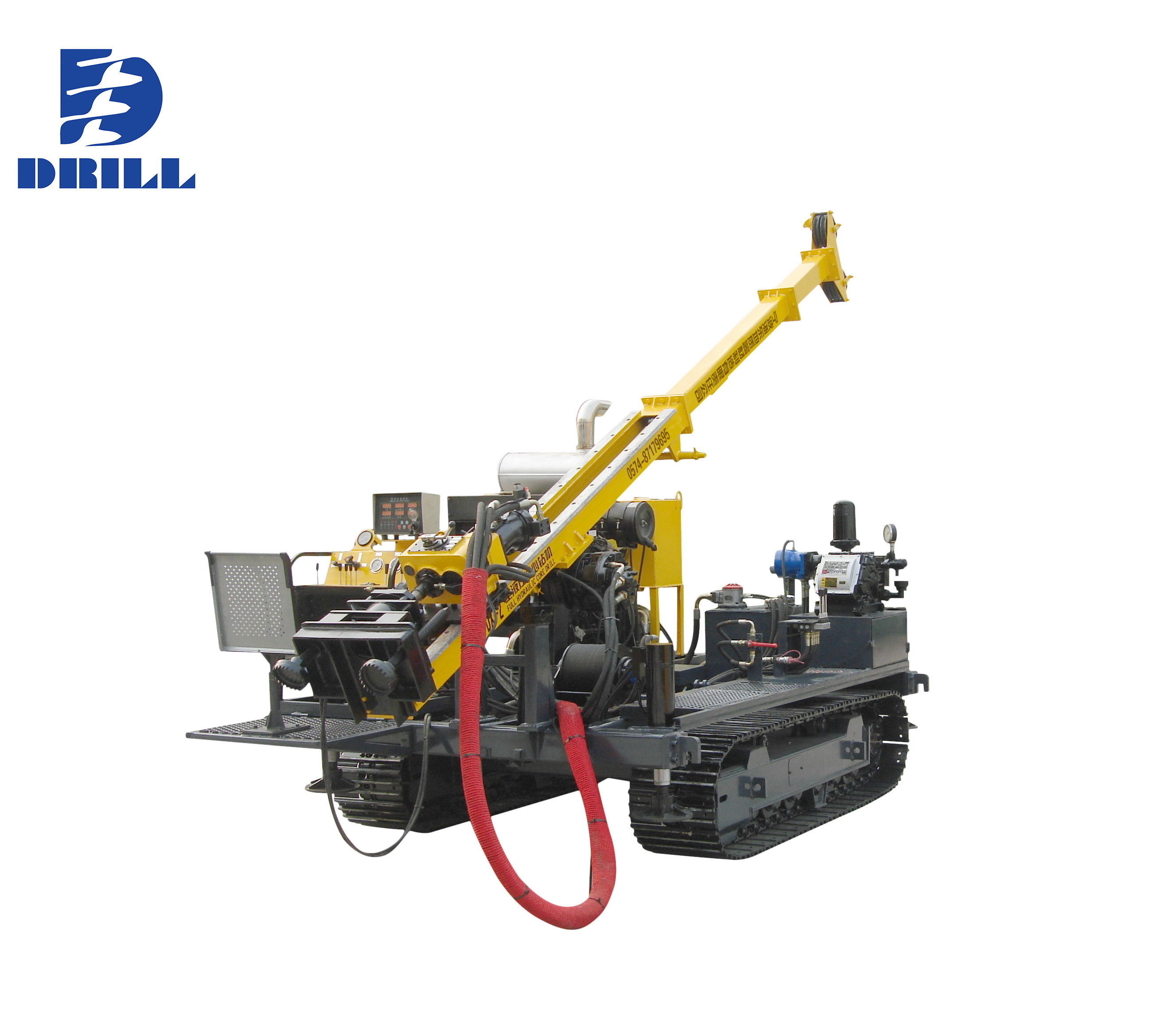

HYDX-2 full hydraulic portable drill rig is a kind of light rig designed for geological exploration in remote area difficult to enter. This portable drill rig is mainly suitable for diamond drilling with wireline coring technique. The rig consists of diesel power unit, hydraulic system, control panel, mast, and main winch, wire line winch, drill head, feed system, foot clamp, etc. The HYDX-2 hydraulic drilling rig is completely hydraulic driven for all its surface coring function. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.
- 【Series】：Full Hydraulic Drilling Rig
| HYDX-2 Drilling Rig Parameters | |||
| Bassic parameter of drilling capacity | Drill rod BQ | 350m | |
| Drill rod NQ | 230m | ||
| Drill rod HQ | 120m | ||
| Power Unit1 | Model | YC2108 diesel engine × 2 | |
| Rated Power of single Engine/Speed | 33KW/2400rpm | ||
| Power Unit2 | Model | Cummins diesel engine 4BTA3.9-C100 | |
| Rated Power of single Engine/Speed | 74KW/2200rpm | ||
| Drill Head | Max.spindle torque | 334-930N.m | |
| Max.spindle speed | 0-900rpm | ||
| Feeding system（feed with hydraulic cylinder） | Feeding stroke | 1700mm | |
| Lifting Capacity | 50KN | ||
| Feeding Capacity | 25KN | ||
| Main Hoist | Lifting Capacity | 18KN（single-wire, bare drum） | |
| Lifting Speed | 84m/min | ||
| Rope Capacity | 30m | ||
| Steel Wire diameter | Φ12mm | ||
| Wire line Winch | Lifting Capacity | 8.4kN（single-wire, bare drum） | |
| Lifting Speed | 90-240m/min | ||
| Rope Capacity | 500m | ||
| Steel Wire diameter | Φ6mm | ||
| Mud Pump Model | BW-100A | ||
| Overal Dimensions L×H×W(mm） | 3500×1500×1300mm | ||
| Diamensions of the disassembled Parts | 400kg | ||
