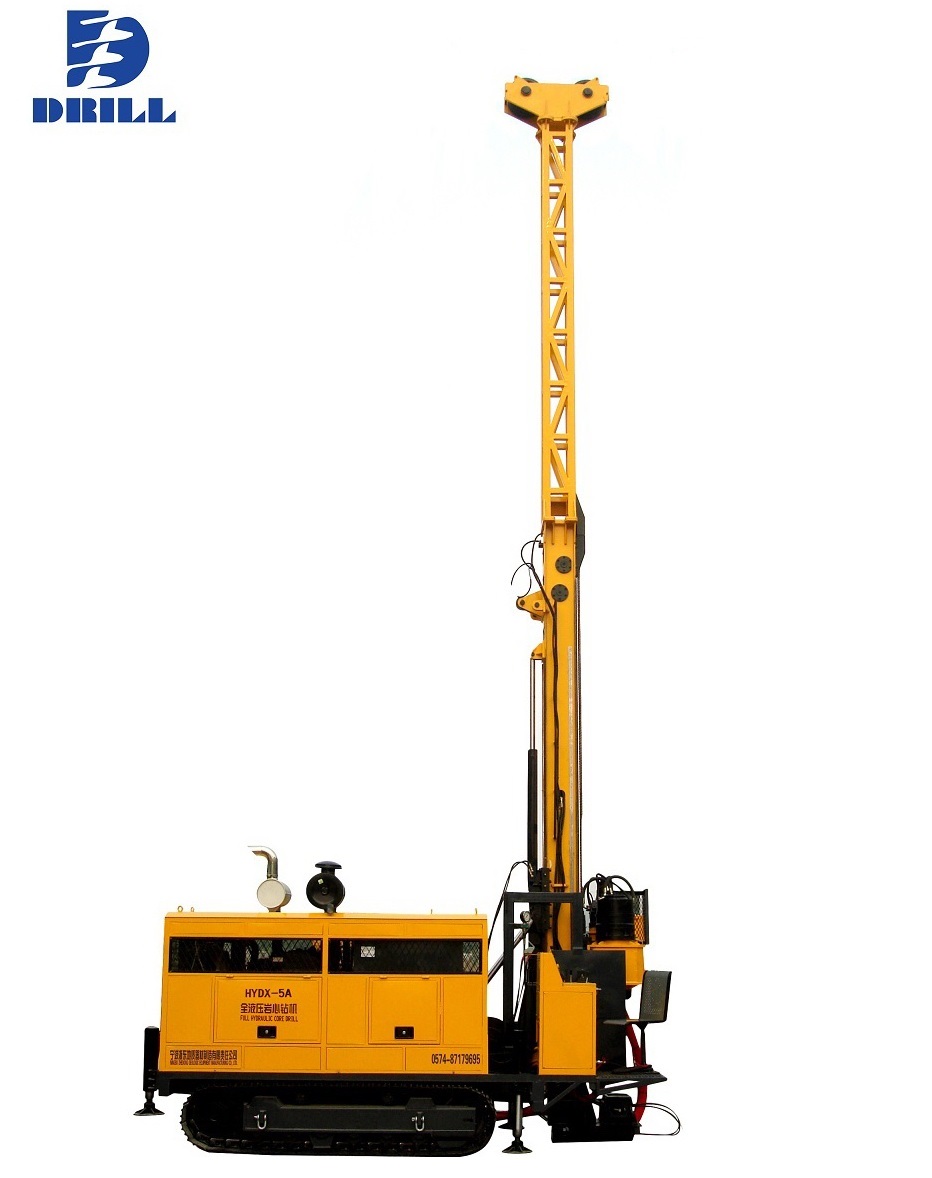

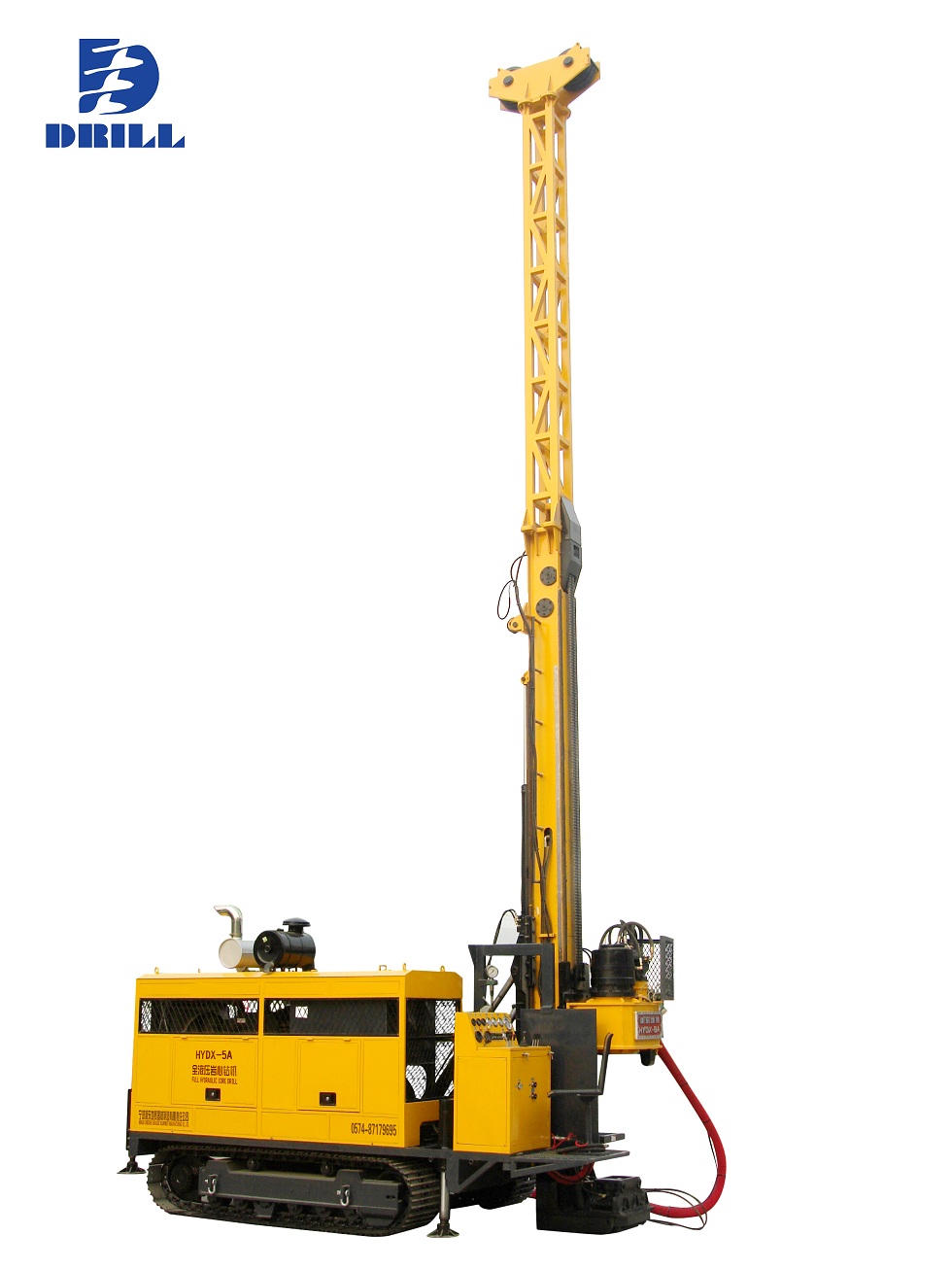

- HYDX-5A
- 【Brief】：
Product feature
The crawler drilling rig adopts full hydraulic driving, traveling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The mast could be adjusted within the range of angle 0 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The crawler drilling rig provides operator with a nice field of vision and wide and comfortable working condition.
- 【Series】：Full Hydraulic Drilling Rig
|
HYDX-5A Drilling Rig Parameters |
||
|
Diesel engine |
Model |
Cummins 6CTA8.3-C195 (Turbocharged and charge water cooled) |
|
|
Displacement |
8.3L |
|
|
Power |
145KW |
|
|
Rotate speed |
2200rpm |
|
drill capacity |
BQ |
1500m |
|
|
NQ |
1300m |
|
|
HQ |
1000m |
|
|
PQ |
680m |
|

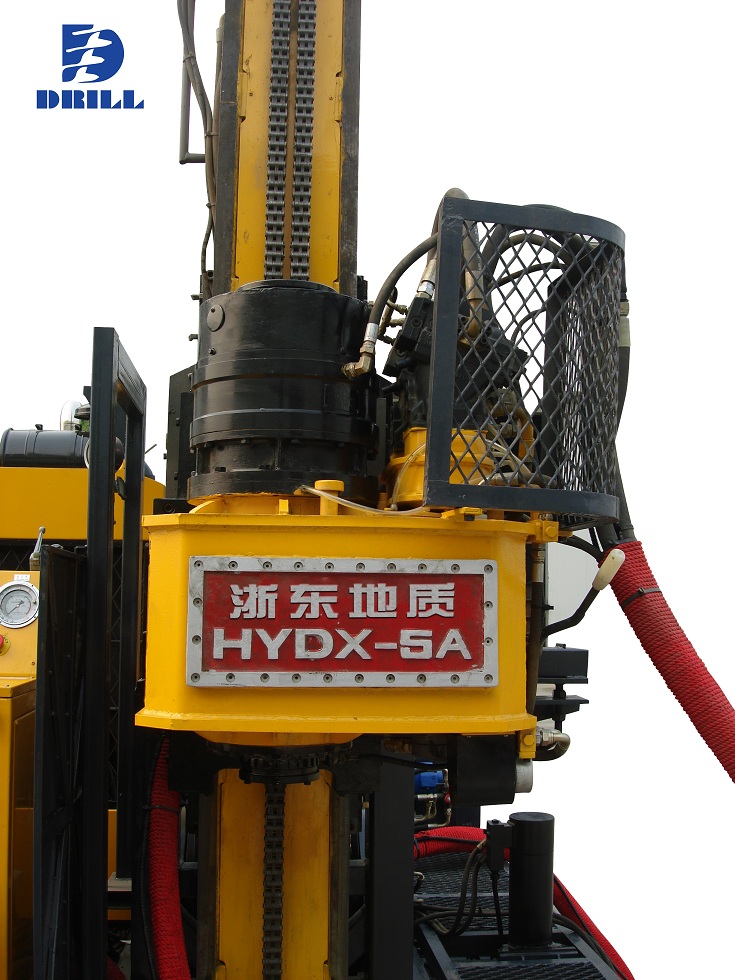

Power head ability |
Rotation Motor |
Double Hydraulic Motors –variable and Reversible Maker：SAUER-DANFOSS |
|
|
Rotate speed |
0-1145rpm |
|
|
Ratios |
1st 8.776:1, 2nd 2.716:1 |
|
|
Head Opener |
Sidewise sliding way with hydraulic drive |
|
|
Hydraulic Chuck(PQ) |
Hydraulically opened, Disc Spring Clamping, Normally Closed Type Axial Holding Capacity of 222 400 N |
|
|
Torque |
4650N·m |
|
|
Spindle bore |
Φ121mm |
|
|
Maximum pulling force |
150KN |
|
|
Maximum feed force |
75KN |
|
Primary Pump Package |
Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch. |
Maker: DANFOSS 1st Pump: at 25MPa 3rd Pump: 102 LPM at 25MPa |
|
Hydraulic Tank |
Capacity |
420 L |
|
The main winding capacity |
Hoisting Speed (single wire) |
38-70m/min |
|
|
Elevating power |
77KN |
|
|
Diameter of wire rope |
18mm |
|
|
Length of rope |
50m |
|
Capacity of Wire line Hoist Mast |
Hoisting Speed (single wire) |
164m/min |
|
|
Hoisting Force (single wire) |
12 kN |
|
|
Steel Wire Diameter |
6 mm |
|
|
Steel Wire Length |
1500 m |
|
|
Mast Height of Hydraulic Crawler Drill Rig |
11 m |
|
|
Mast Adjusting Angle |
0°—90° |
|
|
Drilling Angle |
45°—90° |
|
|
Feeding Stroke |
3800 mm |
|
|
Slippage Stroke |
1500 mm |
|
|
Feed Pull |
15000kg |
|
|
Feed Thrust |
7500kg |
|
|
Rod Pull |
3m or 6m |
|
Slime pump |
Type |
Reciprocating Pump Triplex Plunger |
|
|
Model |
BW250 |
|
|
Stroke |
100mm |
|
|
Output volume |
250,145, 90, 52 L/min |
|
|
Discharge pressure |
2.5, 4.5, 6.0, 6.0 Mpa |
|
Foot Clamp |
Clamping Scope |
55.5-117.5 mm |
|
Other |
Move mode |
Steel crawler self-propelled |
|
|
Measure（L×W×H） |
5600×2240×2650mm |
|
|
Weight |
12500kg |
