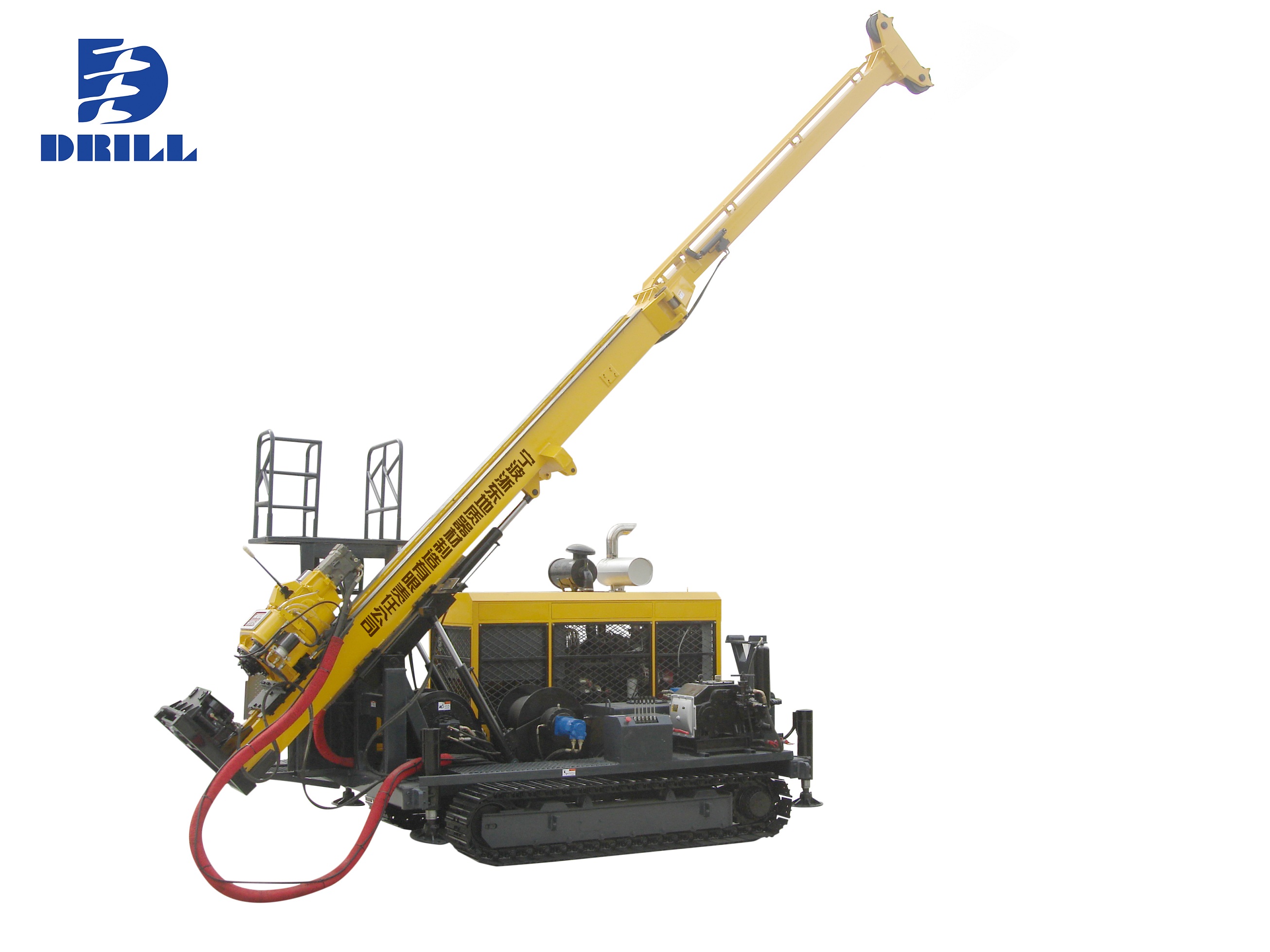

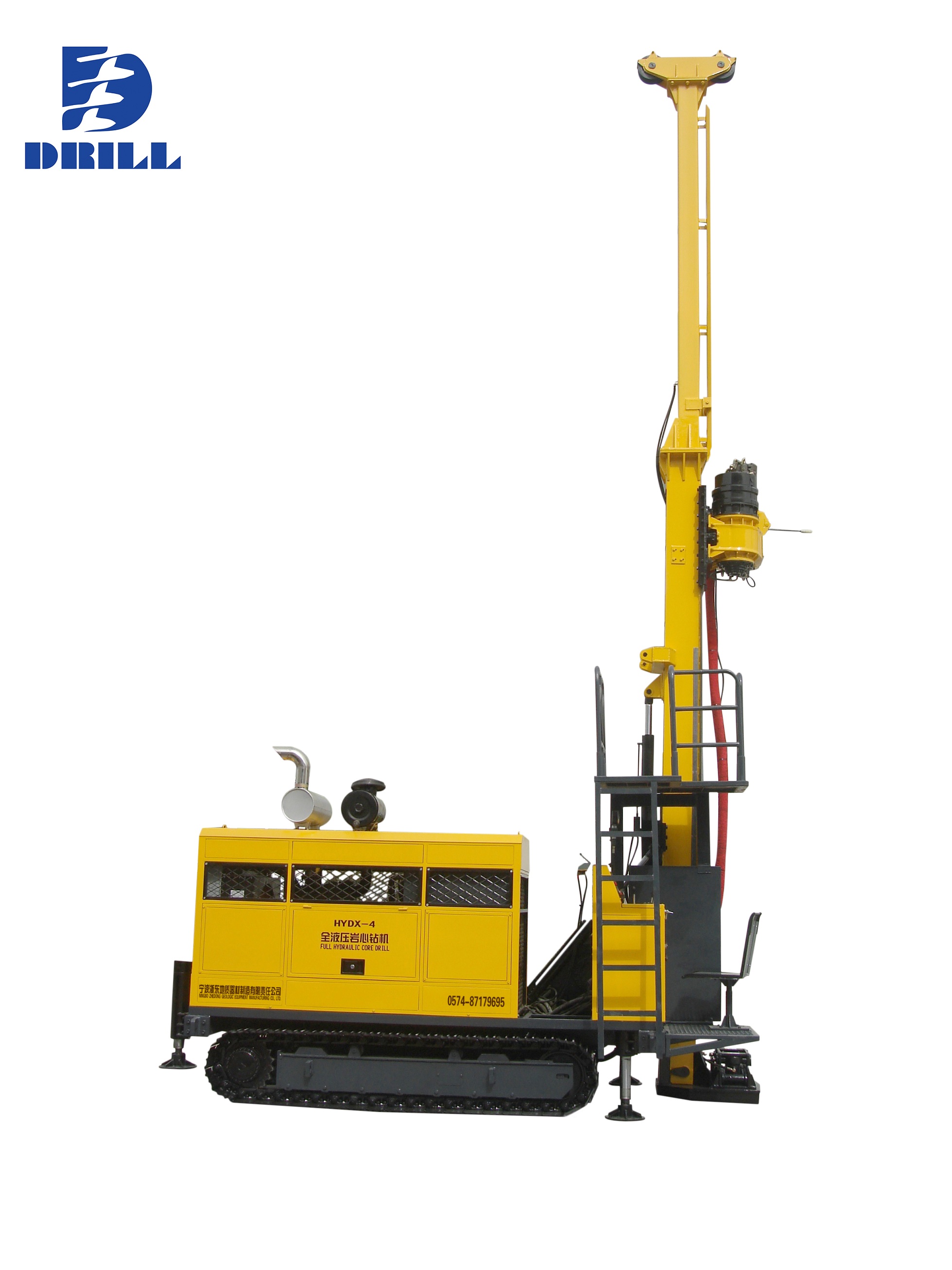

HYDX-4
【Brief】:

Product feature

The HYDX-4 hydraulic core drilling rig of full hydraulic and rotator adopted the technology of wire-line coring, has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

【Series】:Full Hydraulic Drilling Rig
HYDX-4 Drilling Rig Parameters
Diesel engine Model Cummins 6BTA5.9-C180 (Turbocharged and charge water cooled)
Power 132KW
Rotate speed 2200rpm
drill capacity  BQ 1000m
NQ 700m
HQ 500m
PQ 300m
Power head ability Rotate speed 0-1100rpm (Four Shifts/ Steeples Change)
Torque 4200N·m
Spindle bore Φ98mm
Maximum pulling force 150KN
Maximum feed force 60KN
The main winding capacity Elevating power 57KN
Diameter of wire rope 12mm
Length of rope 50m
The rope winding Elevating power 12KN
Diameter of wire rope 6mm
Length of rope 1000m
Mast Mast height 11m
Mast adjusting angle 0°—90°
Drilling angle 45°—90°
Feeding stroke 3500mm
Slippage stroke 600mm

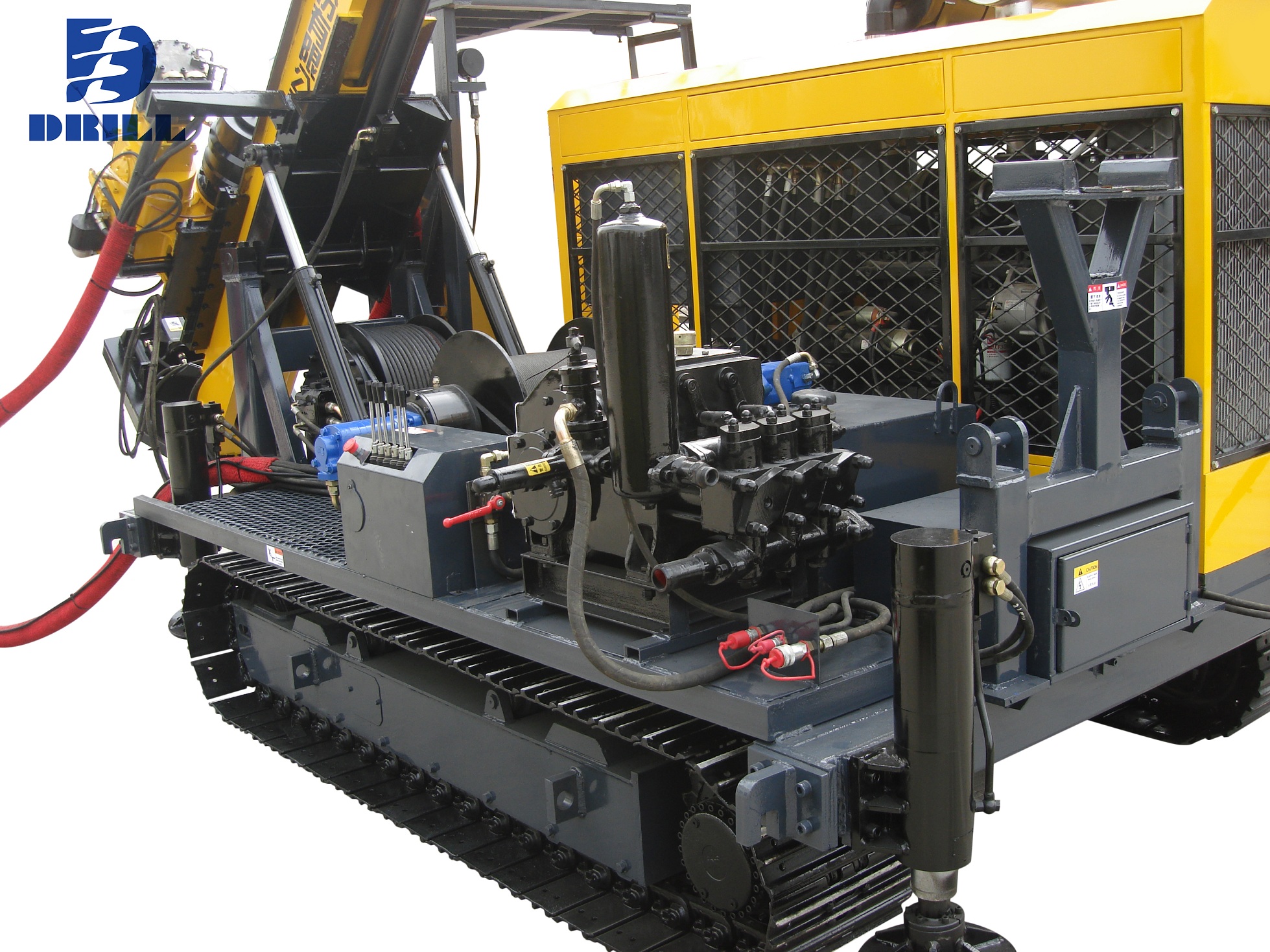

Slime pump Model BW150
Bottom Clamp Clamping scope 55.5-117.5mm (through hole Φ154mm)
Other Move mode Steel crawler self-propelled
MeasureL×W×H 5100×2200×2890mm
Weight 9300kg
