Product Feature

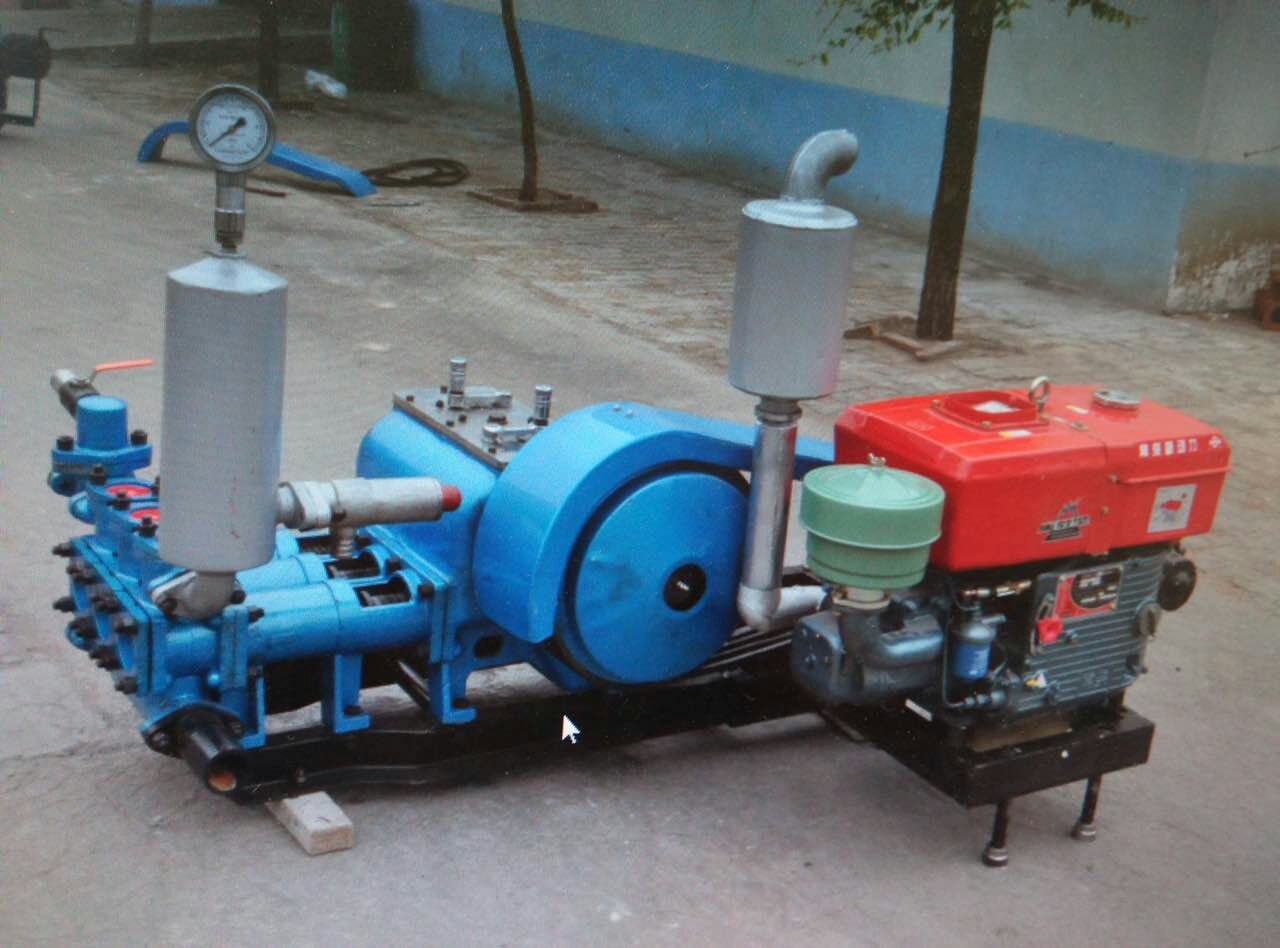

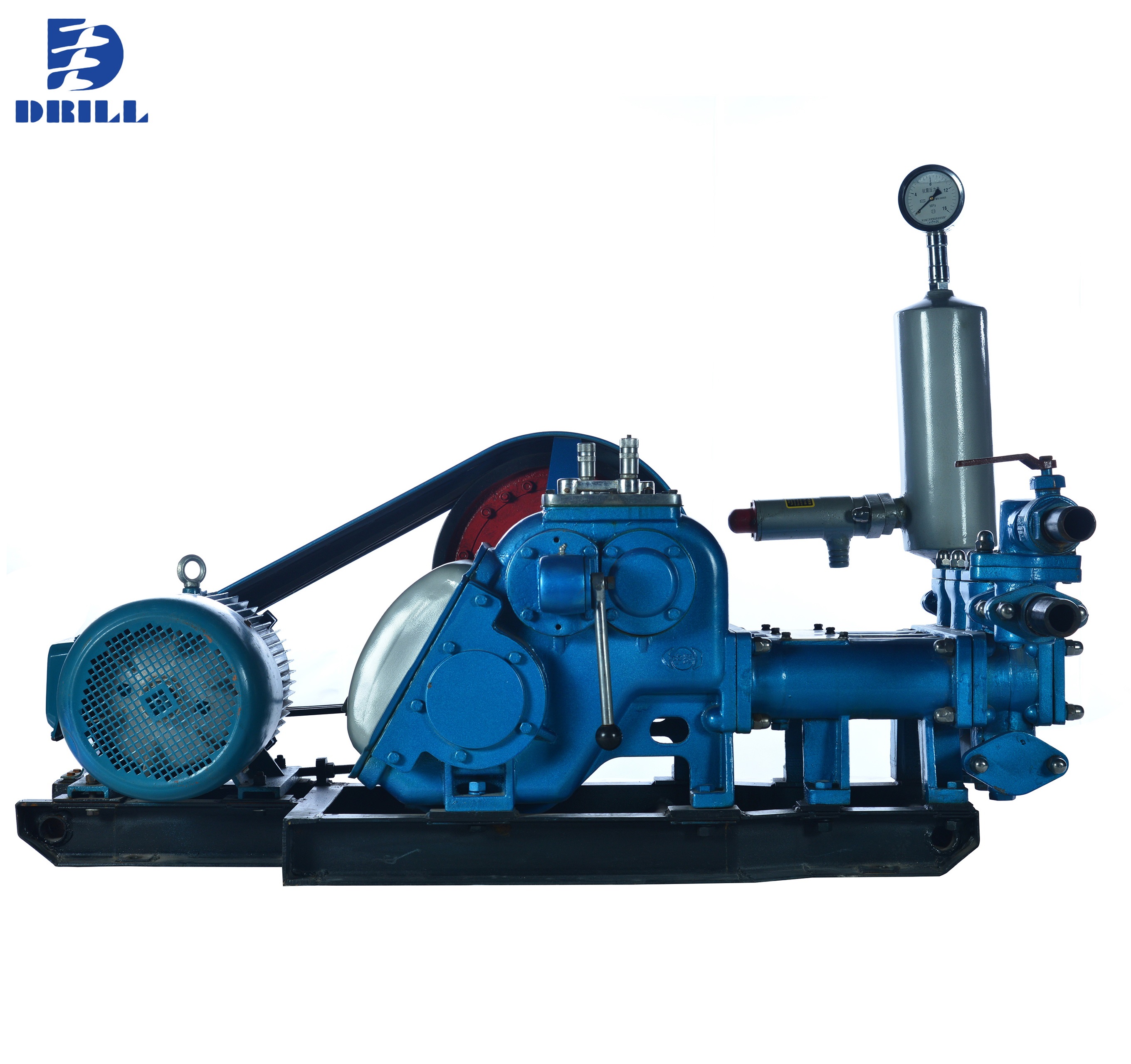

BW-250-type mud pump is the horizontal three-cylinder reciprocating single-acting piston pump. Mainly used for supporting the core drilling drilling mud, can also be used for other aspects of grouting, mine sewage and long-distance water supply and other purposes.
- 【Серии】：Mud Pump
| BW-250 Mud Pump Parameters | |||||||||
| Type | Horizontal three cylinder reciprocating single acting piston pump | ||||||||
| Stroke (mm) | 100 | ||||||||
| Cylinder diameter (mm) | 80 | 65 | |||||||
| Pump speed (min-1) | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | |
| Flow (L/min) | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 | |
| Pressure (MPa) | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 | |
| Power (KW) | 15 | ||||||||
| Shape size (mm) | 1000×995×650 | ||||||||
| Weight (kg) | 760 | ||||||||
