- ZT-36
- 【краткое】：Product feature

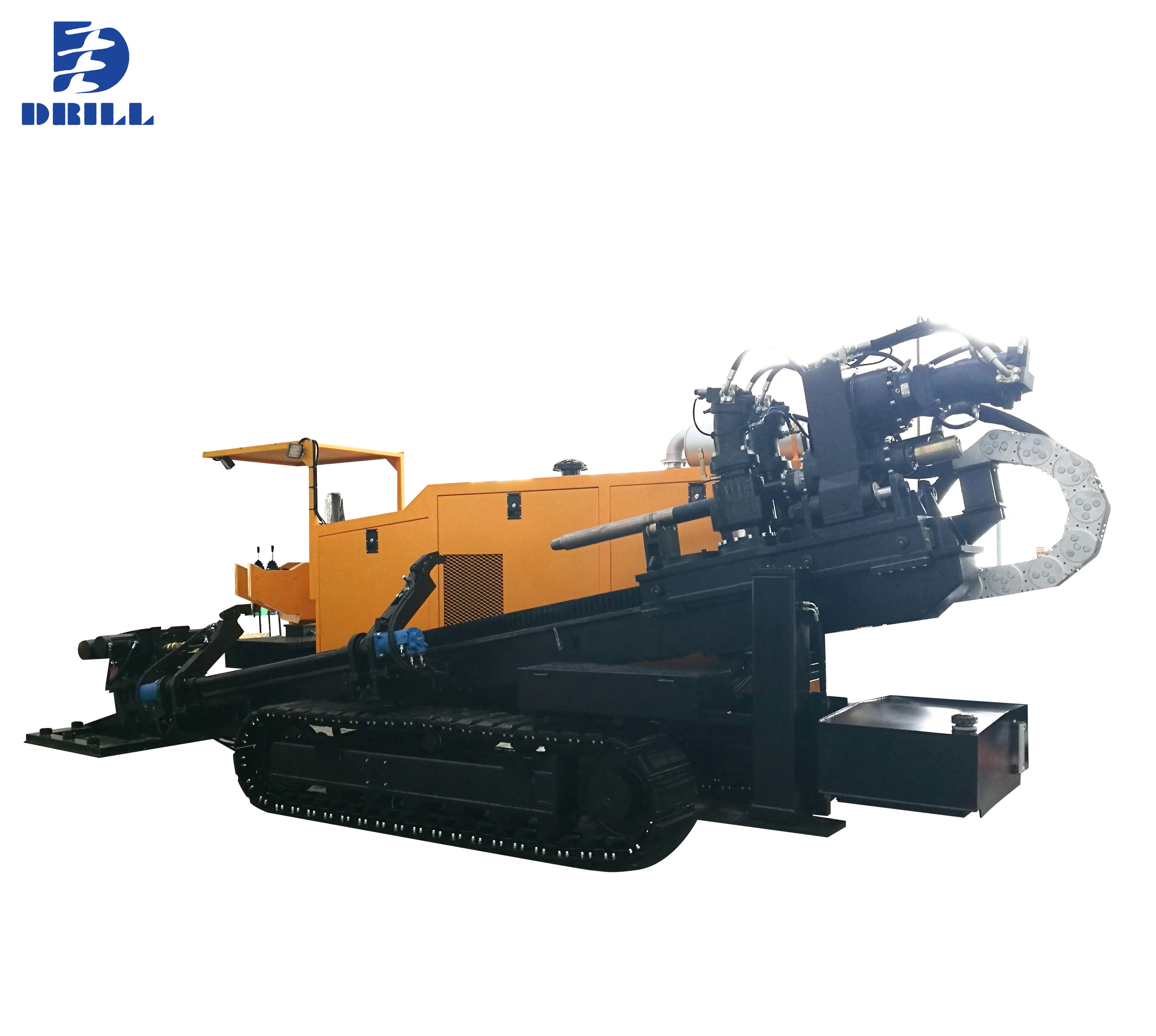

ZT-36 is a horizontal directional drilling pipe laying drill steel crawler hydraulic directional drilling. Steel crawler can be equipped with a rubber block, convenient city construction. Equipped with Cummins diesel engine, powerful, reliable performance. With the piston motor drive power head, high speed, large torque. The feeding mechanism is driven by motor chain. The double clamping device screwed and unloaded the drill pipe, and the efficiency is high. Suitable for long distance, large diameter pipe laying engineering. - 【Серии】：Horizontal Directional Drilling Rig
| ZT-36 Horizontal Directional Drilling Rig Parameters | |
| Diesel Engine Power | 160KW |
| Max.Spindle Torque | 14000N·m |
| Max.Pullback Force | 360KN |
| Max.Thrust Force | 360KN |
| Spindle Speed | 0-65rpm, 0-105rpm |
| Entry Drill Angle | 8-20° |
| Max. Mud Flow Rate | 320L/min |
| Max. Fluid Pressure | 8MPa |
| Drill Rod (Dia.× Length) | Φ76×3000mm |
| Diameter of Barrel Reamer | Φ300-900mm |
| Diameter of Winged Reamer | — |
| Fluted Channel Reamer | — |
| Rig Size (Lx Wx H) | 6750mm×2280mm×2500mm |
| Weight | 13000kg |
