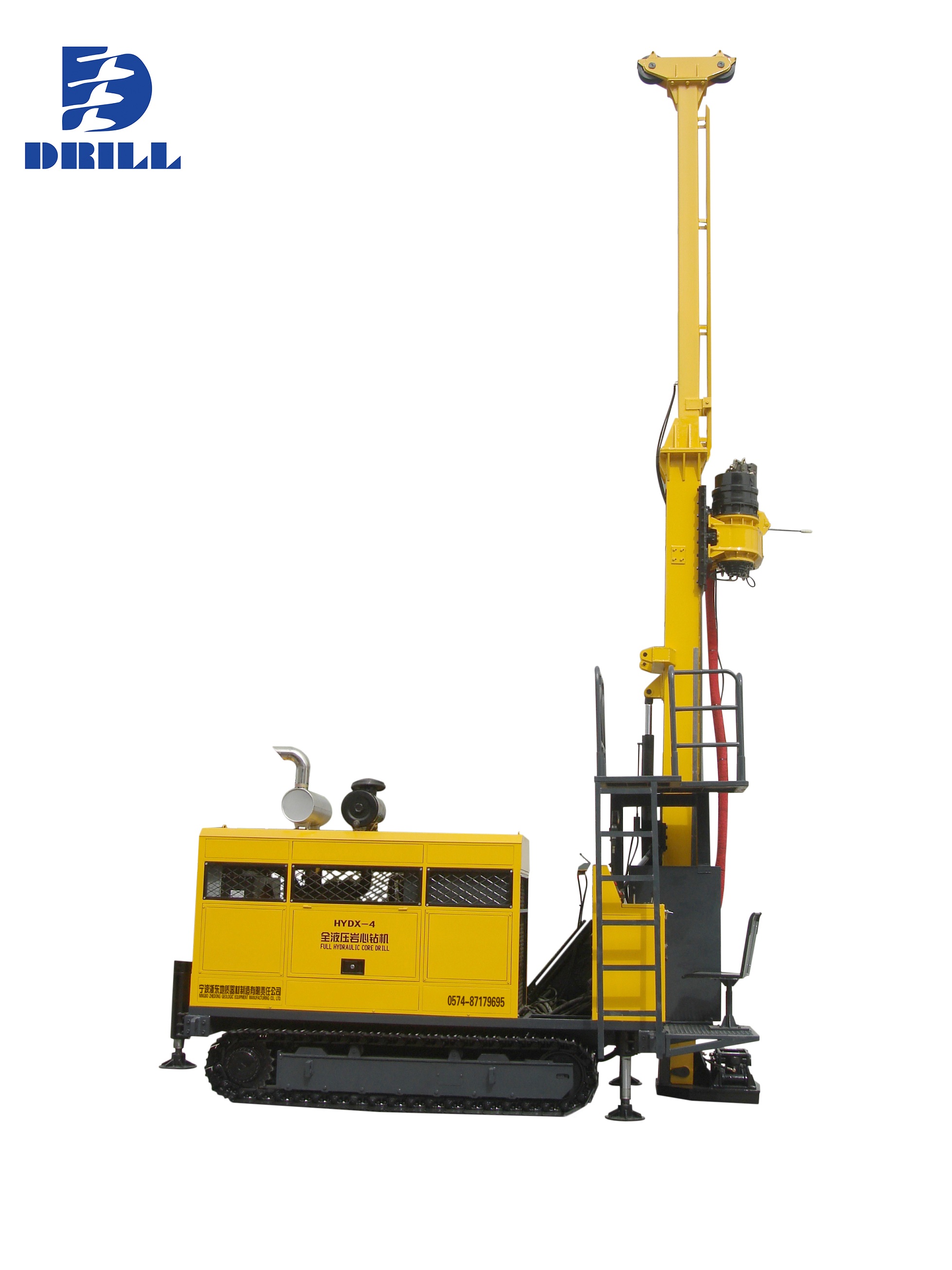

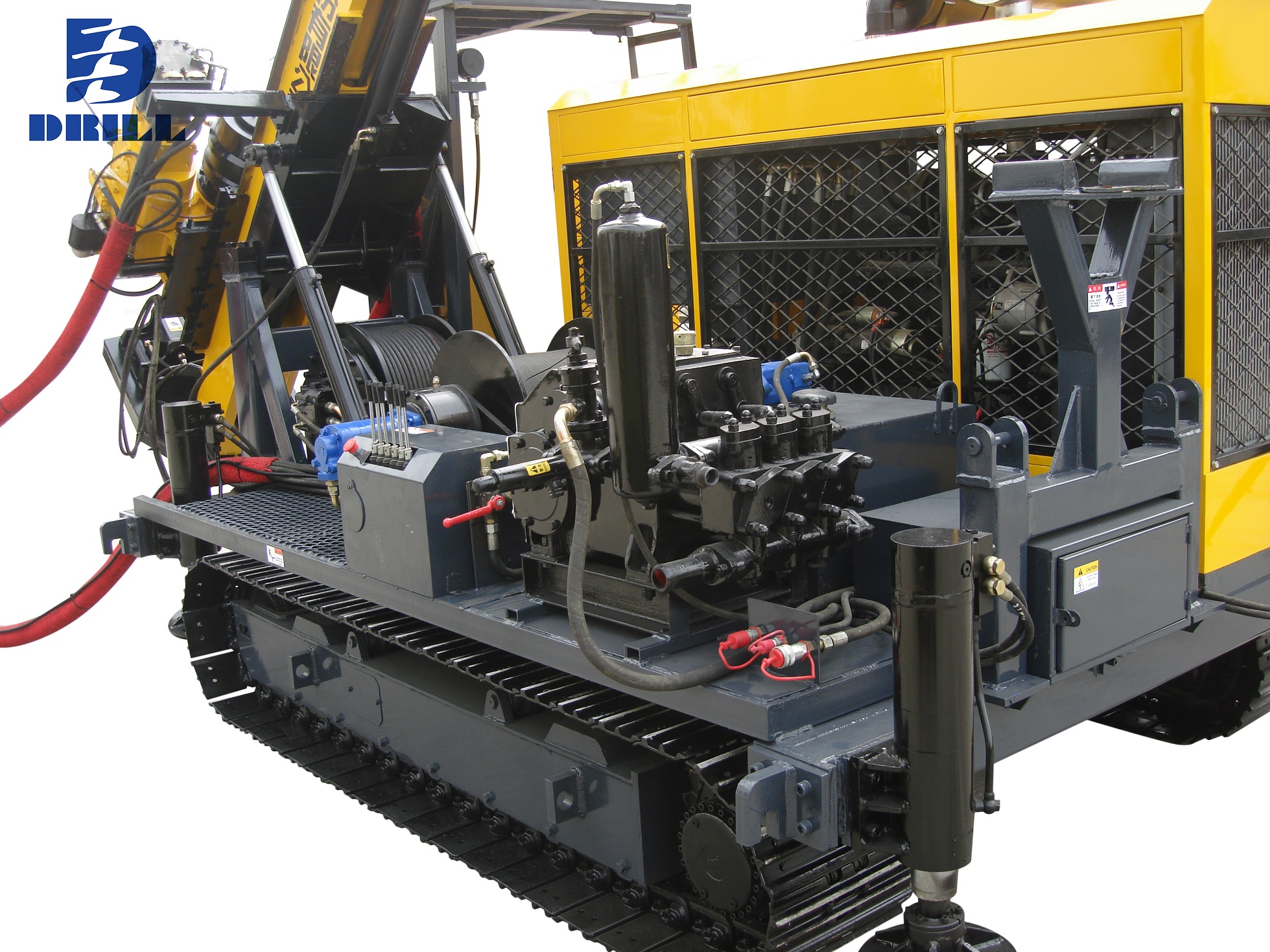

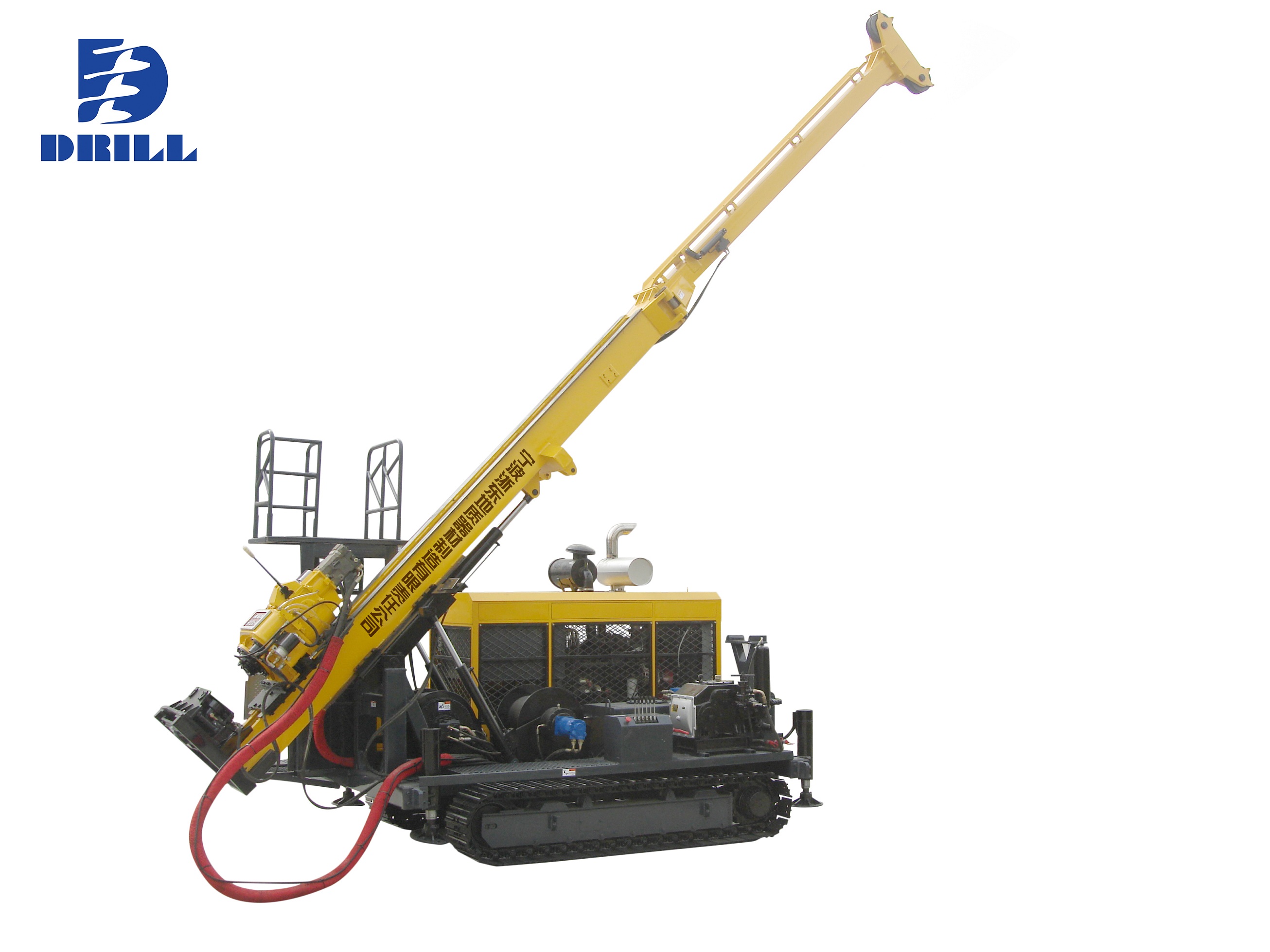

- HYDX-4
- 【краткое】：
Product feature
The HYDX-4 hydraulic core drilling rig of full hydraulic and rotator adopted the technology of wire-line coring, has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.
- 【Серии】：Full Hydraulic Drilling Rig
| HYDX-4 Drilling Rig Parameters | ||
| Diesel engine | Model | Cummins 6BTA5.9-C180 (Turbocharged and charge water cooled) |
| Power | 132KW | |
| Rotate speed | 2200rpm | |
| drill capacity | BQ | 1000m |
| NQ | 700m | |
| HQ | 500m | |
| PQ | 300m | |
| Power head ability | Rotate speed | 0-1100rpm (Four Shifts/ Steeples Change) |
| Torque | 4200N·m | |
| Spindle bore | Φ98mm | |
| Maximum pulling force | 150KN | |
| Maximum feed force | 60KN | |
| The main winding capacity | Elevating power | 57KN |
| Diameter of wire rope | 12mm | |
| Length of rope | 50m | |
| The rope winding | Elevating power | 12KN |
| Diameter of wire rope | 6mm | |
| Length of rope | 1000m | |
| Mast | Mast height | 11m |
| Mast adjusting angle | 0°—90° | |
| Drilling angle | 45°—90° | |
| Feeding stroke | 3500mm | |
| Slippage stroke | 600mm | |
| Slime pump | Model | BW150 |
| Bottom Clamp | Clamping scope | 55.5-117.5mm (through hole Φ154mm) |
| Other | Move mode | Steel crawler self-propelled |
| Measure（L×W×H） | 5100×2200×2890mm | |
| Weight | 9300kg | |
