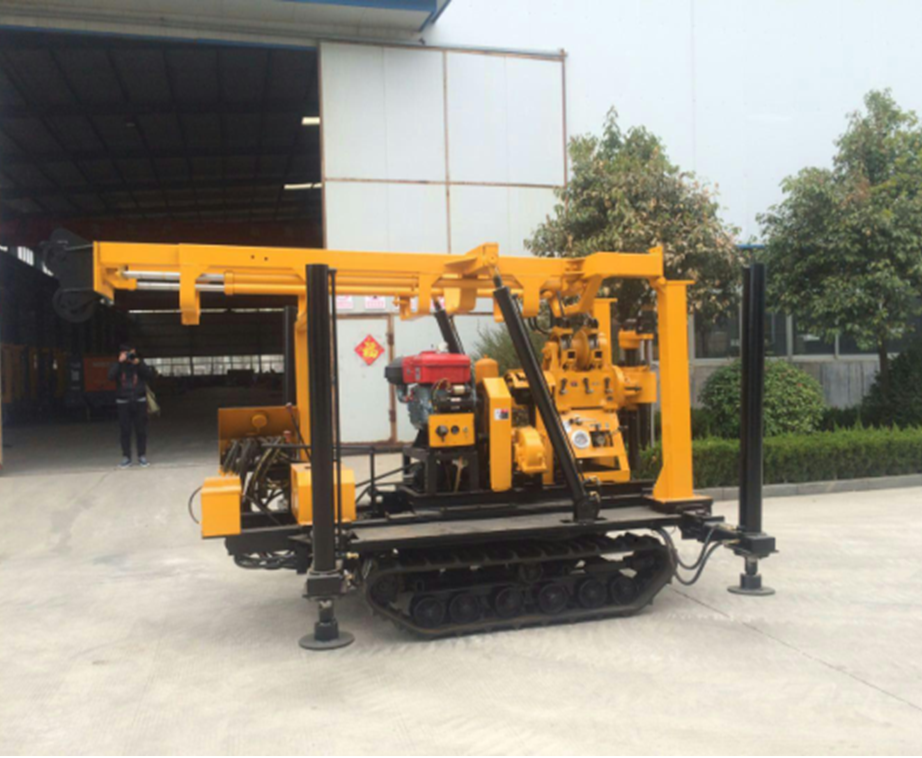

- XYD-200
- 【краткое】：
Product feature

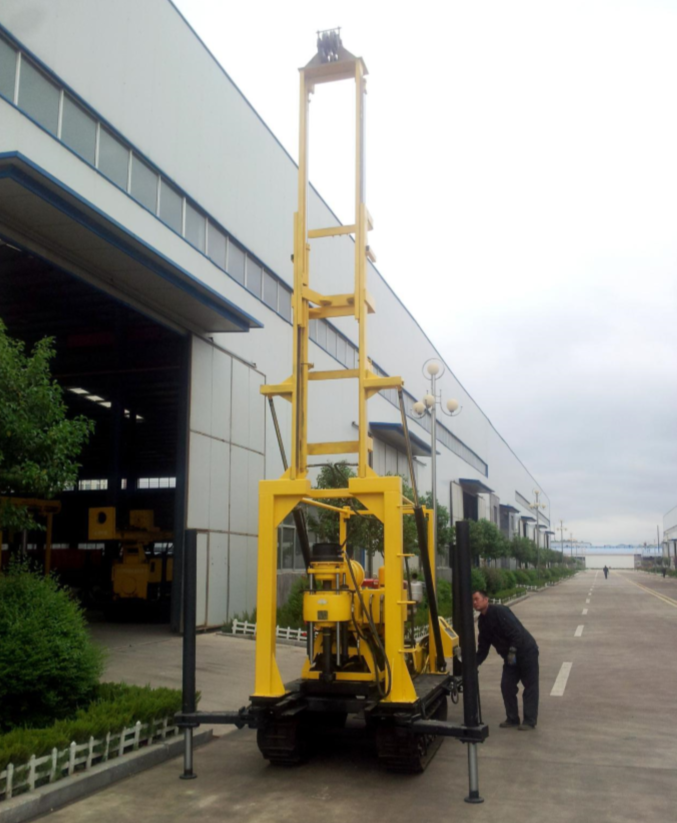

1. The drilling rig adopts automatic telescopic mast, hydraulic cylinder support, hydraulic control drilling tower up and down, the operation saves time and labor, is safe and reliable.
2. The rubber track can reduce the noise of the walking mechanism of the vehicle, reduce the vibration of the body, and can be walked on the city road.
3. Four hydraulic legs can be used for work plane leveling and auxiliary support, convenient for vehicle loading and unloading, reduce lifting costs, improve efficiency.
4. 48V electric start diesel engine, effectively reduce the operator's labor intensity.
5. Independent BW-160 mud pump, large flow, high pressure, easy maintenance. - 【Серии】：Spindle Core Drilling Rig
| Basic Data | Drill Capacity | 200m |
| Initial hole dia. | 300mm | |
| Final hole dia. | 75mm | |
| Drill Rod | Φ50, Φ60 | |
| Drill Angle | 90~75° | |
| Diesel Engine | 15KW/2200rpm | |
| Weight (without power) | 3600kg | |
| Dimensions (L×W×H) | 3800×1950×2700mm | |
| Spindle | Rotate Speed | 64, 128, 287, 557rpm |
| Stroke | 450mm | |
| Hoist | Hoisting Speed (single wire) | 0.12, 0.22, 0.49, 0.95m/S |
| Hoisting Force (single wire) | 24KN | |
| Reel Dia. | 140mm | |
| Length of Steel Wire | 35m | |
| Steel Wire Dia. | 13mm | |
| Drill Mast | Rated Load | 18T |
| Effective Height | 6.5m | |
| Crawler Chassis | Crawler Size | 350×90×48mm (part) |
| Climbing Angle | 20° | |
| Moving Speed | 10km/h | |
| Hydraulic Landing Leg Valid Height | 1300mm | |
| Mud Pump | Model | BW160 |
| Flow | 160L/min | |
| Max. Pressure | 1.3MPa | |
| Speed | 165min-1 | |
| Inlet Hose Dia. | 51mm | |
| Outlet Hose Dia | 32mm |
