- XY-44A
- 【краткое】：
Product feature

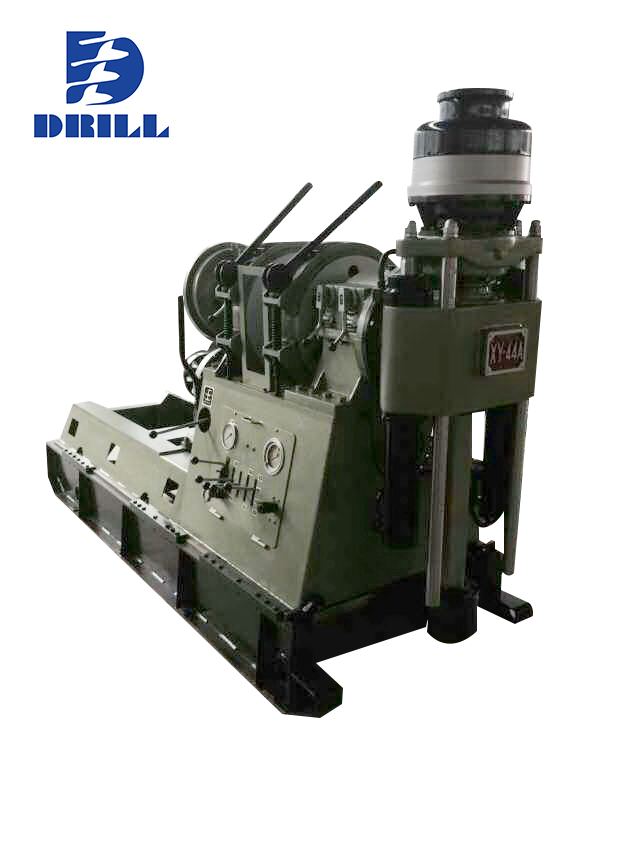

XY-44A core drilling rig is an improved product based on XY-42 and XY-44 drilling rig. Besides all the facilities of XY-42 and XY-44, guide rod structure is adopted on this machine, in addition, the machine is equipped with water brake and manually controlled oil pump.
XY-44A is mainly adapted to suit for core drilling with diamond bit or tungsten-carbide tipped bit. It can also be used for engineering exploration, water well and foundation hole drilling. In addition to China, it is also exported to South-east Asia, Africa Latin America and European countries. - 【Серии】：Spindle Core Drilling Rig
|
XY-44A Drilling Rig Parameters |
||||
|
Content |
Parameter |
Content |
Parameter |
|
|
Drilling depth |
660-1400m (Core drilling) |
Max. lifiting capacity of spindle |
120KN |
|
|
|
100m (Foundation stake drilling) |
|
|
|
|
|
300-800m (Hydrological drilling) |
|
|
|
|
Rotation anglc of spindlc |
0-360° |
Max. pressuring force spindle |
90KN |
|
|
Spindlc speed |
Positive |
83, 152, 217, 316， |
Dimensions（L×W×H） |
3042×1100×1920mm |
|
|
|
|
|
|
|
|
Negative |
67, 206 rpm |
|
|
|
|
|
|
|
|
|
Max. rotary tarque of spindle |
3800N·m |
Steel Wire Diameter |
17.5mm |
|
|
|
|
|
|
|
|
Spindle stroke |
600mm |
Content of Winding Drum |
110m |
|
|
|
|
|
|
|
|
I.D of spindle |
93mm |
Max. hoisting forcce |
45KN |
|
|
|
|
|
|
|
|
Power |
Y225S-4 electric motor 37KW/1480rpm |
Weight （without power unit） |
2300kg |
|
|
|
|
|
|
|
|
|
YC4108ZD diese 50KW/1500rpm |
|
|
|
