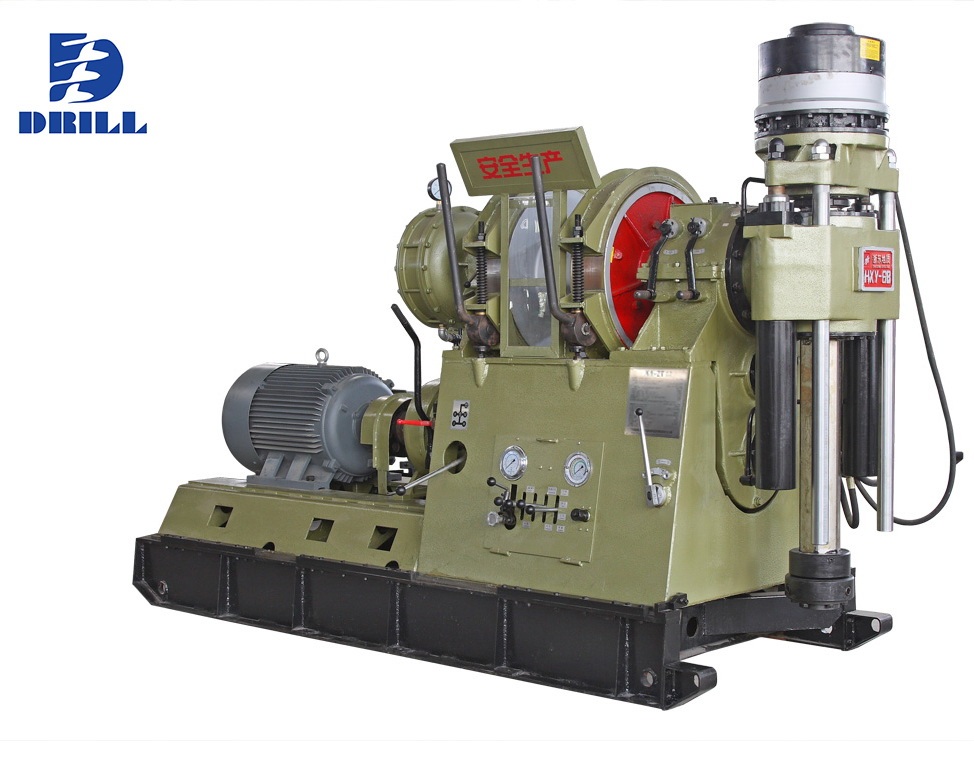

- HXY-6B
- 【краткое】:
Product feature
HXY - 6B core drilling rig is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial zone petroleum and natural gas mining, mines' gallery ventilation and water discharge tunnel drilling as well as large-diameter hole foundation stake drilling.
- 【Серии】:Spindle Core Drilling Rig
HXY-6B Drilling Rig Parameters | |
Drilling Depth | 1200m-2400m |
Hole Angle | 90°-70° |
Spindle Speed | Positive 96, 178, 253, 369, 268, 494, 705, 1025rpm |
Negative 78, 218rpm | |
Maximum Torque | 7800N·m |
Spindle Stroke | 720mm |
Vertical Shaft Diameter | Φ118mm |
Maximum Lifting Force | 200KN |
Max. Pressure | 150KN |
Maximum Hoist Capacity | 85KN |
Diameter of Wire Rope | 21.5mm |
Drum Rope Capacity | 160m |
Power of Engine | Electric Motor Y280S-4 (75KW / 1480rpm) |
Diesel Engine YC6108ZD (84KW / 1500rpm) | |
Dimension (L×W×H) | 3590×1300×2350mm (Electric Motor) |
3790×1300×2350mm (Diesel Engine) | |
Weight (Without Power) | 4700Kg |
