- FDP-45
- 【Breve】：Product feature

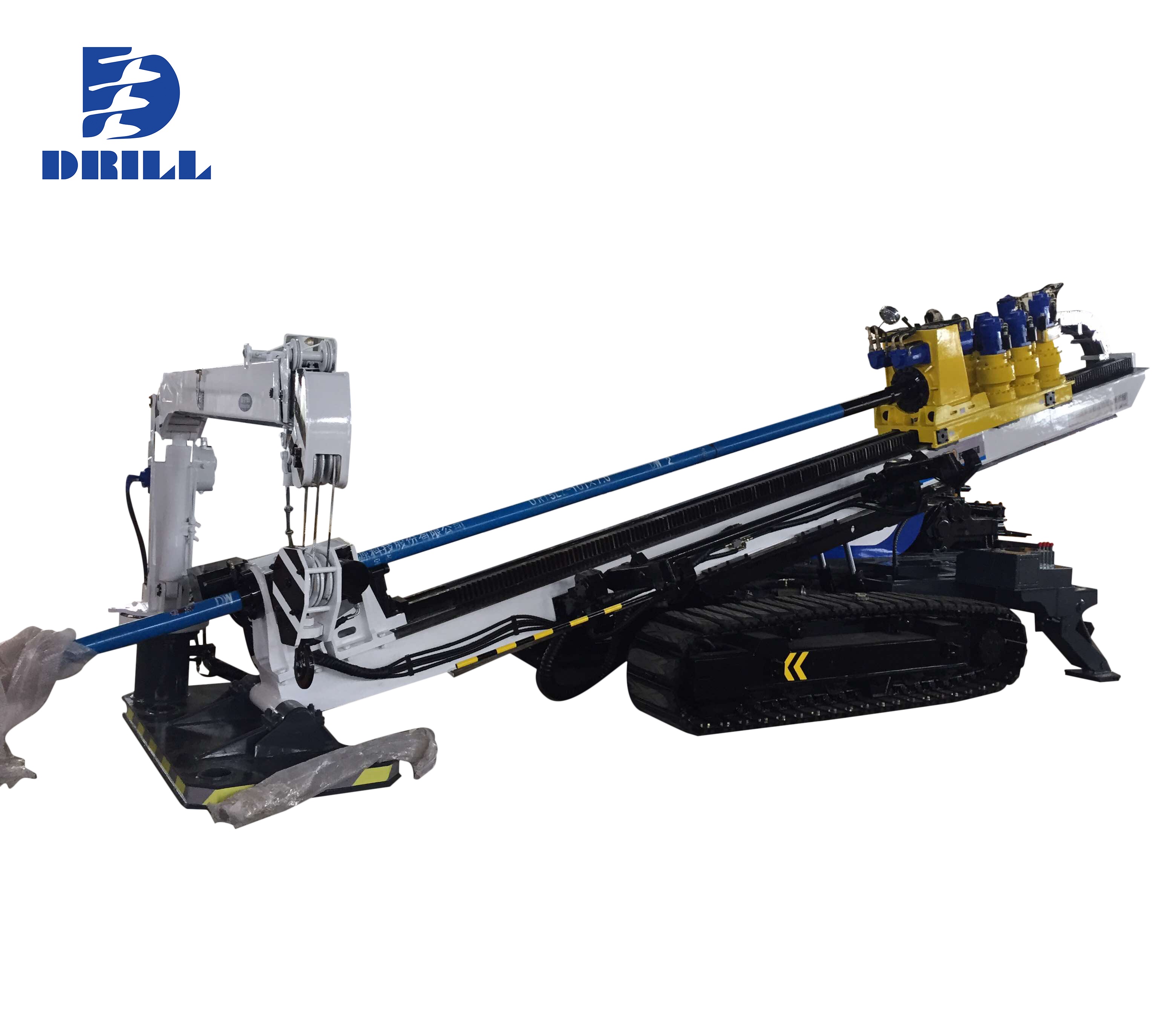

FDP-45 Horizontal Directional Drilling Rig is a full hydraulic crawler rig. Advanced structure simple, easy to control, power head with rack and pinion drive. The main hydraulic components are brand-name products supporting. Machine center of gravity is low, good stability, handsome in appearance. Diesel low-emission, professional noise reduction design, more suitable for urban construction. - 【Series】：Horizontal Directional Drilling Rig
| FDP-45 Horizontal Directional Drilling Rig Parameters | |
| Diesel Engine Power | Cummins 6CTA8.3-C260 (194KW/2200rpm) |
| Rated Torque | 18000N·M |
| Max.Pullback Force | 450KN |
| Max.Thrust Force | 450KN |
| Spindle Rotary Speed | 0-48, 0-96rpm |
| Feed Stroke | 3500mm |
| Pullback/Thrust Capacity | Rack and Pinion Type |
| Gear Ⅰ 6m/min | |
| Gear Ⅱ 12m/min | |
| Gear Ⅲ 35m/min | |
| Diameter of Guide Hole | Ф170mm |
| Entry Drill Angle | 8-18° |
| Pressure of Hydraulic System | 20MPa |
| Traveling Speed | 1.5-3km/h |
| Structural Style | Integral with Steel Crawler Plus Rubber Strip and Mud Pump |
| Max. Flow Rate of Mud Pump | 450L/min |
| Max. Pressure of Mud Pump | 8MPa |
| Drill Rod (Dia.× Length) | Φ83×3000mm |
| Guide Bit | Ф170mm |
| Reamer | Ф300, Ф400, Ф500, Ф600, Ф700, Ф800, Ф900 |
| Dimension (L×W×H) | 7200×2300×2450 mm |
| Weight | 11000kg |
