- HXY-42T
- 【Breve】：
Product feature

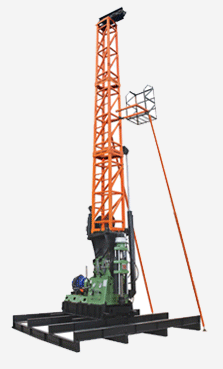

1. The HXY-42T core drilling rig is integrated with main machine and drill tower. It has compact structure and reasonable layout.
2. Owing to its light weight and easy-disassembly, it is easy to maintain and repaired.
3. The double-action hydraulic chuck guarantees powerful clamping force.
4. The drilling rig possessed high drilling speed because of its smooth movement and low centre of gravity.
5. Equipped with the measuring scale, the drilling rig can master the dynamic condition at the bottom of the hole, this improves the safety and reliability of drilling.
6. The tower can be adjusted in clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle hole.
- 【Series】：Spindle Core Drilling Rig
| HXY-42T Drilling Rig Parameters | ||
| Drilling Depth | 700—1100 m | |
| Drill Angle | 45-90° | |
| Spindle Speed | Positive | 82, 151, 215, 313, 251, 463, 661, 961 rpm |
| Negative | 67, 205 rpm | |
| Max. Torque | 3200 N·m | |
| Spindle Stroke | 600 mm | |
| I.D of Spindle | 93 mm | |
| Max. Lifting Capacity of Spindle | 80 KN | |
| Max. Pressure Force of Spindle | 60 KN | |
| Dia. Of Steel Wire | 16 mm | |
| Winding Drum Capacity | 90 m | |
| Max. Hoisting Force | 30 KN | |
| Electric Motor Power Unit | Y200L-4 (30KW / 1480rpm) | |
| Drill Tower Height | 10 m | |
| The Number of Pulleys | 5 or 3 pcs | |
| Max. Load of Mast | 100 KN | |
| The Nominal Area of Base | 4000×4000 mm | |
| The Load of Movable Work Platform | 800 N | |
| Weight | 4000 kg | |
