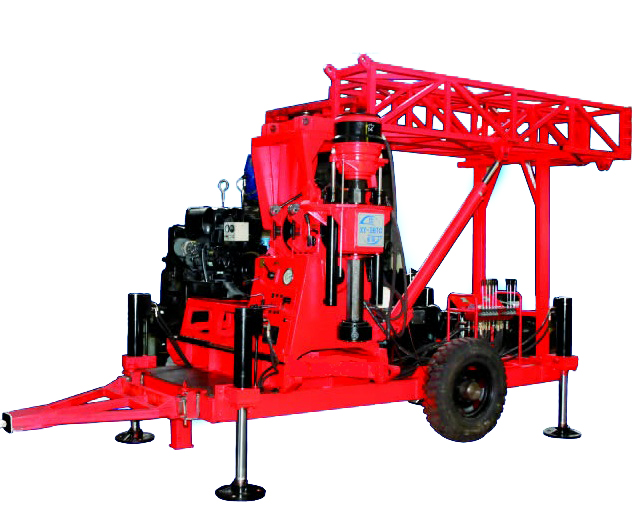

- XY-2BTC
- 【Breve】：
Product Feature
XY-2BTC drilling rig is a kind of medium shallow hole core drilling machine. The utility model has the advantages of small size, light weight, large power and wide range. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc.
- 【Series】：Spindle Core Drilling Rig
| XY-2BTC Drilling Rig Parameters | |||||
| Drilling Capacity | Φ73 Drill Rod | 100 m | |||
| Φ60 Drill Rod | 200 m | ||||
| Φ50 Drill Rod | 380 m | ||||
| Φ42 Drill Rod | 530 m | ||||
| Spindle Speed | Forward | 57; 99; 157; 217; 270; 470; 742; 1024 r/min | |||
| Reverse | 45; 212 r/min | ||||
| Max Torque | 3200 N·m | ||||
| Spindle Max Pull Force | 60 KN | ||||
| Spindle Stroke | 540 mm | ||||
| Hoist Max Lift Capacity with Single Rope | 30 KN | ||||
| Spindle Inner Dia. | 96 mm | ||||
| The Nominal Area of Base | 8m | ||||
| Drilling crane hook lifting load | 29.4KN | ||||
| Adjusted Angles of Drill Tower | 45°-90° | ||||
| Oil Pump | CBK1020/8 twin-gear pump | ||||
| Power Unit | Diesel Engine | F4L192 (35KW/1500rpm) | |||
| Dimensions (L×W×H) | 4500×2100×2950 mm | ||||
| Weight (without power unit) | 1200 kg | ||||
