- XY-1A
- 【Breve】：
Product Feature

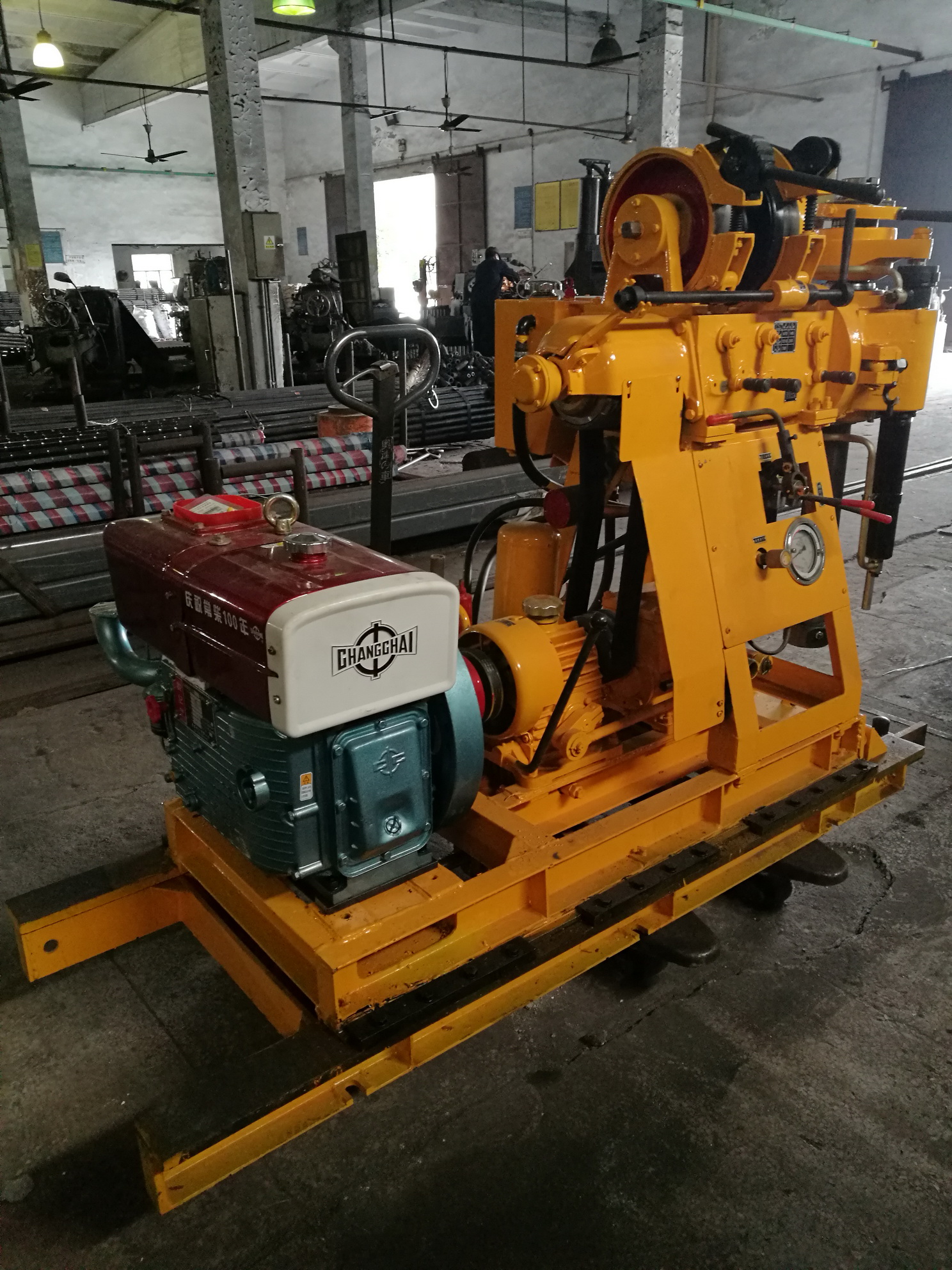

XY-1A Core Drilling Rig is a light type machine at high speed with hydraulic feeding. XY-1A(YJ) , XY-1A-4 and XY-1A-4(YJ) are designed on the basic of XY-1A.
◇ With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
◇ The rig is equipped with an upper spherical jaw holding mechanism and hexagonal kelly which can be replaced without shutdown, high efficiency, safe and reliable.
◇ A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
◇ Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
- 【Series】：Spindle Core Drilling Rig
|
XY-1A Core Drilling Rig Parameters |
|||
|
Content |
Parameter |
Content |
Parameter |
|
Drill |
Hoist |
||
|
Drilling depth |
100, 180m |
Max. Lifting Capacity (single rope) |
15KN |
|
Initial hole dia. |
150mm |
Lifting Rotating Speed |
36, 76, 121r/min |
|
Final hole dia. |
75, 46mm |
Hoisting Drum Linear Velocity (2 Levels) |
10, 20, 44, 88m/min |
|
Drill rod dia. |
42, 43mm |
Drum Dia. |
140mm |
|
Angle range |
90º～75º |
Wire Rope Dia. |
9.3mm |
|
Dimensions (L×W×H) |
1620×970×1560(mm) |
Wire Rope Capability |
35m |
|
Weight (Without Power Unit) |
620kg |
Brake Dia. |
252mm |
|
Stroke |
350mm |
Brake Belt Width |
50mm |
|
Swivel Head |
Oil Pump |
||
|
Spindle Speed(5-Speed) |
140, 295, 470, 790, 1010 (r/min) |
Model |
YBC-12/125 |
|
Spindle Stroke |
450mm |
Rated Presure |
12.5MPa |
|
Spindle Pull-down max. |
15KN |
Displacement |
8ml/r |
|
Spindle Lifting Capacity max. |
25KN |
Rated Speed |
800～2500r/min |
|
Upward Displacement Speed of Idling Vertical Spindle |
3m/min |
Power (Diesel Engine or Motor) |
|
|
Downward Displacement Speed of Idling Vertical Spindle |
4m/min |
Model (Diesel Engine) |
ZS1100 |
|
|
Rated Power |
12.1KW |
|
|
|
|
Rated Speed |
2200r/min |
|
|
|
Model (Motor) |
Y160M-4 |
|
|
|
Rated Power |
11KW |
|
|
|
Rated Speed |
1460r/min |
