PRODUTOSLocalização atual :CASA > PRODUTOS > Spindle Core Drilling Rig

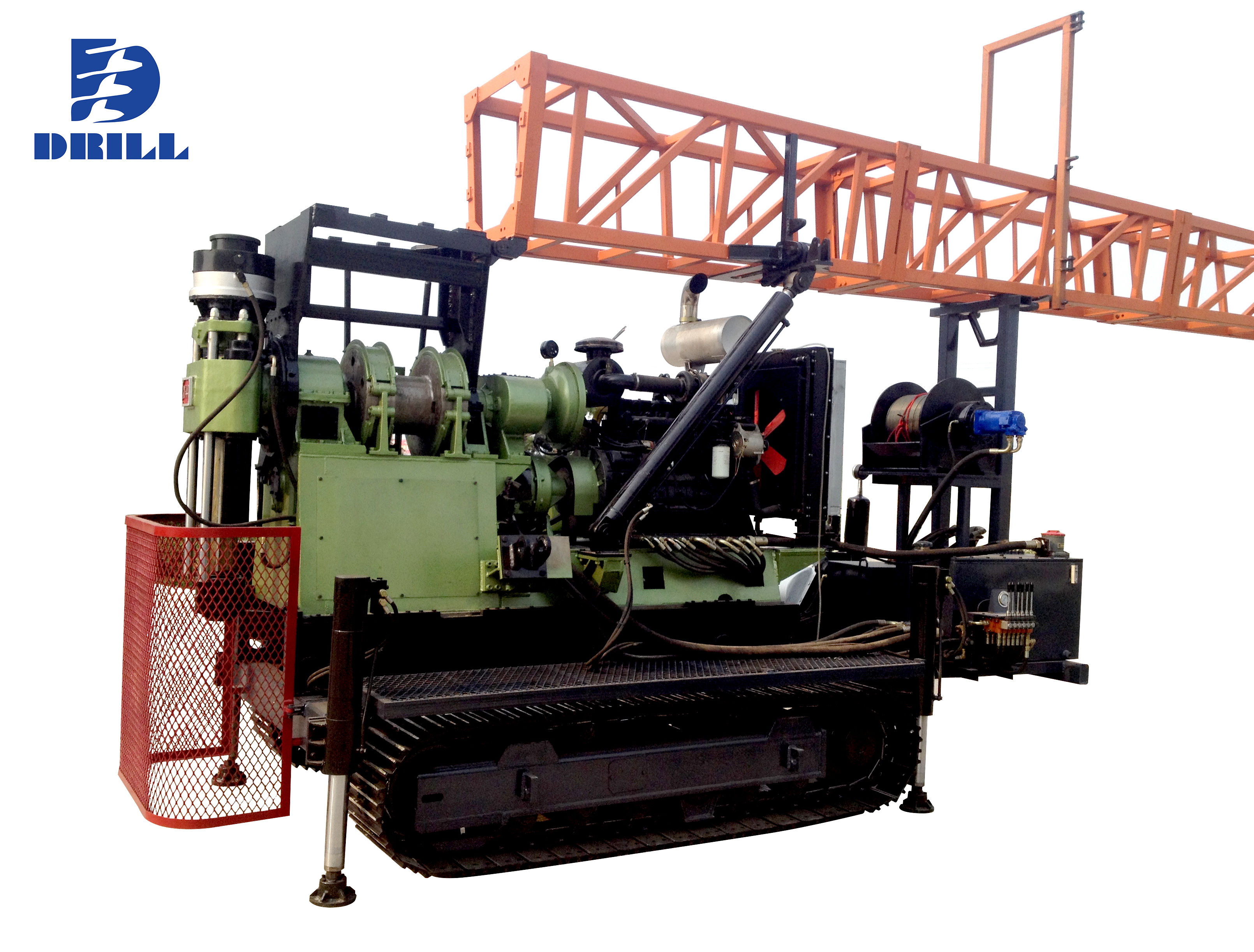

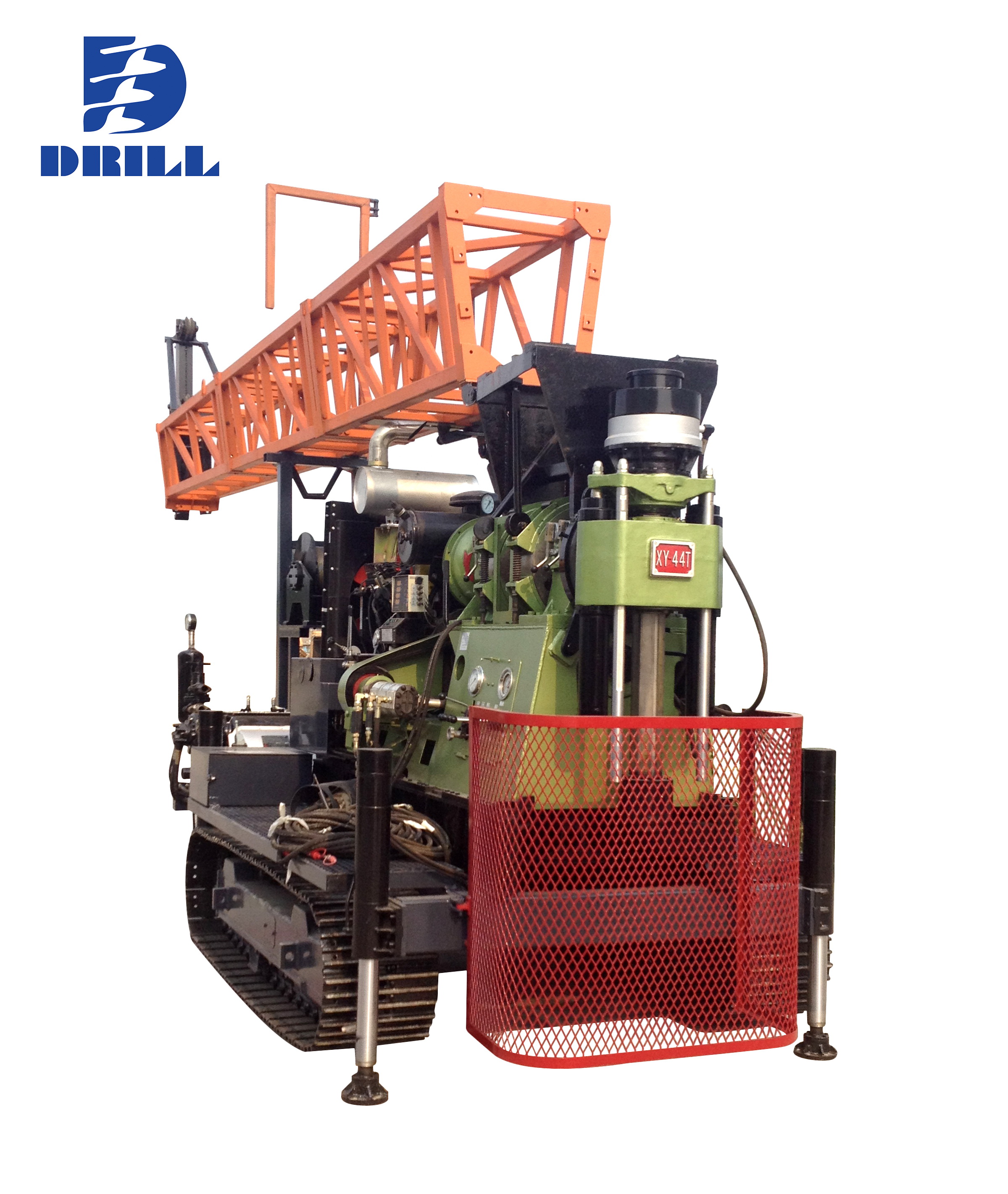

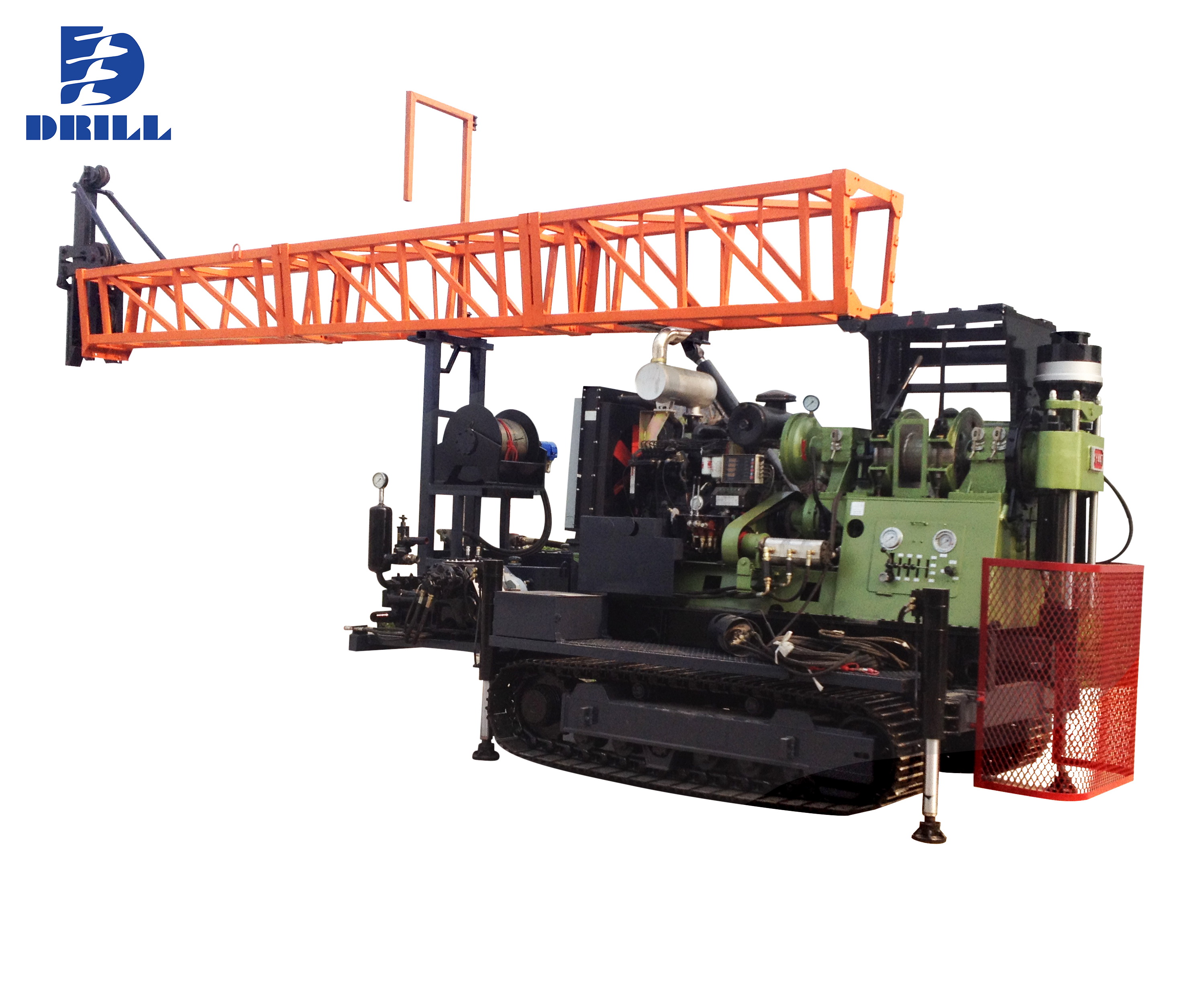

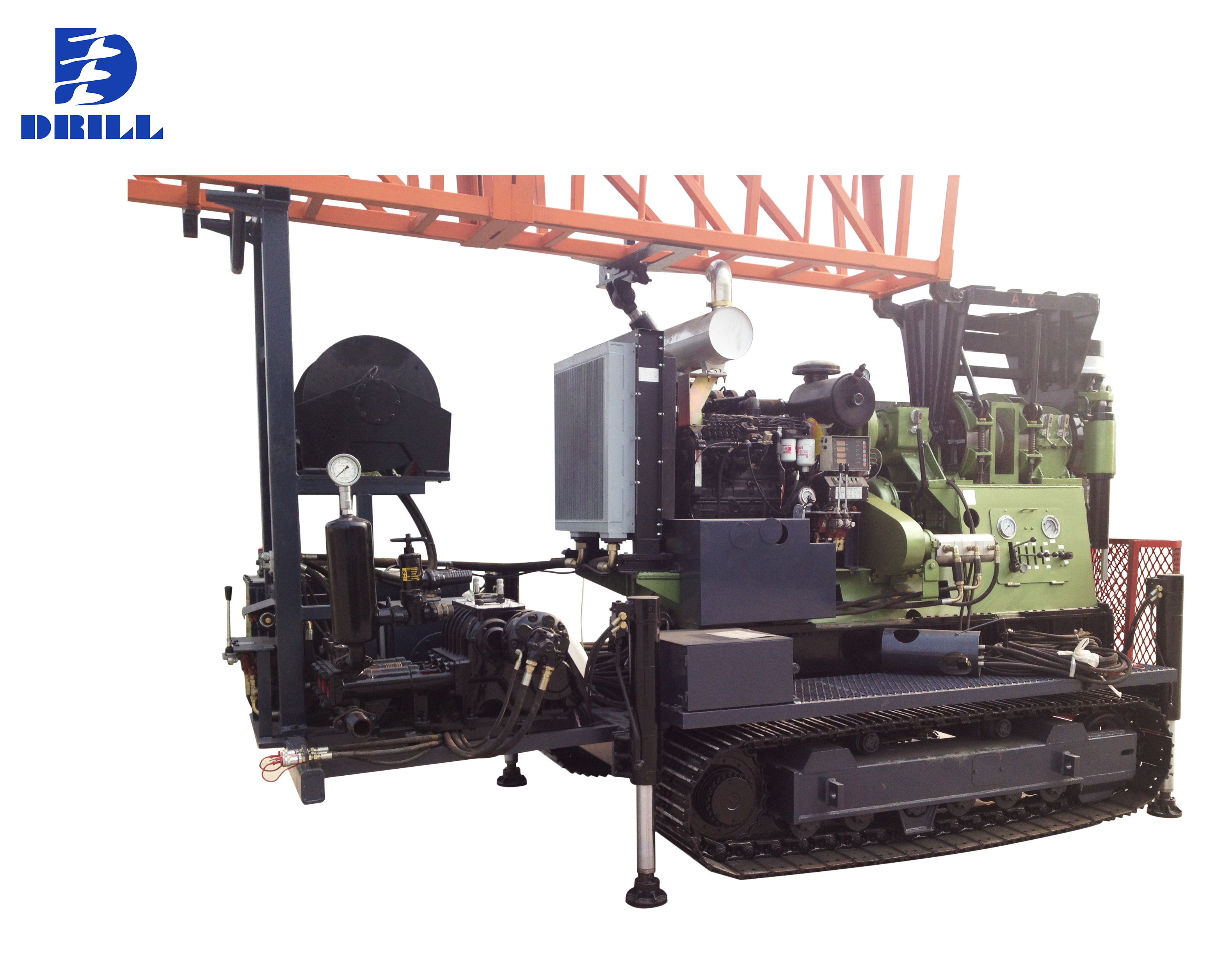

HXY-44TL
【Breve】:

Product feature

1. It is the product of the perfect intergration of full-hydraulic system with traditional mechanical drill technology.

2. Equipped with anxiliaryhydraulic hoister and hydraulic mud pump, it is convenient for installation. With its compact structure, it is also convenient for operation.

3. Installed with hydraulic lifting drill tower, it is flexible in operation.

4. With 4 hydraulic outriggers, it is stable in operation.

5. Equipped with crawler, the rig offers flexibility and easy mobility between worksites.



【Series】:Spindle Core Drilling Rig
HXY-44TL Drilling Rig Parameters
Drilling Depth 700—1400 m
Drill Angle 45-90°
Spindle Speed Positive 83, 152, 217, 316, 254, 468, 667, 970 rpm
Negative 67, 206 rpm
Max. Torque 3800 N·m
Spindle Stroke 600 mm
I.D of Spindle 93 mm
Max. Lifting Capacity of Spindle 120 KN
Max. Pressure Force of Spindle 90 KN
Dia. Of Steel Wire 17.5 mm
Winding Drum Capacity 110 m
Max. Hoisting Force 45 KN
Drill Tower Height 10 m
Diesel Engine Power Unit Cummins 6BT5.9-C130 (97KW / 2200rpm)
Mud Pump 250 L/min
Mixer (Optional) Y2-16-0
Auxiliary Hoister 12 KN
Max. Load of Mast 100 KN
Moving Speed 1.5 km/h
Climbing Capacity 30°
Dimensions (L×W×H) 4785×2220×10524 mm
Weight 10000 kg
