PRODUCTSCurrent location :HOME > PRODUCTS > Underground Drilling Rig

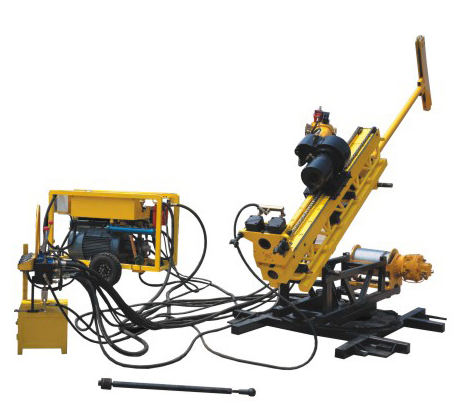

XZKD95-3
【Brief】:Product feature
XZKD series full hydraulic underground core drilling rig is suitable for drilling holes for the purpose of mine exploring, also could be used in surface coring, railway engineering, tunneling, construction and water conservancy project. Advanced technology and reliable performance will bring you high efficiency.
1. Oil pump drive the motor to rotate, hydraulic cylinder working without turret.
2. The hydraulic drive of the rotary, feed, pumping and clampin working systems of the drilling rig is stable and reliable.
3. Drilling speed is fast, drilling can be achieved at any angle, the best applicability.
4. V-shaped guide rail, good spindle stability.
5. Easy to maintenance, repair, disassembly, installation and movement.
【Series】:Underground Drilling Rig
XZKD95-3 Full Hydraulic Underground Drilling Rig Parameters
Rated Rotational Torque 1050Nm
Rotational Speed 280-1200rpm
Max. Thrust Force 65KN
Max. Pulling Force 85KN
Drilling Depth BQ Drill Rod Upward: 350m, Horizontal: 600m, Downward: 700m
NQ Drill Rod Upward: 300m, Horizontal: 500m, Downward: 600m
HQ Drill Rod Upward: 250m, Horizontal: 350m, Downward: 400m
Hydraulic System Working Pressure 20MPa
Max. Pressure 25MPa
Main Pump Max. Pressure 31.5MPa
Auxiliary Pump Max. Pressure 25MPa
Power Head Stroke 1600mm
Surface Drilling Angle 0-90°
Underground Drilling Angle 0-360°
Azimuth Angle 0-360°
Motor Power 75KW/1480rpm
Machine Body Dimensions 2620×600×750mm
Weight 1335kg
Power Unit Dimensions 1770×1000×1420mm
Weight 1080kg
Control Pannel Dimensions 700×400×1100mm
Weight 80kg
