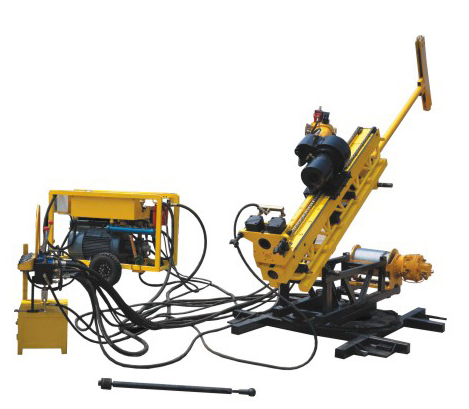

- XZKD95-2
- 【Brief】：Product feature
XZKD series full hydraulic underground core drilling rig is suitable for drilling holes for the purpose of mine exploring, also could be used in surface coring, railway engineering, tunneling, construction and water conservancy project. Advanced technology and reliable performance will bring you high efficiency.
1. Oil pump drive the motor to rotate, hydraulic cylinder working without turret.
2. The hydraulic drive of the rotary, feed, pumping and clampin working systems of the drilling rig is stable and reliable.
3. Drilling speed is fast, drilling can be achieved at any angle, the best applicability.
4. V-shaped guide rail, good spindle stability.
5. Easy to maintenance, repair, disassembly, installation and movement. - 【Series】：Underground Drilling Rig
| XZKD95-2 Full Hydraulic Underground Drilling Rig Parameters | ||
| Rated Rotational Torque | 910Nm | |
| Rotational Speed | 280-1200rpm | |
| Max. Thrust Force | 65KN | |
| Max. Pulling Force | 85KN | |
| Drilling Depth | BQ Drill Rod | Upward: 300m, Horizontal: 500m, Downward: 550m |
| NQ Drill Rod | Upward: 250m, Horizontal: 400m, Downward: 450m | |
| HQ Drill Rod | Upward: 200m, Horizontal: 300m, Downward: 350m | |
| Hydraulic System Working Pressure | 20MPa | |
| Max. Pressure | 25MPa | |
| Main Pump Max. Pressure | 31.5MPa | |
| Auxiliary Pump Max. Pressure | 25MPa | |
| Power Head Stroke | 1600mm | |
| Surface Drilling Angle | 0-90° | |
| Underground Drilling Angle | 0-360° | |
| Azimuth Angle | 0-360° | |
| Motor Power | 55KW/1480rpm | |
| Machine Body | Dimensions | 2620×600×750mm |
| Weight | 1335kg | |
| Power Unit | Dimensions | 1770×1000×1420mm |
| Weight | 880kg | |
| Control Pannel | Dimensions | 700×400×1100mm |
| Weight | 80kg | |
