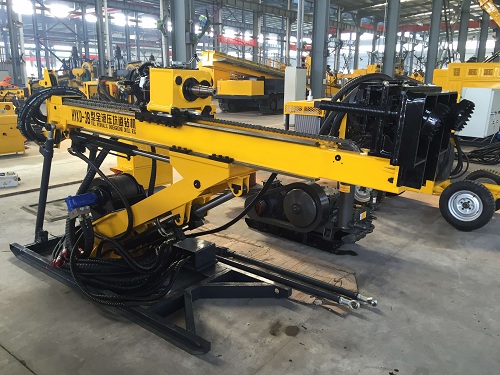

- HYKD-5A
- 【Brief】：
Product feature
The drilling rig is mainly suitable for coal, geological, metallurgical, engineering and other industries. Used in mines, tunnels, the coal mine gas drainage by large diameter gas holes, water injection hole and surface engineering of large diameter horizontal drilling construction.
- 【Series】：Underground Drilling Rig
| HYKD-5A Drilling Rig Parameters | ||
| Electric Motors | Rated Power | 75KW |
| Rated Speed | 1480rpm | |
| Drilling Depth | BQ | 900m |
| NQ | 750m | |
| HQ | 500m | |
| Power Head Ability | Rotary Speed | 0-1200rpm |
| Rotary Torque | 1600N·m | |
| Lifting Force/ Feed Force (Chain) | 140KN / 70KN | |
| Lifting Force/ Feed Force (Cylinder Driving Directly) | 90KN / 90KN | |
| Feeding Stroke | 1800mm | |
| Drilling Angle | 0-360° | |
| Hydraulic System Working Pressure | 32MPa | |
| Wire Line Winch Capacity | Hoisting Force (Single Rope) | 12KN |
| Diameter of Wire Line | 6mm | |
| Host Machine | Dimensions (L×W×H) | 4220×1020×1920mm |
| Weight | 2220kg | |
| Power Unit | Dimensions (L×W×H) | 2125×1140×1290mm |
| Weight | 1200kg | |
| Control Cabinet | Dimensions (L×W×H) | 960×550×1050mm |
| Weight | 130kg | |
