HTW-100C
【Brief】:

    Product feature

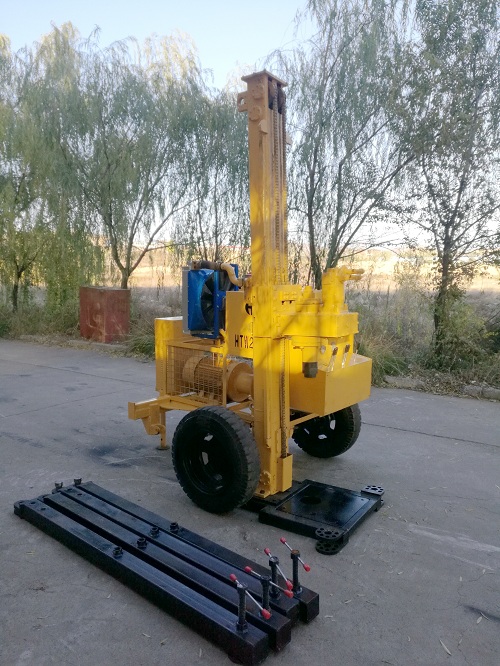

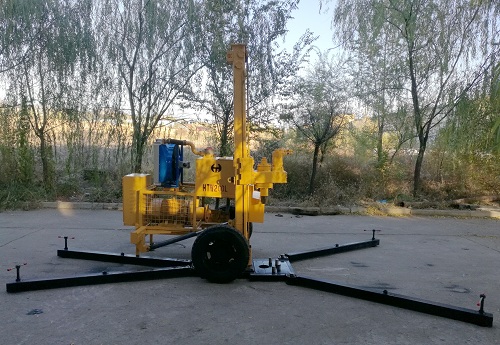

    HTW-100C mud-air dual-purpose portable water well drilling rig is a new type, efficient and multi-functional drilling machine, the unique dual-use structure of water and air is an ideal drilling rig for more complex formation. The flexible design structure of the drill can be used for indoor, courtyard and narrow site drilling.

1. Optional motor or diesel engine power, can be equipped with micro crawler drill frame, traction wheel power station, light vehicle drill frame.

2. Drill frame can be used for indoor, yard and narrow site construction, and the power station can be placed outside the yard.

3. Equipped with different drilling tools can be completed well, anchorage, rotary jet, trenchiess, micro-pile and other projects.

4. The operation table can be arranged according to the site space, with strong applicability for operation.

5. The drill frame two people portable movement, easy move at the work site.

6. Mature and reliable drilling hydraulic system, improve drilling efficiency.

7. The drill is equipped with emergency stop button, driving safety warning light and emergency fire extinguisher at the four corners to ensure the safety of operation.

8. Equipped with mud pump, air compressor, can complete mud, air positive and negative circulation drilling process.



【Series】:Water Well Drilling Rig
HTW-100C Portable Water Well Drilling Rig Parameters
Engine Power 22KW
Drilling Diameter of Soil Layer Φ100-300
Drilling Depth of Soil Layer 20m
Drilling Diameter of Pebble Φ100-200
Drilling Depth of Pebble 20m
Drilling Diameter of Rock Φ100-250
Drilling Depth of Rock 100m
Trenchless Pipe Diameter Φ100-500
Trenchless Pipe Length of Soil 200-60m
Anchor Diameter Φ100-300
Anchor Length 30m
Air Pressure 1.05-2.46MPa
Air Consumption 16-30m3/min
Drill Rod Length 1.5m
Drill Rod Diameter Φ89
Feed Force 80KN
Pull Force 80KN
Hydraulic Winch 1KN
Work Feed Speed 0-9.2m/min
Fast Feed Speed 25m/min
Rotary Head Torque 3000Nm
Rotary Speed 0-100rpm
Mud Pump (Optional) 250L/min
Host Weight 1500kg
Power Weight 1200kg
Transport Dimension (L×W×H)  2500×1400×1400mm
