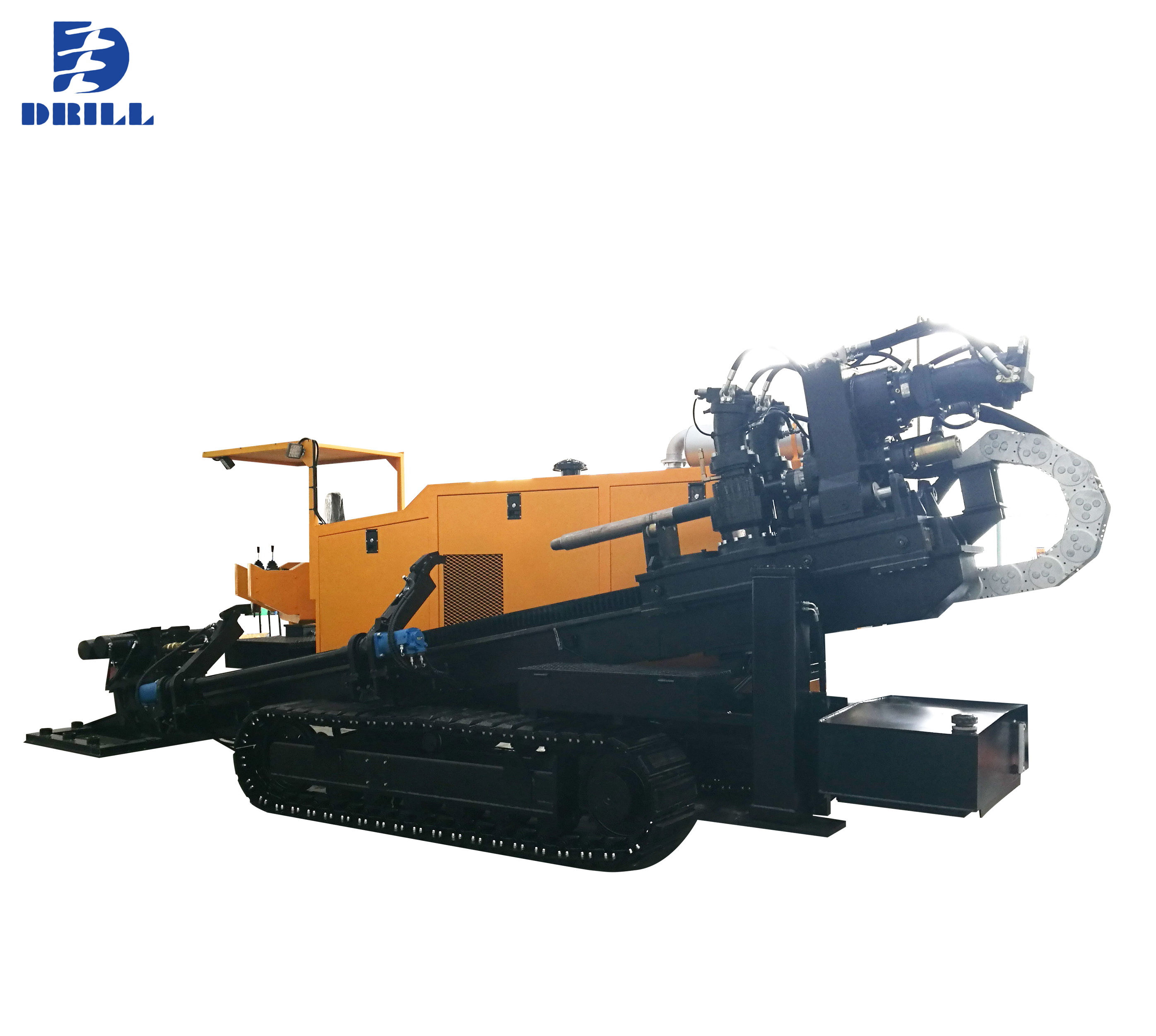

ZT-36
【Brief】:Product feature
ZT-36 is a horizontal directional drilling pipe laying drill steel crawler hydraulic directional drilling. Steel crawler can be equipped with a rubber block, convenient city construction. Equipped with Cummins diesel engine, powerful, reliable performance. With the piston motor drive power head, high speed, large torque. The feeding mechanism is driven by motor chain. The double clamping device screwed and unloaded the drill pipe, and the efficiency is high. Suitable for long distance, large diameter pipe laying engineering.
【Series】:Horizontal Directional Drilling Rig
ZT-36 Horizontal Directional Drilling Rig Parameters
Diesel Engine Power 160KW
Max.Spindle Torque 14000N·m
Max.Pullback Force 360KN
Max.Thrust Force 360KN
Spindle Speed 0-65rpm, 0-105rpm
Entry Drill Angle 8-20°
Max. Mud Flow Rate 320L/min
Max. Fluid Pressure 8MPa
Drill Rod (Dia.× Length) Φ76×3000mm
Diameter of Barrel Reamer Φ300-900mm
Diameter of Winged Reamer
Fluted Channel Reamer
Rig Size (Lx Wx H) 6750mm×2280mm×2500mm
Weight 13000kg
