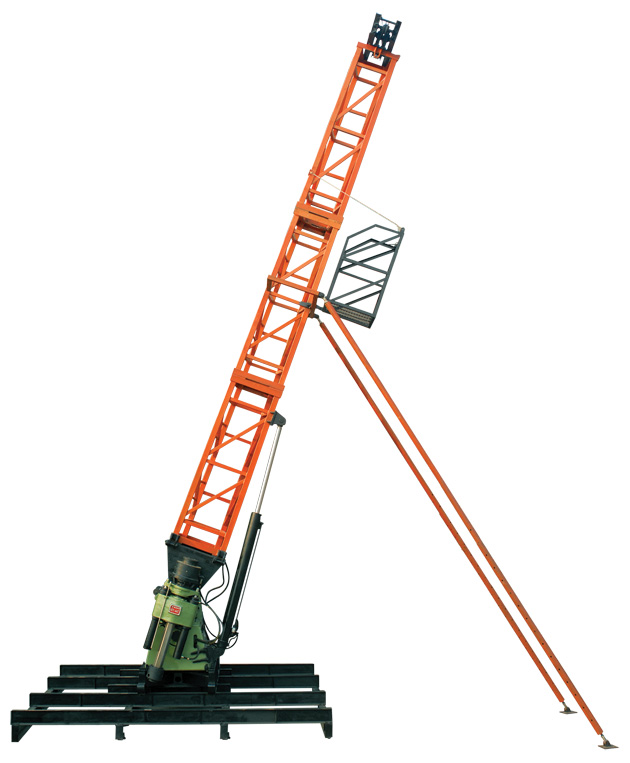

- XY-2BT
- 【Brief】：
Product feature
XY - 2BT drilling rig is a shallow core drilling rig which combined with the main machine and tower. It is suitable for core drilling with alloy and diamond bits, as well as for engineering geological investigation, hydrology, water wells, large caliber engineering drilling and anchor hole construction. Tower of the rig with landing function, adjust the angle of inclined hole drilling rig. It has the characteristics of small size, light weight, large power, wide performance and strong versatility.
- 【Series】：Spindle Core Drilling Rig
| XY-2BT Core Drilling Rig Parameters | ||
| Drilling Capacity | Drill Rod AQ | 560m |
| Drill Rod BQ | 460m | |
| Drill Rod NQ | 350m | |
| Rotation Angle of Spindle | 0-90° | |
| Spindle Speed | Positive | 57, 99, 157, 217, 270, 470, 742, 1024 rpm |
| Negative | 45, 212 rpm | |
| Max. Rotary Tarque of Spindle | 2760N·m | |
| Spindle Stroke | 540mm | |
| I.D of Spindle | 96mm | |
| Oil Pump | SCB32/12 Double Gear Oil Pump | |
| Power | Electric Motor | Y180L-4 (22KW/1470rpm) |
| Diesel Engine | Z4100K2 (30KW/1500rpm) | |
| Max. Lifiting Capacity of Spindle | 60KN | |
| Max. Pressuring Force of Spindle | 45KN | |
| Steel Wire Diameter | 14mm | |
| Content of Winding Drum | 45m | |
| Max. Hoisting Forcce | 30KN | |
| The Height of Tower | 8m | |
| The Tower Crane Load | 29.4KN | |
| Max. Static Load of Crane Beam | 58.8KN | |
| The Number of Pulleys | 2 | |
| The Load of Movable Work Platform | 850N | |
| Adjusted Angles of Drill Tower | 45°－90° | |
| Dimensions (L×W×H) | 2220×900×1800mm | |
| Weight（Without Power Unit） | 1200kg | |
