PRODUCTSCurrent location :HOME > PRODUCTS > Spindle Core Drilling Rig

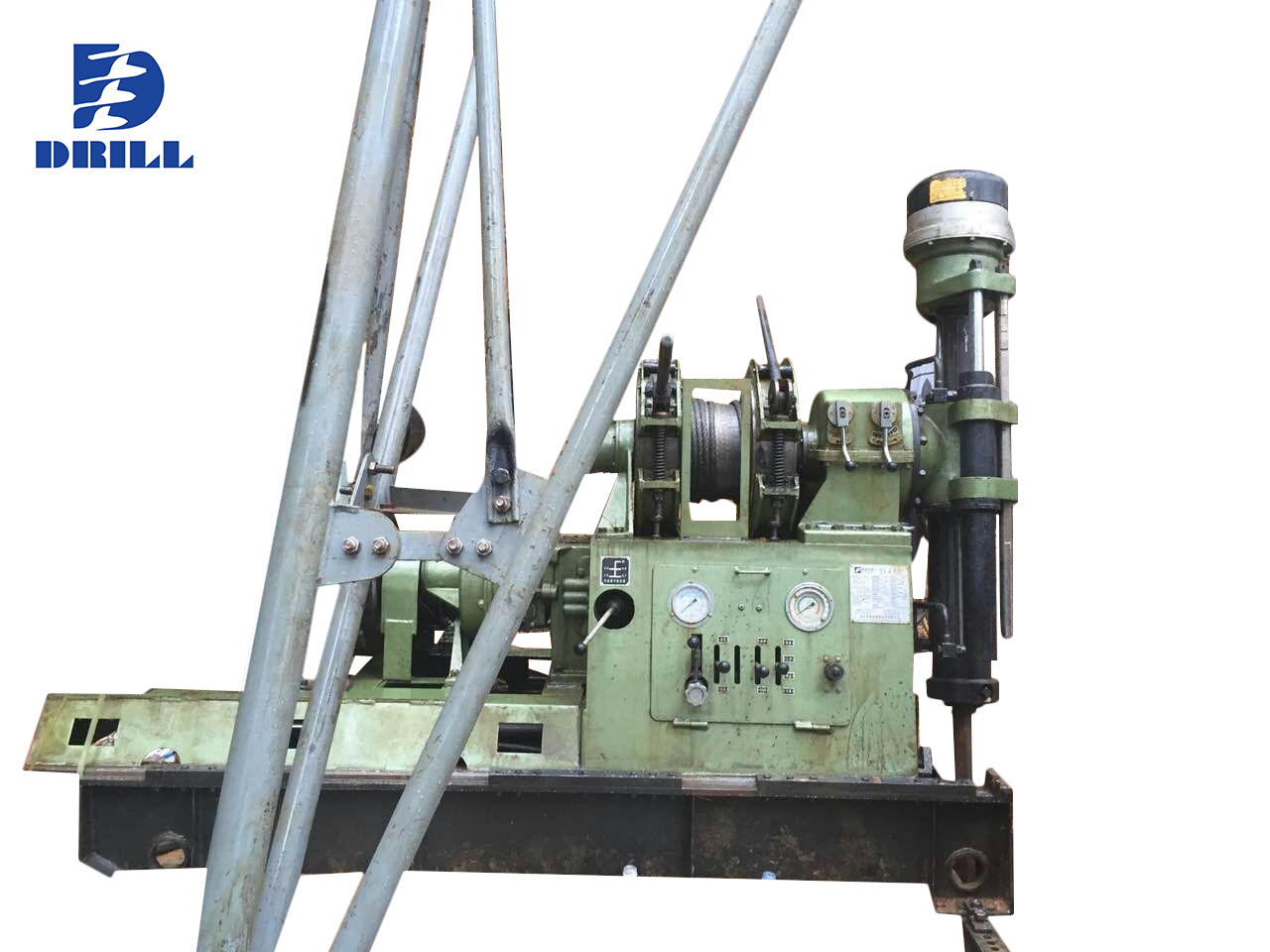

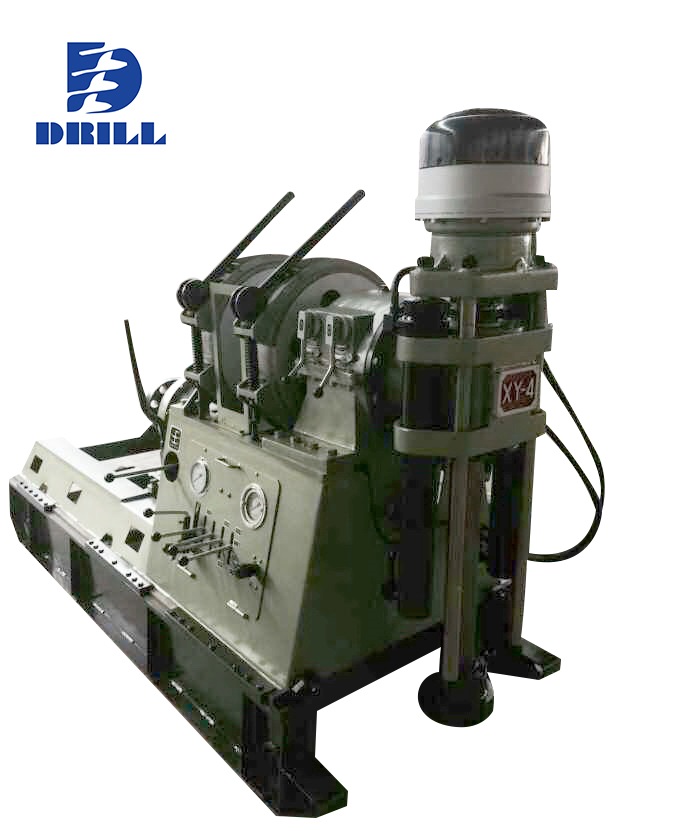

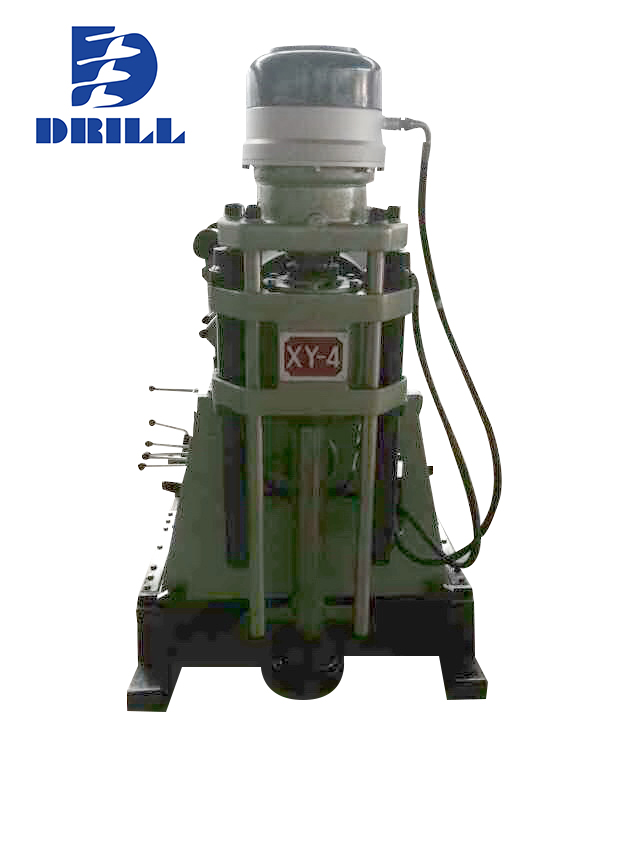

XY-4
【Brief】:

Product feature

XY-4 core drill rig is mainly adapted to suit mineral with diamond bit or tungsten-carbide tipped bit. It can also be used for engineering geology and groundwater exploration and shallow layer oil and natural gas exploitation, even hole for sap ventilation and sap drain. It has compact, simple and suitable construction. It's light, and can be assembled and disassembled conveniently. The appropriate range of rotation speed gives the rig a high drilling efficiency.

【Series】:Spindle Core Drilling Rig
XY-4 Drilling Rig Parameters
Drilling depth                             700m-1000m
Rotation anglc of spindlc              0-360°
Spindlc speed                           101, 187, 267, 388, 311,
574, 819, 1191 rpm (Positive)
83, 251 rpm  (Negative)
Max. rotary tarque of spindle 2640N·m
Spindle stroke 600mm
I.D of spindle 68mm
Power Electric Motor   Model: Y200L-4 (30KW/1480rpm)
Diesel Engine   Model: ZH4100G43 (31KW/1500rpm)
Diesel Engine   Model: R4105G53 (42KW/1500rpm)
Diesel Engine   Model: R4105ZG53 (56KW/1500rpm)
Max. lifiting capacity of spindle                             80kN
Max. pressuringforceofspindle   60kN
Dimensions 2700 ×1100×1750mm
Steel Wire Diameter 16mm
Content of Winding Drum 90m
Max. hoisting forcce 33KN
Retraction cylinder stroke 460mm
Distance between drill and hole 310mm
Weightwithout power unit 1750kg
