- XY-2
- 【Brief】：
Product Feature

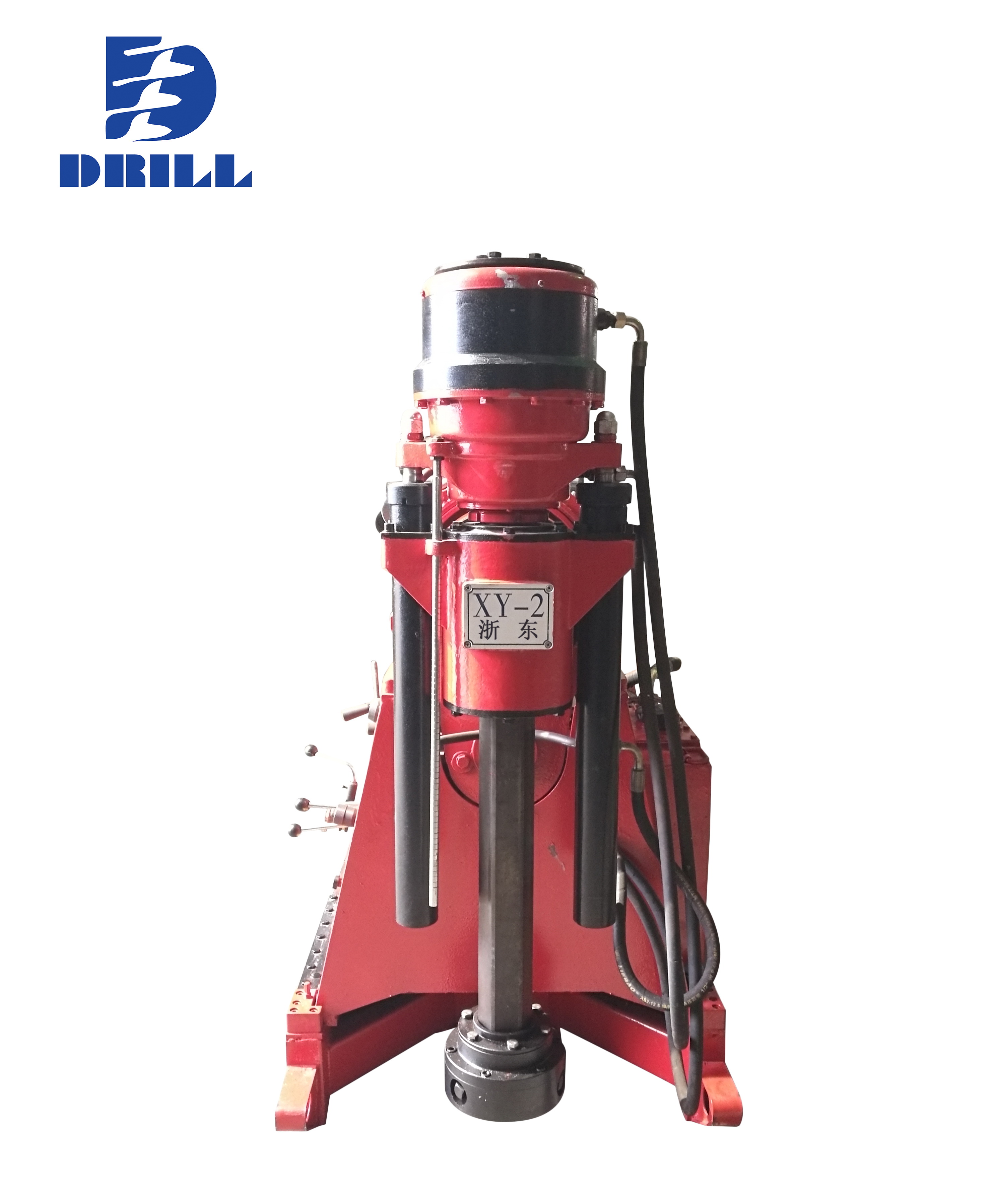

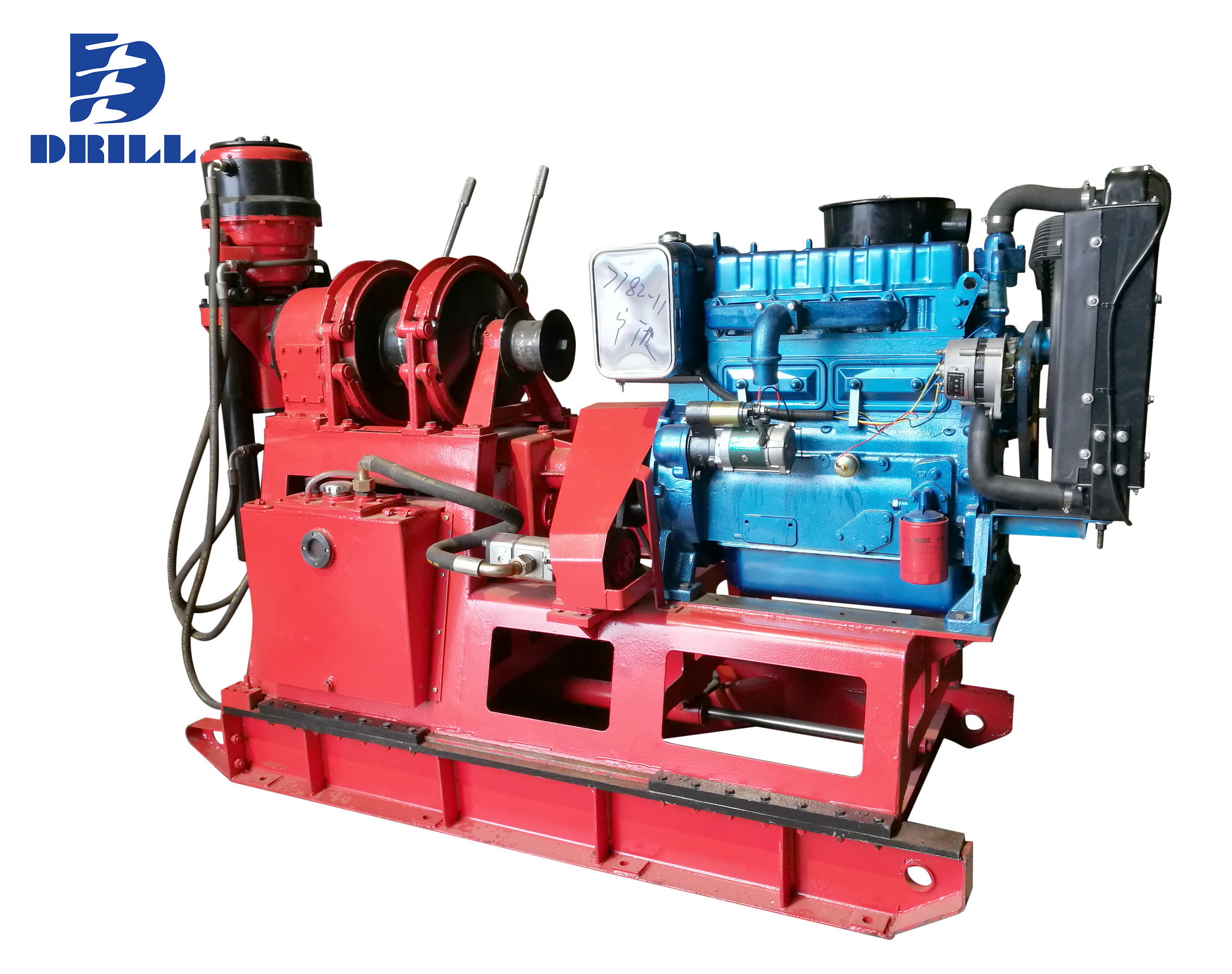

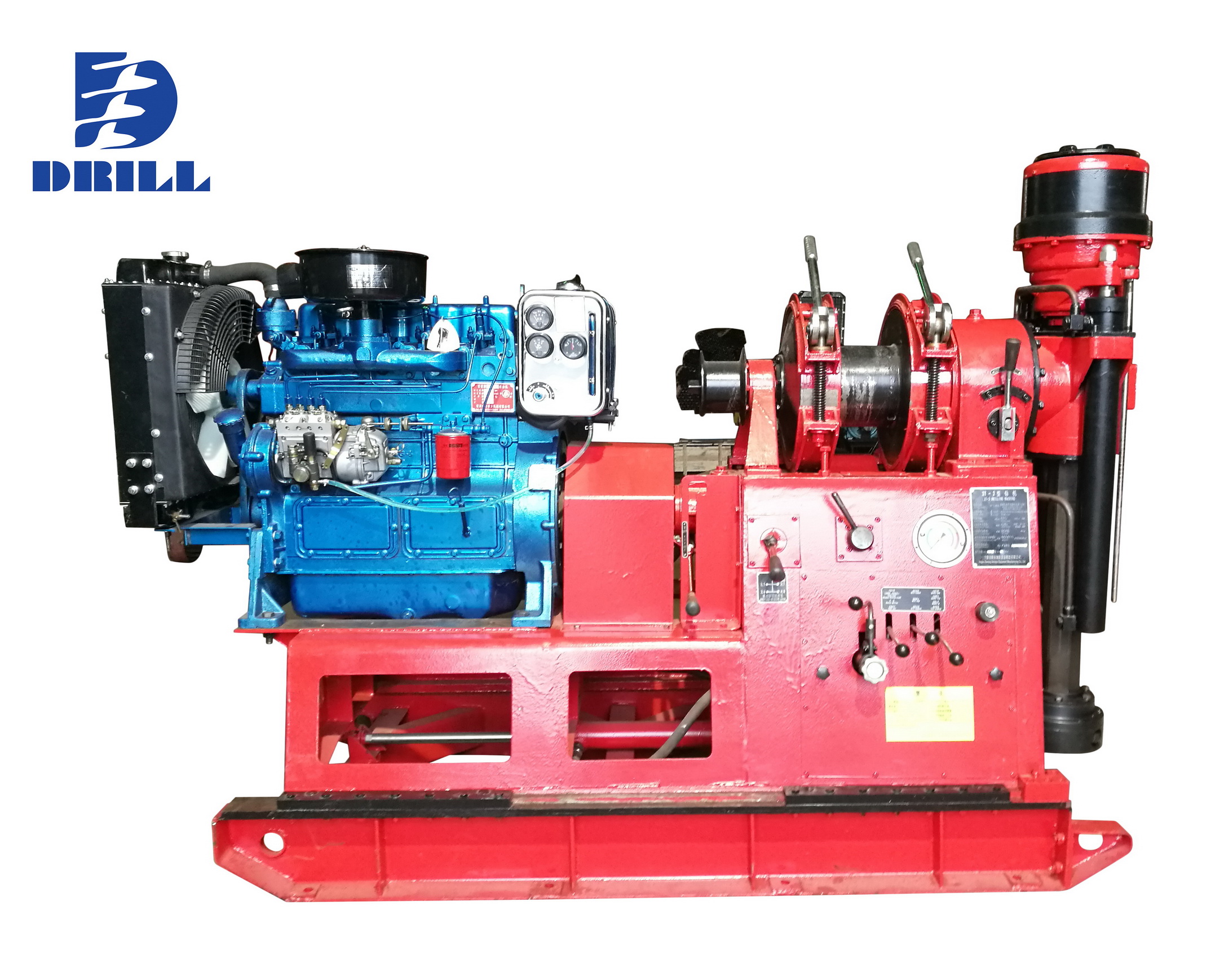

XY-2 Core Drilling Rig is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydrogeological, water well and pile grouting hole drilling.
- 【Series】：Spindle Core Drilling Rig
| XY-2 Core Drilling Rig Parameters | ||
| Drilling Capacity | Drill Rod AQ | 560m |
| Drill Rod BQ | 460m | |
| Drill Rod NQ | 350m | |
| Rotation Angle of Spindle | 0-90° | |
| Spindle Speed | Positive | 65, 114, 180, 248, 310, 538, 849, 1172 rpm |
| Negative | 51, 242 rpm | |
| Max. Rotary Tarque of Spindle | 2760N·m | |
| Spindle Stroke | 600mm | |
| I.D of Spindle | 76mm | |
| Oil Pump | SCB32/12 Double Gear Oil Pump | |
| Power | Electric Motor | Y180L-4 (22KW/1470rpm) |
| Diesel Engine | Z4100K2 (30KW/1500rpm) | |
| Max. Lifiting Capacity of Spindle | 60KN | |
| Max. Pressuring Force of Spindle | 45KN | |
| Dimensions | 2150×900×1690mm | |
| Steel Wire Diameter | 14mm | |
| Content of Winding Drum | 45m | |
| Max. Hoisting Forcce | 30KN | |
| Weight（Without Power Unit） | 950kg | |
