- XY-1
- 【Brief】：
Product Feature

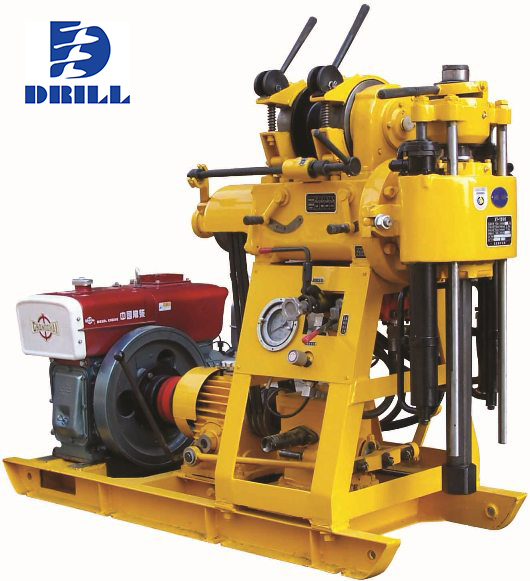

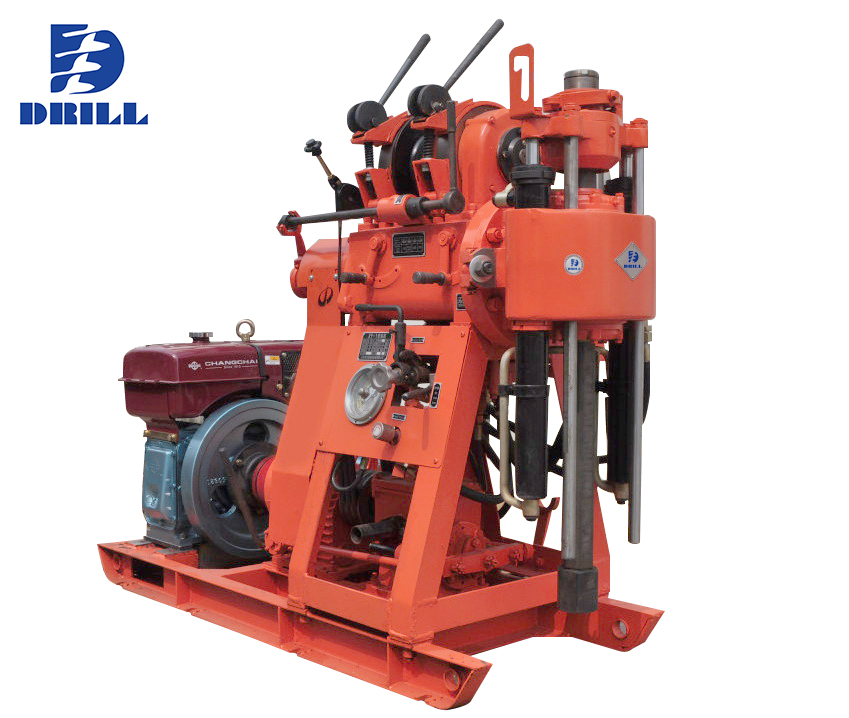

XY-1 core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction surver, blast holes and other drilling operations.
◇ With hydraulic automatic feeding device, elevated drilling efficiency.
◇ The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
◇ Centralized handles, easy operation, safe and reliable.
◇ The drilling rig, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
◇ Light weight, high detachability, easy transportation and suitable for the operations in plains or mountain areas. - 【Series】：Spindle Core Drilling Rig
| XY-1 Core Drilling Rig Parameters | |||||
| Content | Parameter | Content | Parameter | ||
| Drill | Mud Pump | ||||
| Drilling depth | 100m | Model | Horizontal Reciprocating Single-Acting Piston Pump | ||
| Initial hole dia. | 110mm | Displacement Max. | |||
| Final hole dia. | 75mm | Equipped With Diesel Engine | 95L/min | ||
| Drill rod dia. | 42mm | Equipped With Motor | 77L/min | ||
| Angle range | 90º～75º | Allowable Working Pressure Max. | 1.2MPa | ||
| Dimensions (L×W×H) | 1640×1030×1440(mm) | Continunous Working Pressure | 0.7MPa | ||
| Swivel Head | Suction Pipe Dia. | 32mm | |||
| Spindle Speed(3-Speed) | 142, 285, 570 (r/min) | Discharge Pipe Dia. | 25mm | ||
| Spindle Stroke | 450mm | Oil Pump | |||
| Spindle Pull-down max. | 15KN | Model | YBC-12/125 | ||
| Spindle Lifting Capacity max. | 25KN | Rated Presure | 12.5MPa | ||
| Upward Displacement Speed of Idling Vertical Spindle | 3m/min | Displacement | 8ml/r | ||
| Hoist | Rated Speed | 800～2500r/min | |||
| Max. Lifting Capacity (1-speed, single rope) | 10KN | Power (Diesel Engine or Motor) | |||
| Cable Volume (number) of Hoisting Drum | 27m | Model (Diesel Engine) | ZS1100 | ||
| Wire Rope Dia. | 9.3mm | Rated Power | 12.1KW | ||
| Reel Speed | 55, 110, 220 (r/min) | Rated Speed | 2200r/min | ||
| Reel Dia. | 145mm | Model (Motor) | Y132M-4 | ||
| Brake Dia. | 230mm | Rated Power | 7.5KW | ||
| Brake Width | 50mm | Rated Speed | 1440r/min | ||
