- BW850
- 【Bref】:
Product Feature

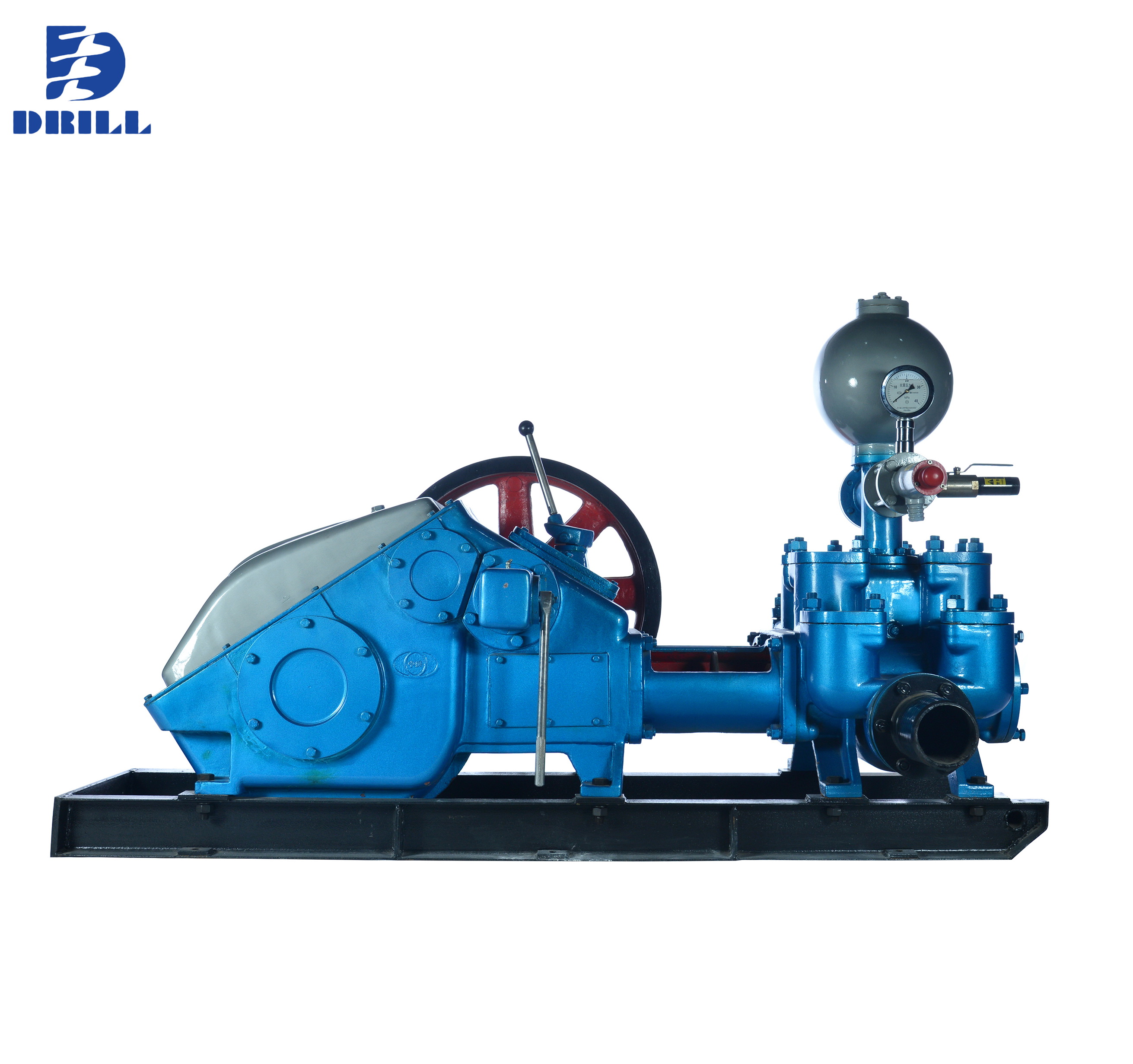

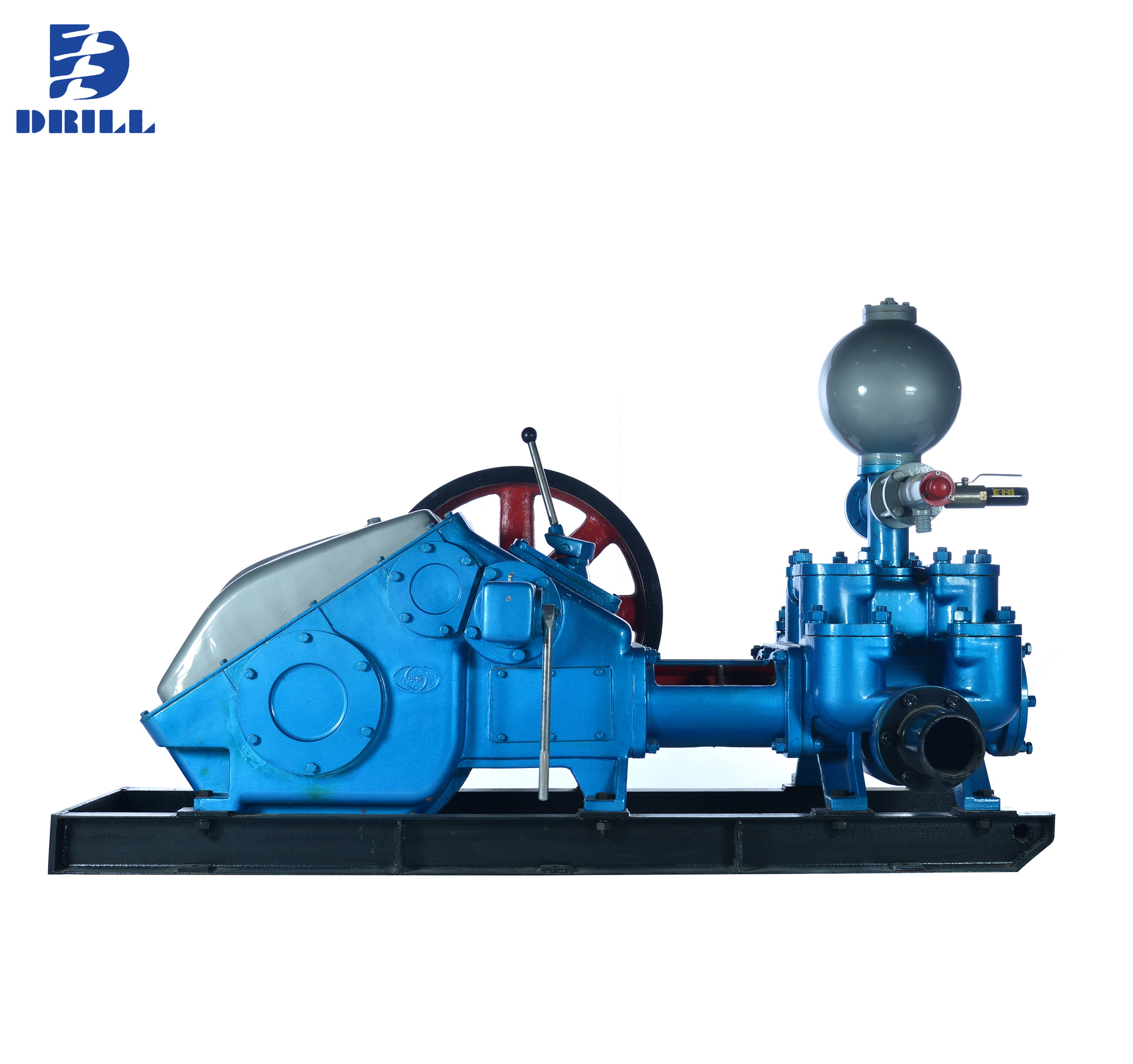

BW850/2 mud pump is a horizontal double cylinder reciprocating double action piston pump. Its structure is simple, compact, variable convenience, light weight, pressure, easy to operate. Used in the hole pressure to send rinse, and supporting 200-600 meters depth of the use of large diameter drill rig.
- 【Séries】:Mud Pump
BW850/2 Mud Pump Parameters | |||||
Type | Horizontal double cylinder reciprocating double action piston pump | ||||
Stroke (mm) | 180 | ||||
Cylinder diameter (mm) | 150 | ||||
Pump speed (min-1) | 82 | 58 | |||
Flow (L/min) | 850 | 600 | |||
Pressure (MPa) | 2 | 3 | |||
Power (KW) | 37 | ||||
Shape size (mm) (L×W×H) | 2000×1030×1400 | ||||
Weight (kg) | 1500 |
