- BW600
- 【Bref】:
Product Feature

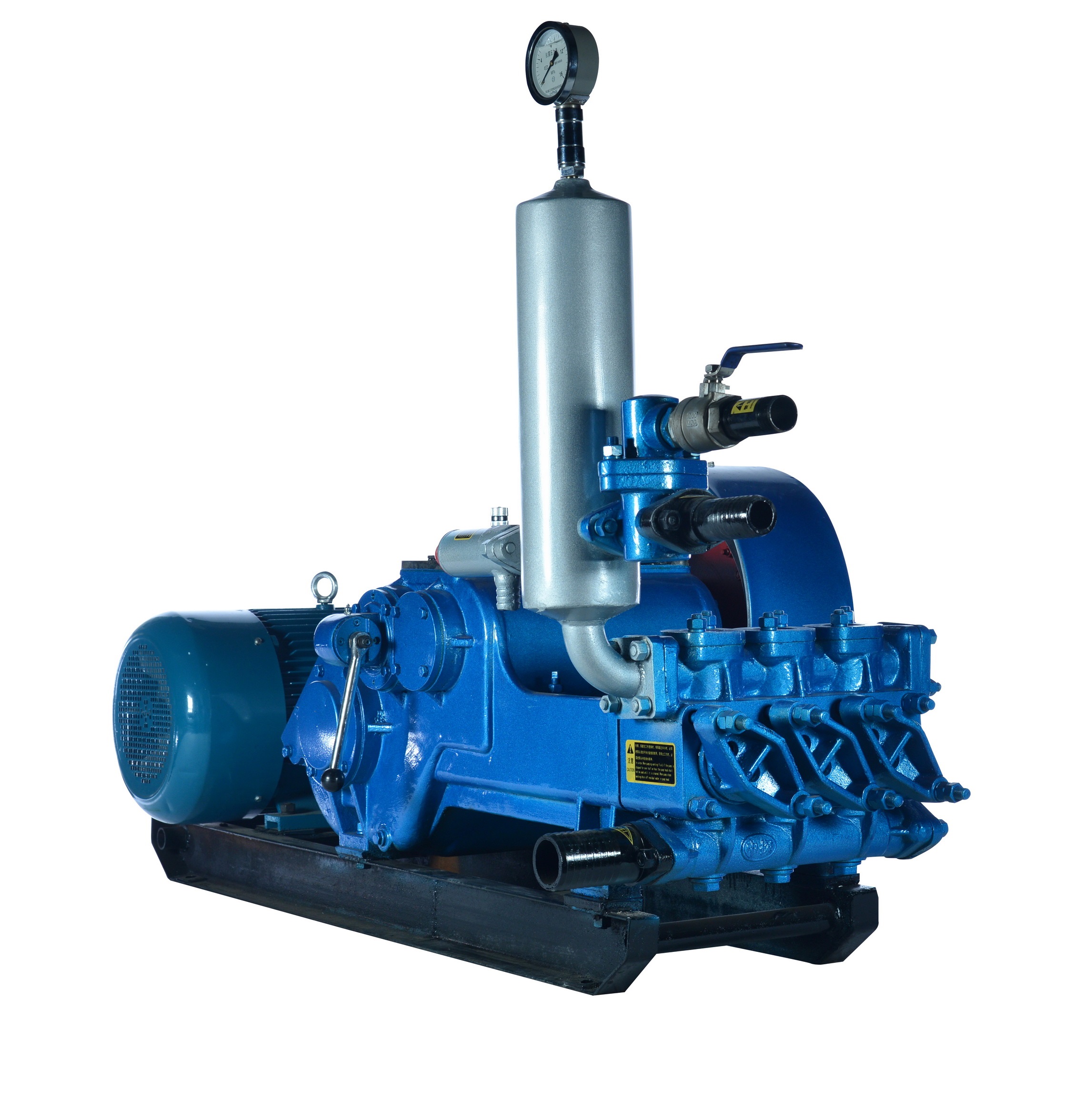

BW600/10 mud pump is a horizontal three-cylinder reciprocating single-acting piston pump. The pump can be used as impact rotary drilling supporting pump which has four-speed flow and four gear pressure, can well match the different hole diameter, depth or drilling process needs. With a smooth operation, a wide range of flow, the output pressure is high, stable performance and so on.
- 【Séries】:Mud Pump
BW600/10 Mud Pump Parameters | |||||
Type | Horizontal Three Cylinder Reciprocating Single Acting Piston Pump | ||||
Stroke (mm) | 110 | ||||
Cylinder Diameter (mm) | 100 | ||||
Pump Speed (min-1) | 232 | 162 | 109 | 76 | |
Flow (L/min) | 600 | 415 | 280 | 195 | |
Pressure (MPa) | 3.5 | 5 | 7.5 | 10 | |
Power (KW) | 55 | ||||
Shape Size (mm) (L×W×H) | 1500×890×1230 | ||||
Weight (kg) | 1400 |
