- BW450
- 【Bref】:
Product Feature

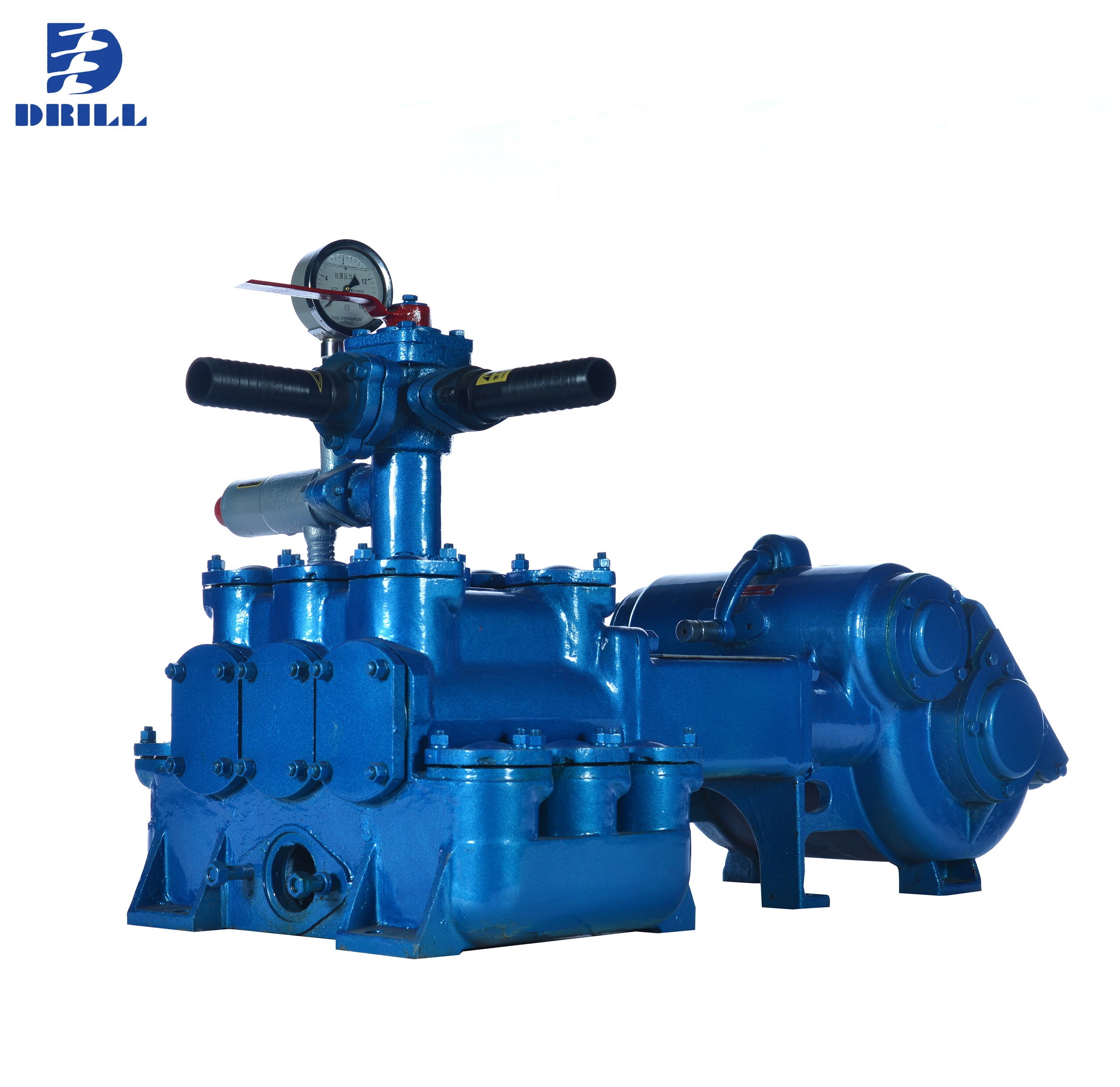

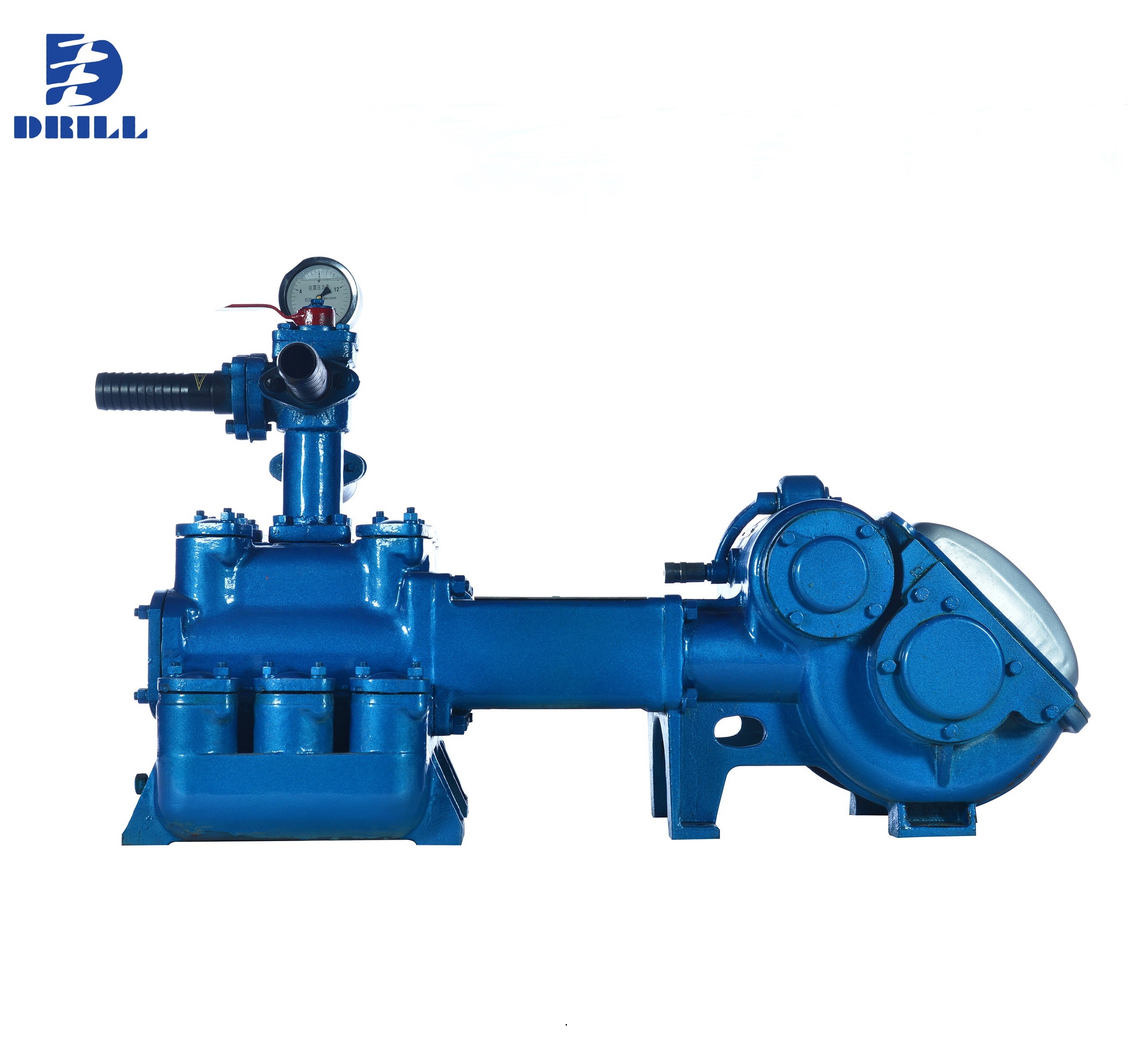

BW450 mud pump is a horizontal three-cylinder reciprocating double-acting piston pump. The pump has a two-speed flow and two gear pressure, can well meet the different pore size, hole depth or drilling process needs. With a smooth operation, the output pressure is high, stable performance and so on.
- 【Séries】:Mud Pump
| BW450 Mud Pump Parameters | |||
| Type | Horizontal Three-Cylinder Reciprocating Double-Acting Piston Pump | ||
| Stroke (mm) | 85 | ||
| Cylinder Diameter (mm) | 100 | ||
| Pump Speed (min-1) | 170 | 115 | |
| Flow (L/min) | 450 | 350 | |
| Pressure (MPa) | 1.2 | 2 | |
| Power (KW) | 18.5 | ||
| Shape Size (mm) (L×W×H) | 1350×820×1040 | ||
| Weight (kg) | 540 | ||
