- BW200
- 【Bref】：
Product Feature

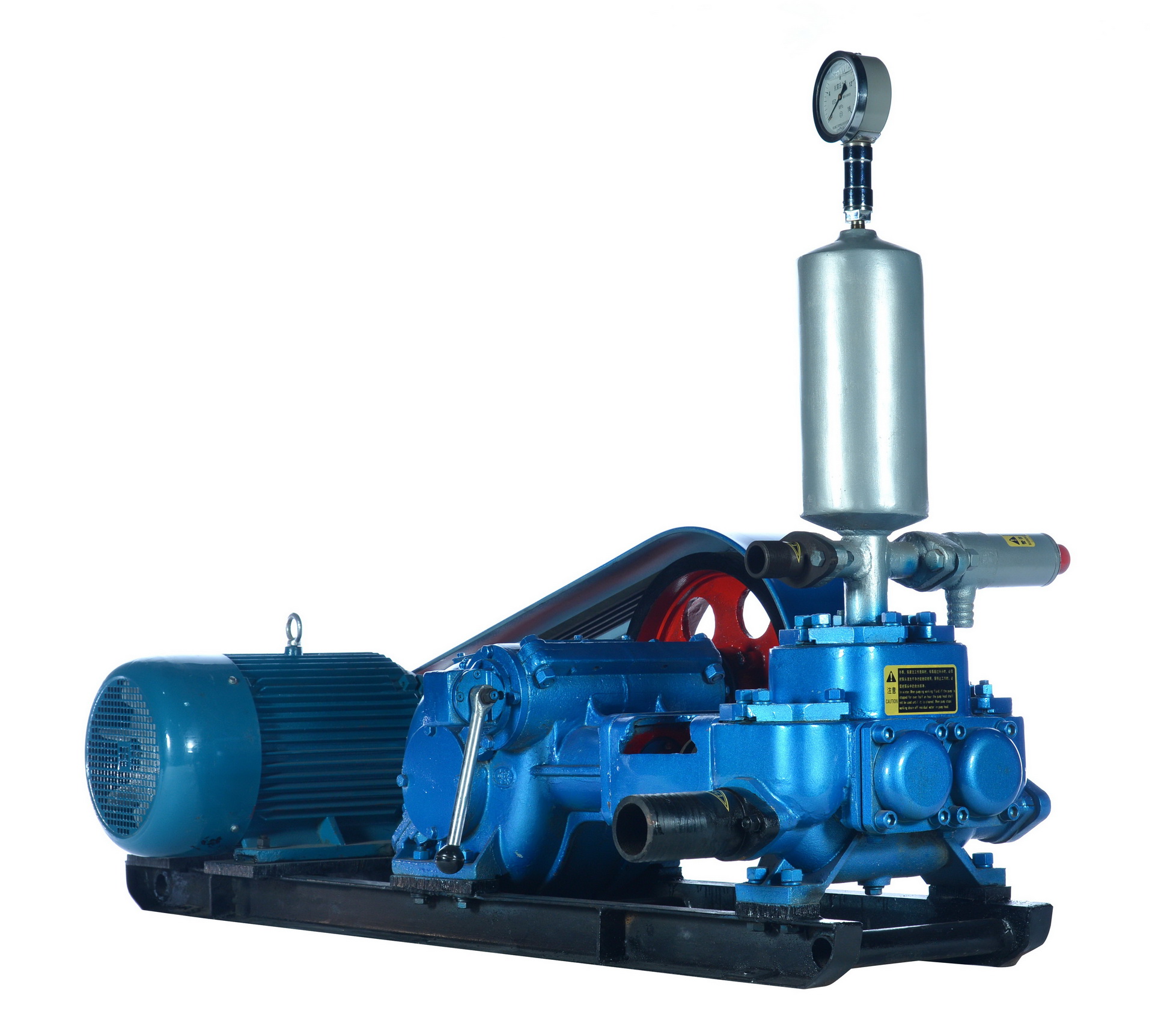

BW200/4 type mud pump is the horizontal double-cylinder reciprocating double-acting piston pump. Mainly used for supporting the core drilling drilling mud, can also be used for other aspects of grouting, mine sewage and long-distance water supply and other purposes.
- 【Séries】：Mud Pump
| BW200/4 Mud Pump Parameters | |||||||||
| Type | Horizontal double cylinder reciprocating double acting piston pump | ||||||||
| Stroke (mm) | 85 | ||||||||
| Cylinder diameter (mm) | 80 | 65 | |||||||
| Pump speed (min-1) | 145 | 145 | |||||||
| Flow (L/min) | 200 | 125 | |||||||
| Pressure (MPa) | 4 | 6 | |||||||
| Power (KW) | 15 | ||||||||
| Shape size (mm) | 1050×630×820 | ||||||||
| Weight (kg) | 300 | ||||||||
