Product Feature

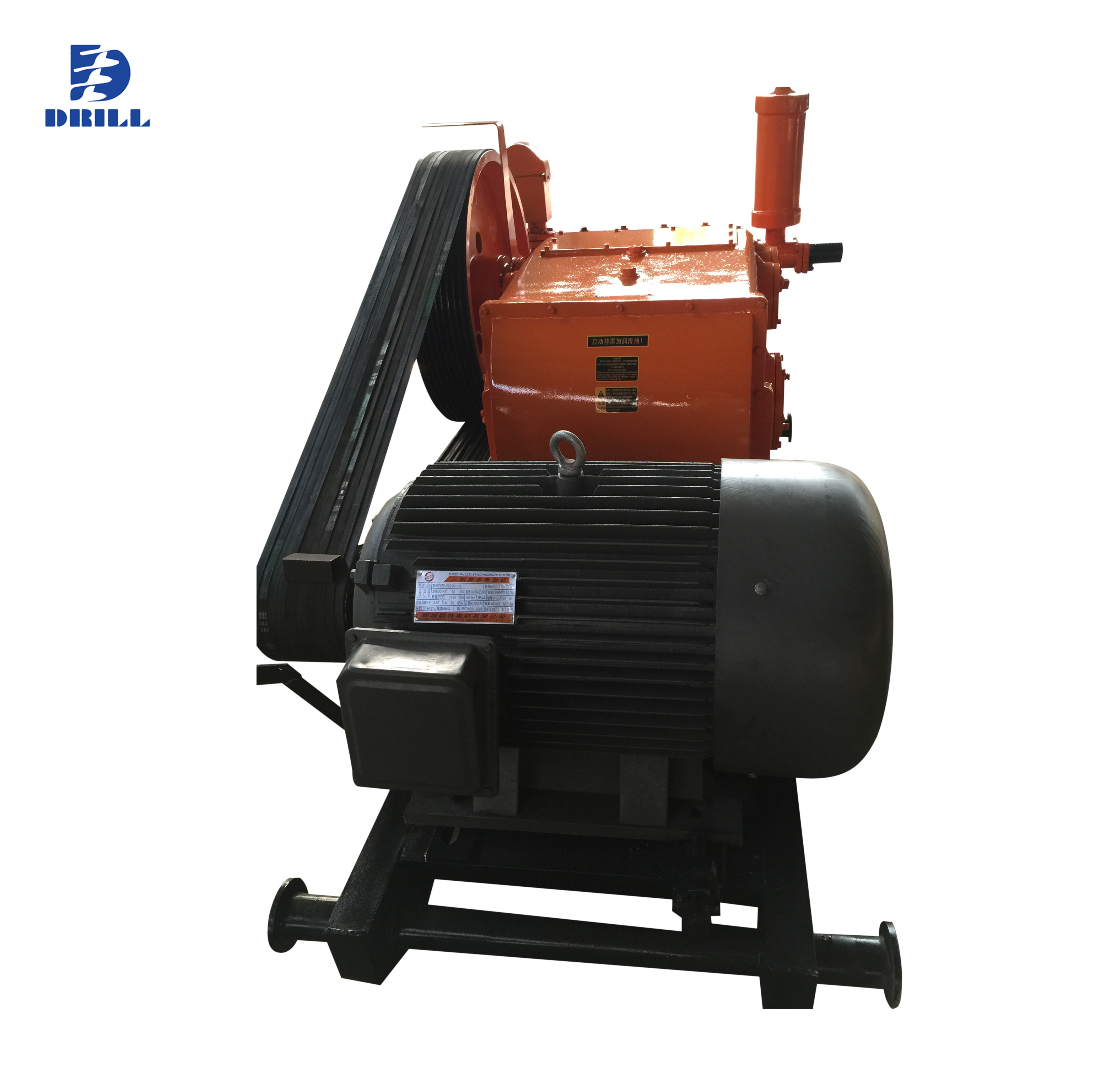

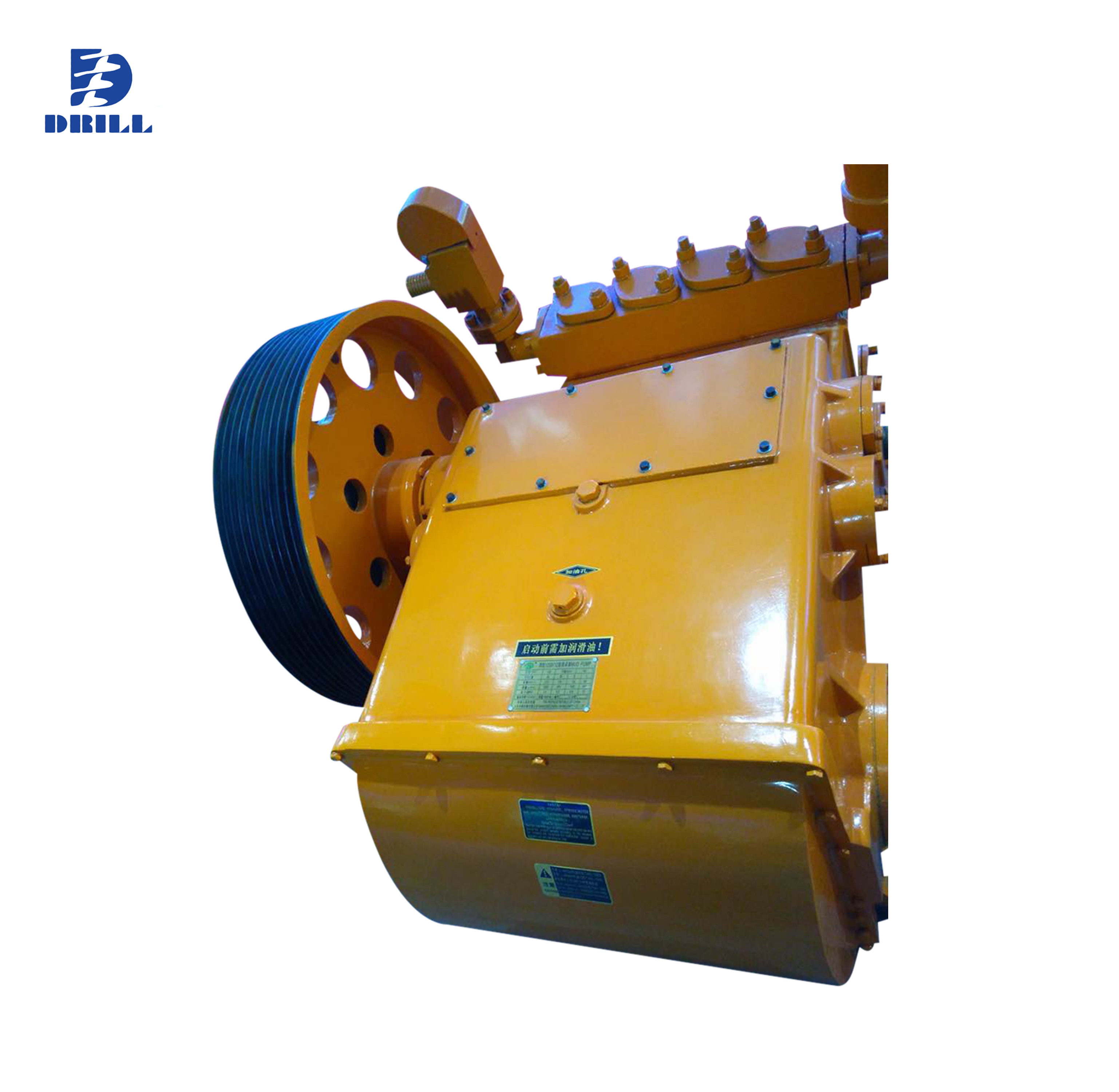

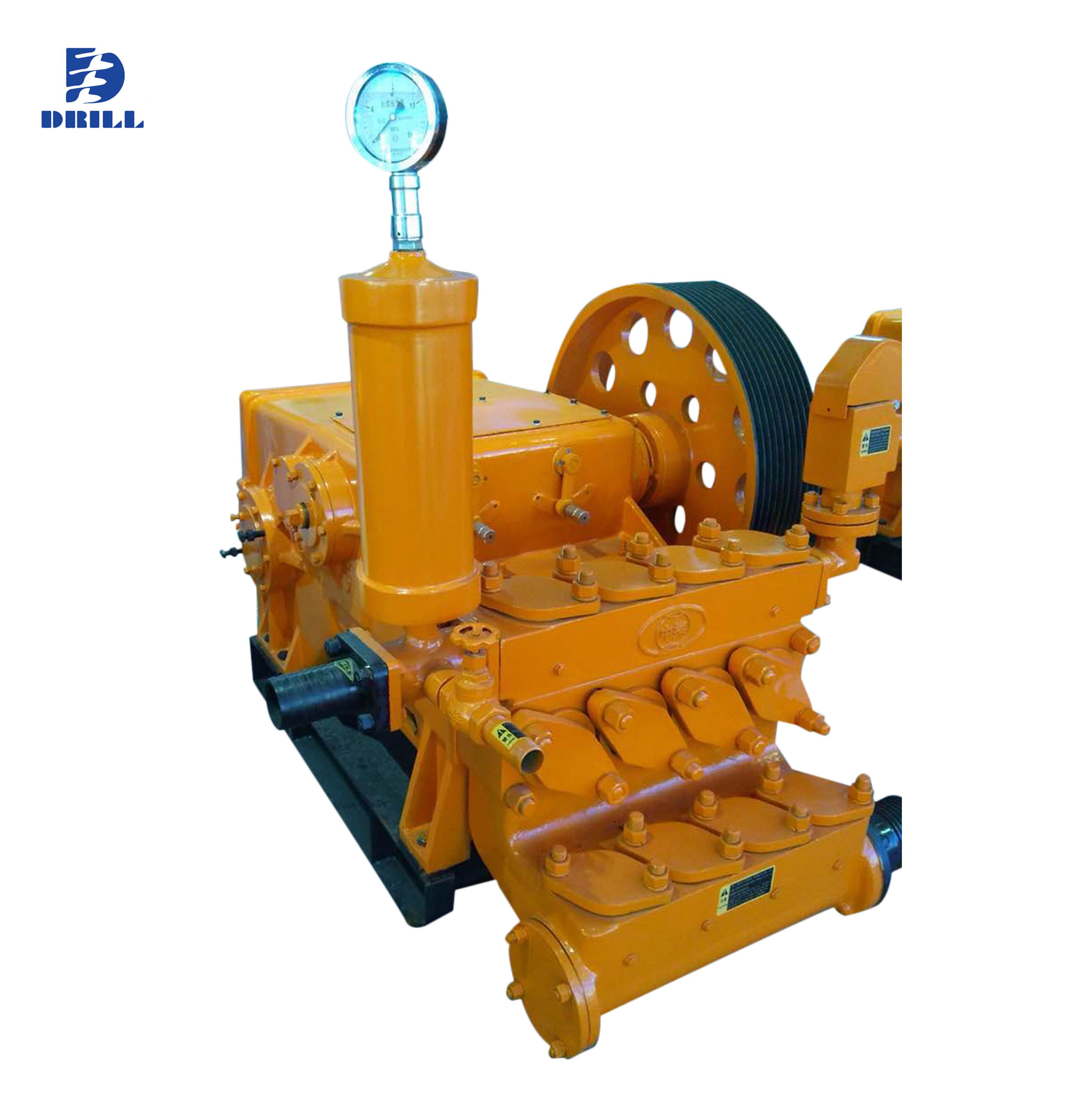

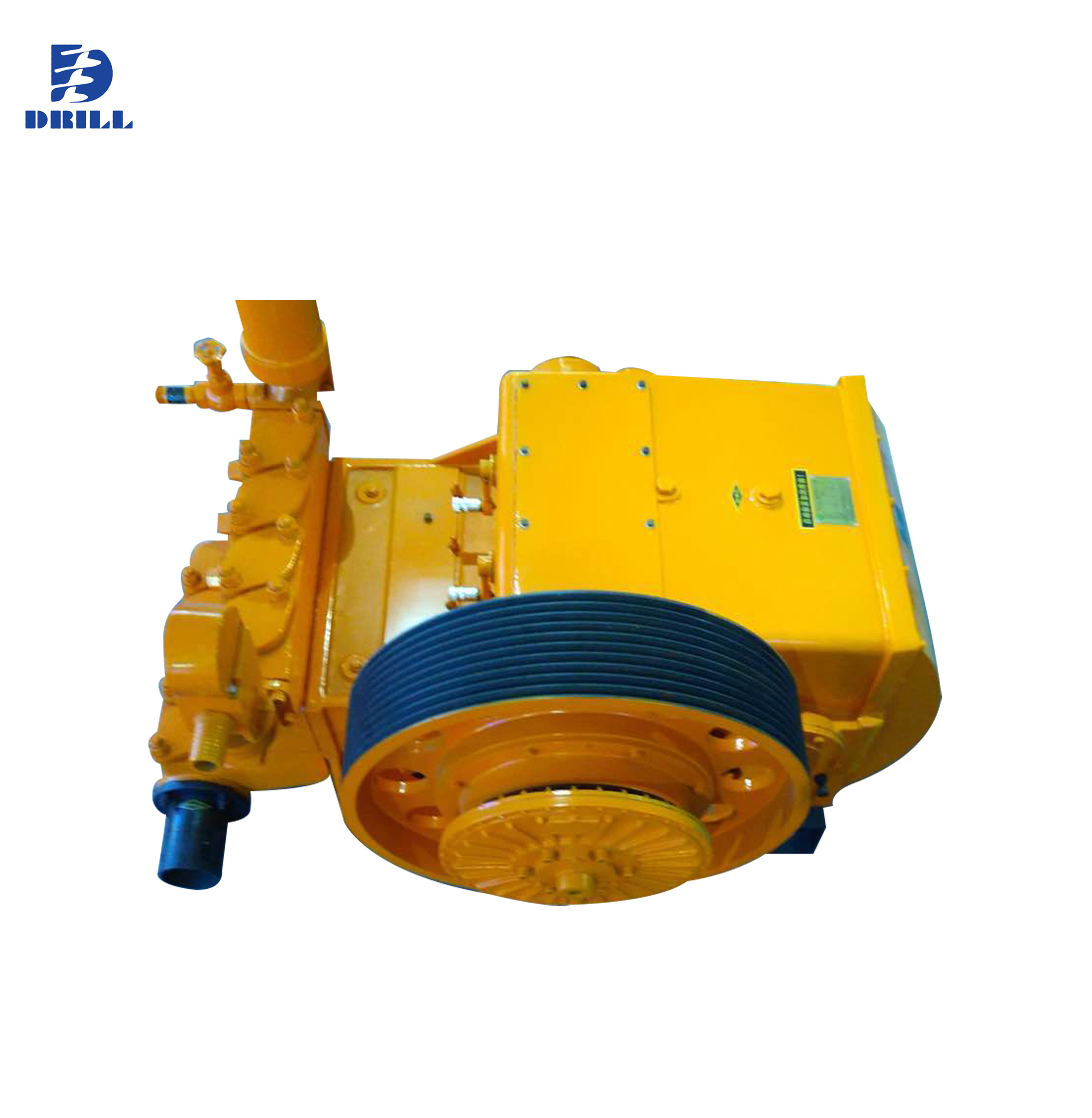

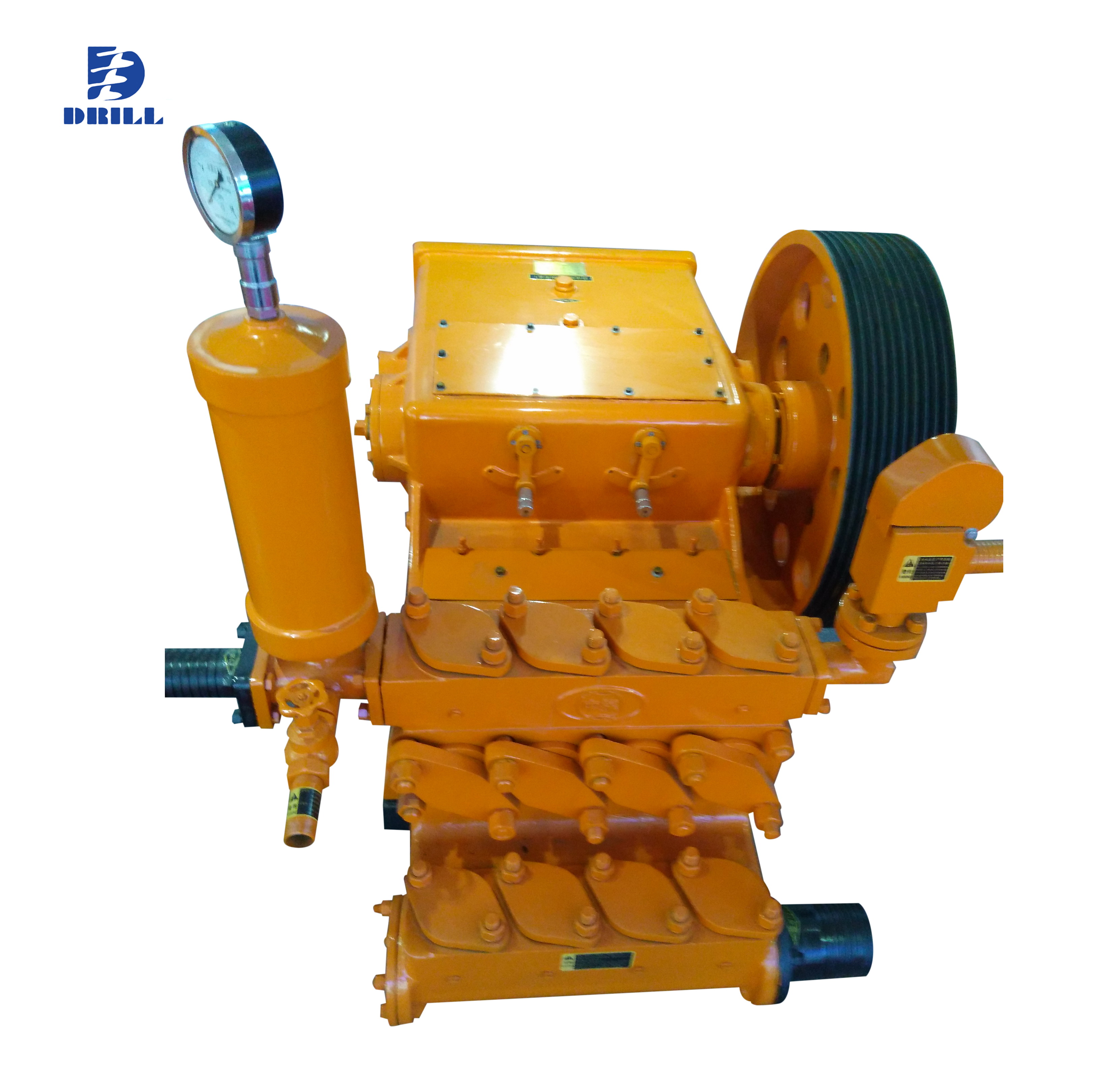

BW1200/10 is a horizontal four-cylinder reciprocating single-acting piston mud pump. Diesel engine, electric motor or hydraulic motor drive can be used with the pump, simple, flexible and convenient. The pump also has a compact structure, smooth operation, a wide range of flow rate, the high output pressure, long life of wearing parts, stable performance, strength, rigidity, versatile and standard parts and more features.
- 【Séries】:Mud Pump
BW1200/10 Four Cylinder Mud Pump Parameters | |||||
Model | BW1200/10 | ||||
Type | Horizontal Four Cylinder Reciprocating Single Acting Piston Pump | ||||
Cylinder Diameter (mm) | 120 | ||||
Stroke (mm) | 140 | ||||
Pump Speed (min-1) | 215 | 174 | 152 | 84 | |
Flow (L/min) | 1200 | 970 | 846 | 467 | |
Pressure (MPa) | 5.5 | 6 | 7.5 | 10 | |
Power (KW) | 132 | ||||
Dimensions (L×W×H) (mm) | 1650×1150×1200 | ||||
Weight (kg) | 1400 (Without Power) |
