- ZT-40
- 【Bref】：Product feature

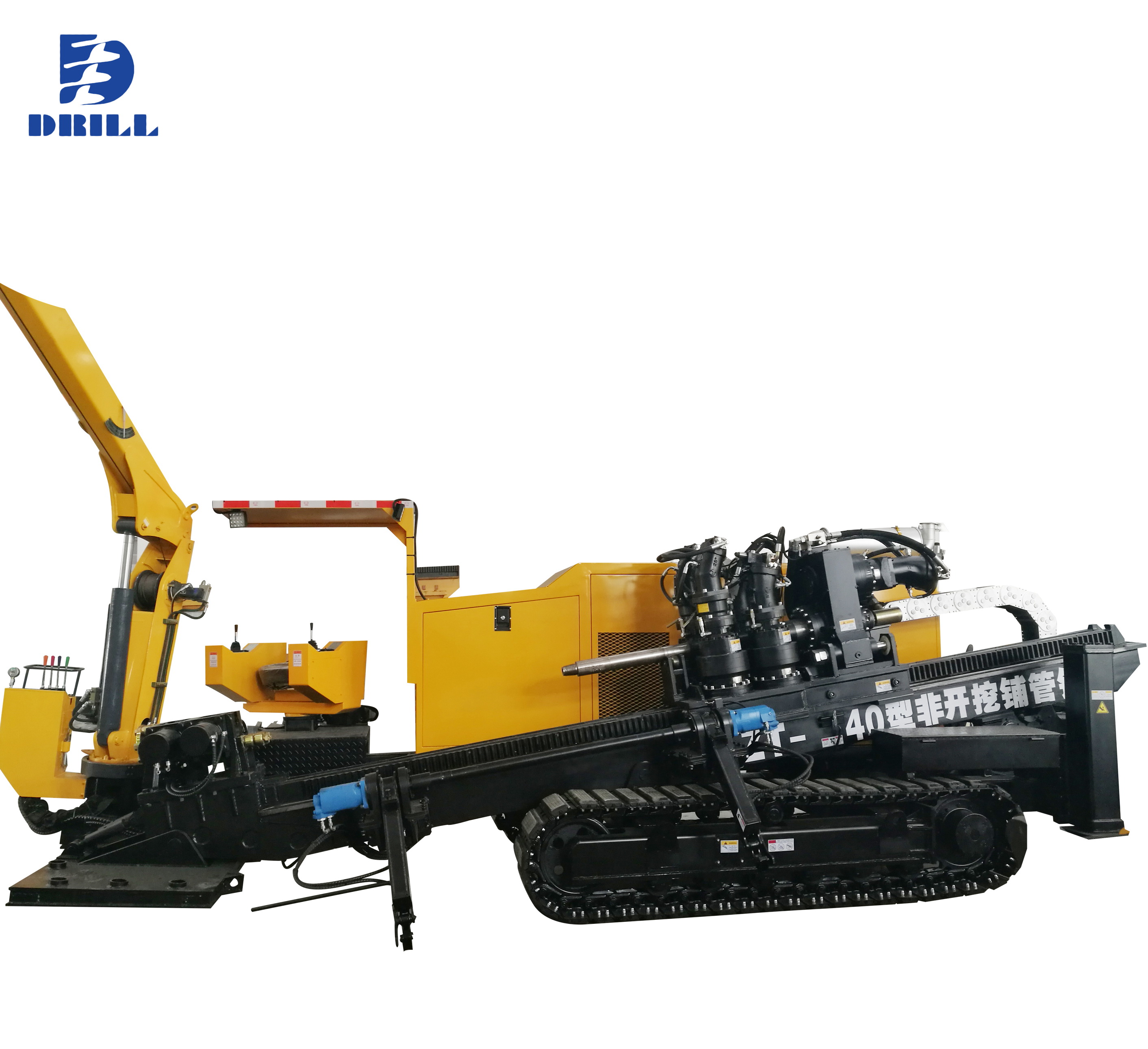

ZT-40 Horizontal Directional Drilling Rig adopts a steel crawler walking device, which is convenient to move. The rotary head is driven by a plunger motor with high rotational speed and large torque. The feeding mechanism is driven by gear - rack, and the double clamps unload the drill rod. It is suitable for the installation of the long distance and larger diameter pipes. - 【Séries】：Horizontal Directional Drilling Rig
| ZT-40 Horizontal Directional Drilling Rig Parameters | |
| Diesel Engine Power | 179KW |
| Max.Spindle Torque | 16000N·m |
| Max.Pullback Force | 400KN |
| Max.Thrust Force | 400KN |
| Spindle Speed | 0-65rpm, 0-100rpm |
| Entry Drill Angle | 8-20° |
| Max. Mud Flow Rate | 320L/min |
| Max. Fluid Pressure | 8MPa |
| Drill Rod (Dia.× Length) | Φ76×3000mm |
| Diameter of Barrel Reamer | Φ380-980mm |
| Diameter of Winged Reamer | Φ320-720mm |
| Fluted Channel Reamer | Φ300-1000mm |
| Rig Size (Lx Wx H) | 6900mm×2250mm×2500mm |
| Weight | 13000kg |
