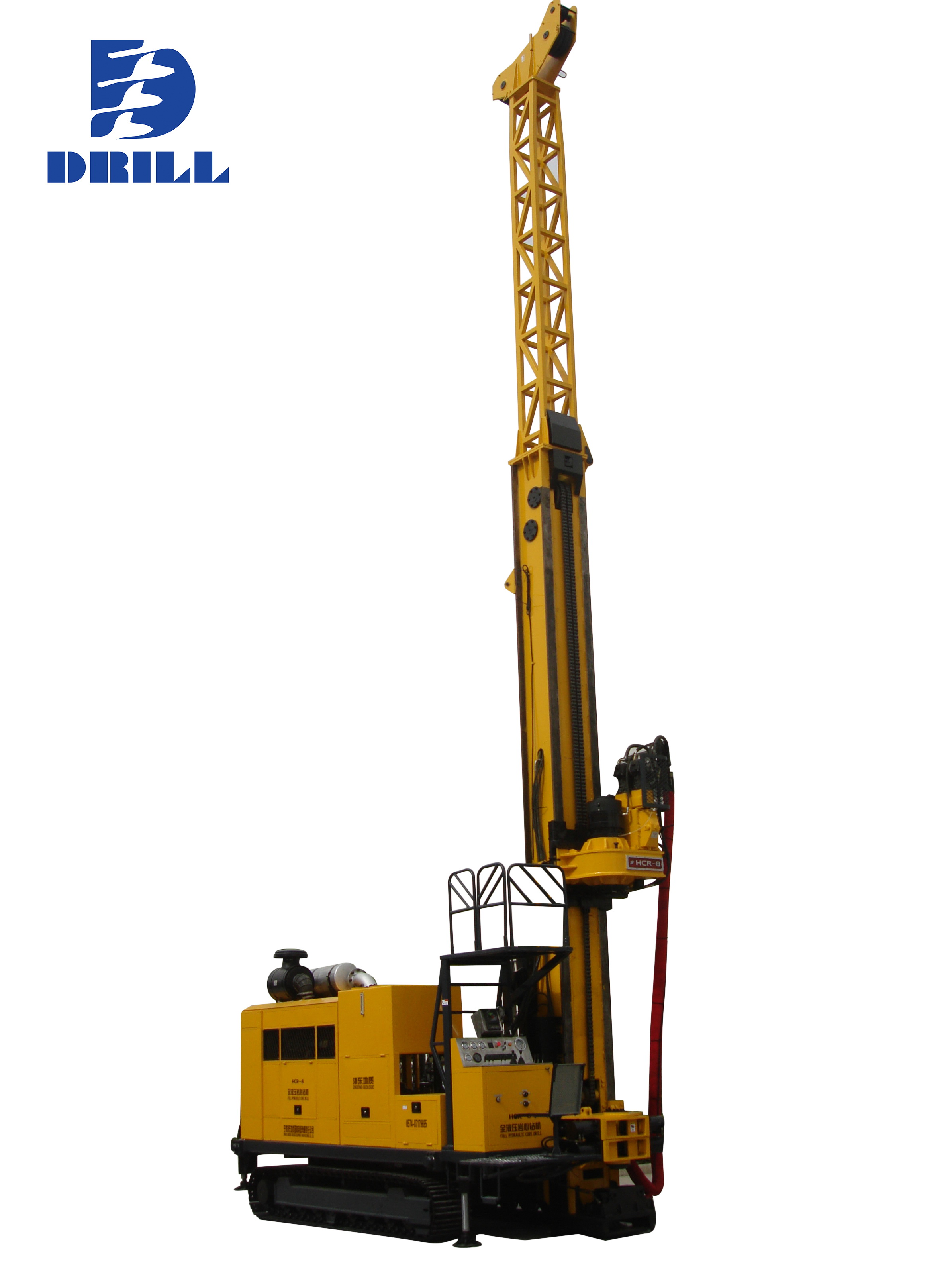

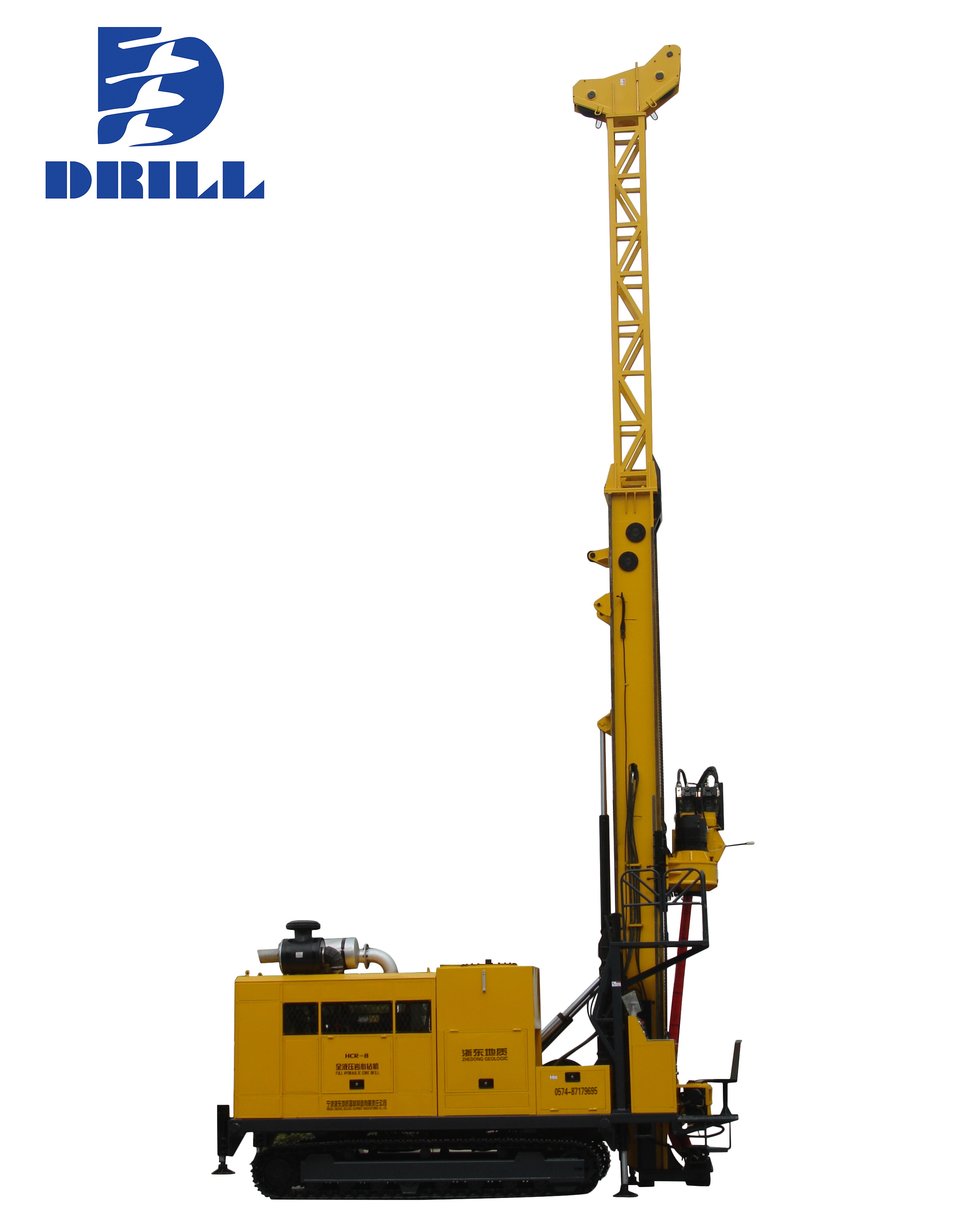

HCR-8
【Bref】:

Product feature

HCR-8 Full Hydraulic Core Drilling Rig is widely used in plain, hilly, high temperature, cold and other harsh environments, for metal and nonmetal solid mineral exploration, coal gas, natural gas, water well, geothermal well, mine tunnel, ventilation and drainage hole and engineering rescue construction, with diamond and hard alloy drilling, meet the wire-line core drilling, top drive drilling requirements.

【Séries】:Full Hydraulic Drilling Rig
HCR-8 Drilling Rig Parameters
Diesel Engine Model Weichai WP12.375
Power 276KW
Rotate Speed 2100rpm
Drill Capacity NQ 3000m
HQ 2400m
PQ 1700m

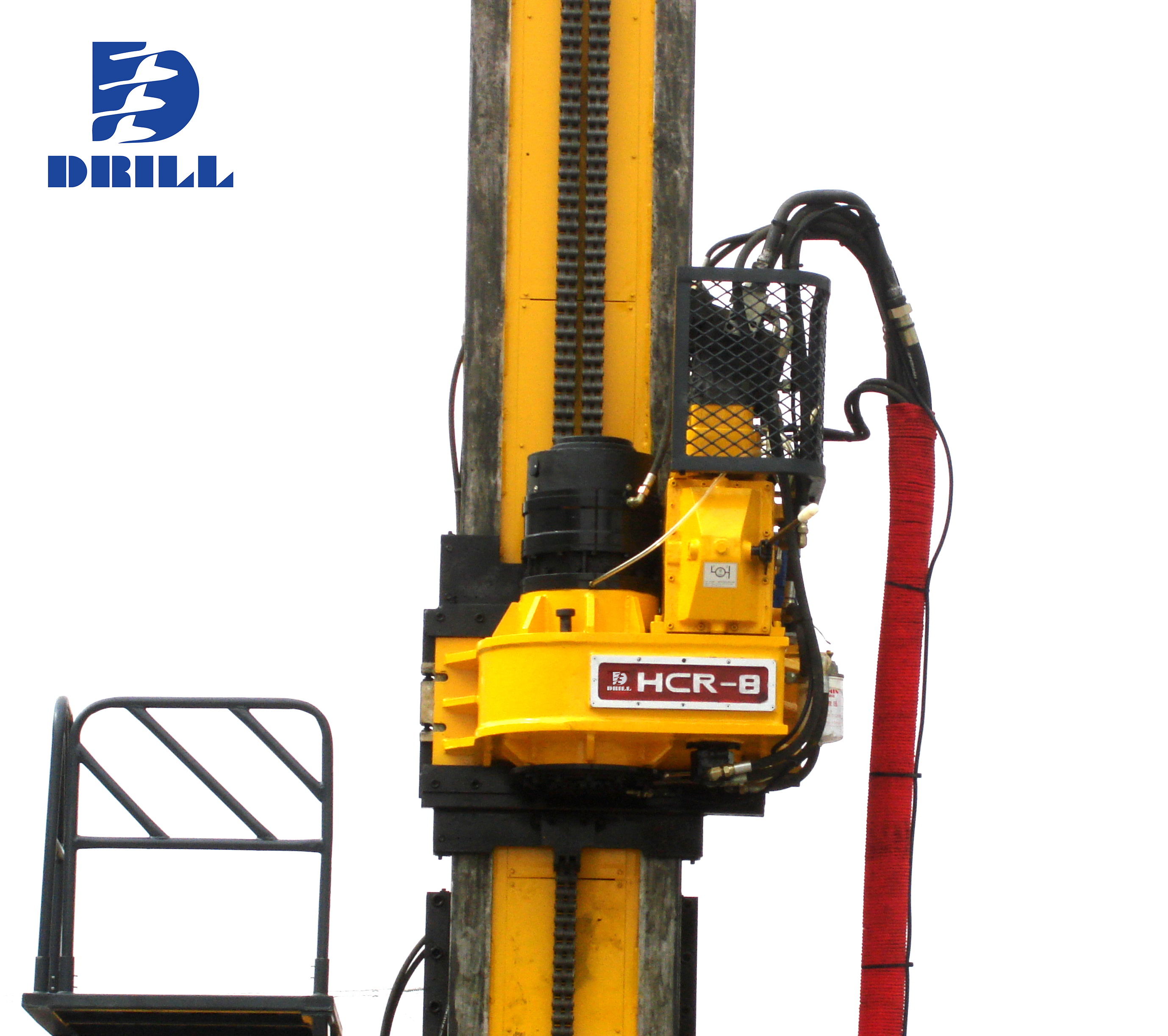

Power Head Capacity Rotate Speed 0-1250rpm
Max. Rotary Torque 7200N·m (170rpm)
1300N·m (1250rpm)
Spindle Bore 121mm
Max. Pulling Force 295KN
Max. Feed Force 152KN
The Main Hoist Capacity Elevating Force 180KN
Diameter of Steel Wire 26mm
Length of Steel Wire 50m
The Wire Line Hoist Capacity Hoisting Force (Single Wire) 15KN
Steel Wire Diameter 6mm
Steel Wire Length 2800m
Mast Effective Hoisting Height 9.6m
Adjusting Angle 0°-90°
Drilling Angle 45°-90°
Feeding Stroke 4700mm
Slippage Stroke 1100mm
Foot Clamp Clamping Scope 55.5-117.5mm
Mud Pump Type Triplex Plunger Reciprocating Pump
Model BW320
Stroke 110mm
Flow 320, 230, 165, 118 L/min
Pressure 4.0, 5.0, 6.0, 8.0MPa
Others Move Mode Steel Crawler Self-Propelled
Transport Dimension           L×W×H 8300×2400×3500mm
Weight 25000kg
