DES PRODUITSLocalisation actuelle :MAISON > DES PRODUITS > Spindle Core Drilling Rig

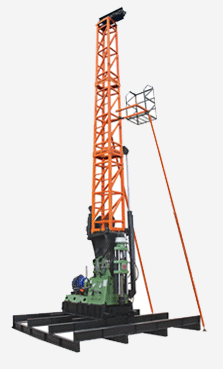

HXY-42T
【Bref】:

Product feature

1. The HXY-42T core drilling rig is integrated with main machine and drill tower. It has compact structure and reasonable layout.

2. Owing to its light weight and easy-disassembly, it is easy to maintain and repaired.

3. The double-action hydraulic chuck guarantees powerful clamping force.

4. The drilling rig possessed high drilling speed because of its smooth movement and low centre of gravity.

5. Equipped with the measuring scale, the drilling rig can master the dynamic condition at the bottom of the hole, this improves the safety and reliability of drilling.

6. The tower can be adjusted in clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle hole.

【Séries】:Spindle Core Drilling Rig
HXY-42T Drilling Rig Parameters
Drilling Depth 700—1100 m
Drill Angle 45-90°
Spindle Speed Positive 82, 151, 215, 313, 251, 463, 661, 961 rpm
Negative 67, 205 rpm
Max. Torque 3200 N·m
Spindle Stroke 600 mm
I.D of Spindle 93 mm
Max. Lifting Capacity of Spindle 80 KN
Max. Pressure Force of Spindle 60 KN
Dia. Of Steel Wire 16 mm
Winding Drum Capacity 90 m
Max. Hoisting Force 30 KN
Electric Motor Power Unit Y200L-4  (30KW / 1480rpm)
Drill Tower Height 10 m
The Number of Pulleys 5 or 3 pcs
Max. Load of Mast 100 KN
The Nominal Area of Base 4000×4000 mm
The Load of Movable Work Platform 800 N
Weight 4000 kg
