- XY-4
- 【Bref】：
Product feature

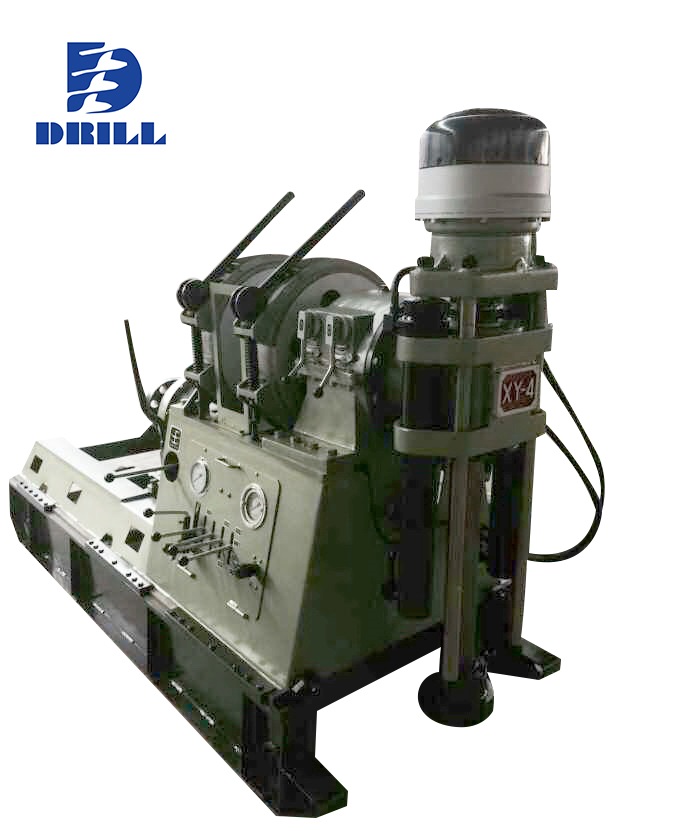

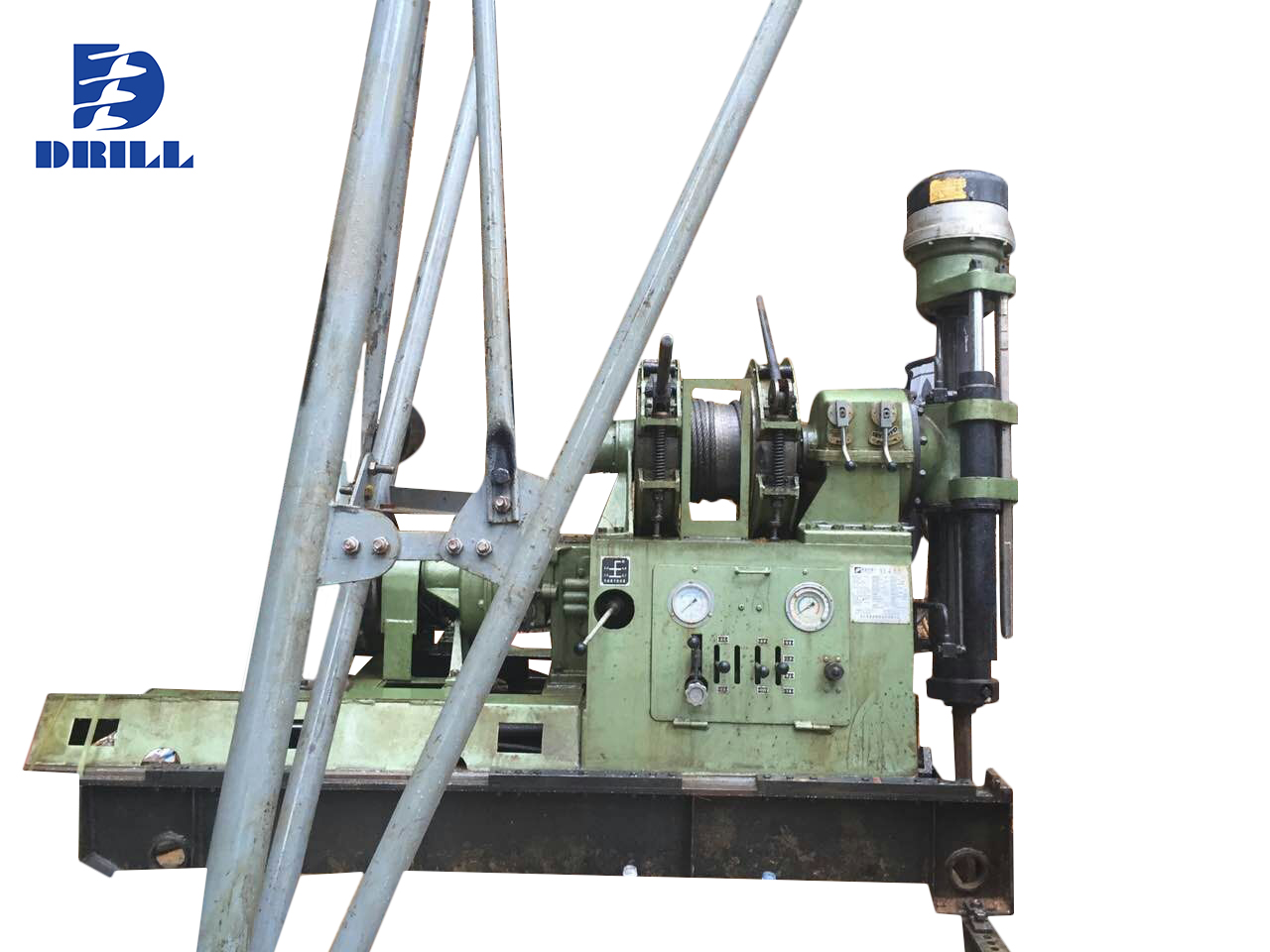

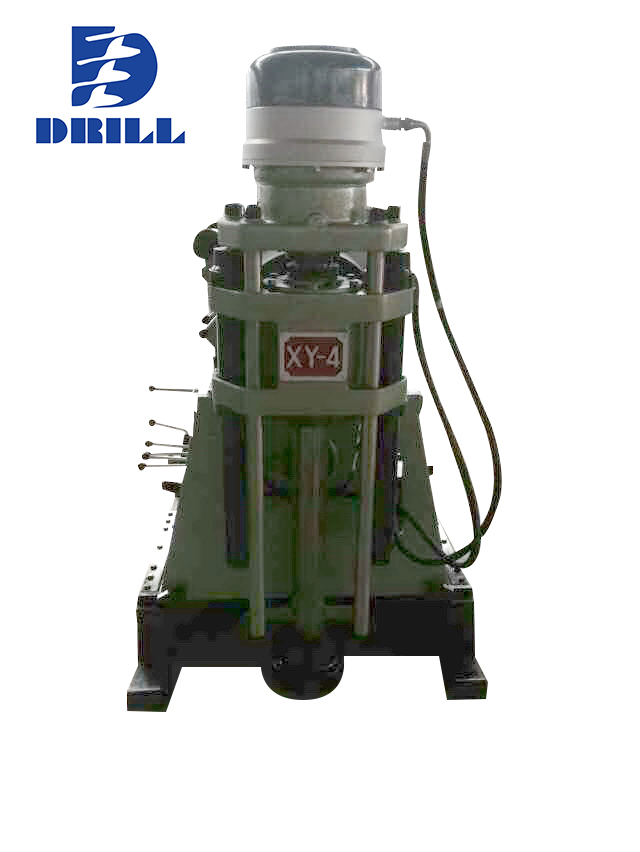

XY-4 core drill rig is mainly adapted to suit mineral with diamond bit or tungsten-carbide tipped bit. It can also be used for engineering geology and groundwater exploration and shallow layer oil and natural gas exploitation, even hole for sap ventilation and sap drain. It has compact, simple and suitable construction. It's light, and can be assembled and disassembled conveniently. The appropriate range of rotation speed gives the rig a high drilling efficiency.
- 【Séries】：Spindle Core Drilling Rig
| XY-4 Drilling Rig Parameters | |
| Drilling depth | 700m-1000m |
| Rotation anglc of spindlc | 0-360° |
| Spindlc speed |
101, 187, 267, 388, 311, 574, 819, 1191 rpm (Positive) |
| 83, 251 rpm (Negative) | |
| Max. rotary tarque of spindle | 2640N·m |
| Spindle stroke | 600mm |
| I.D of spindle | 68mm |
| Power | Electric Motor Model: Y200L-4 (30KW/1480rpm) |
| Diesel Engine Model: ZH4100G43 (31KW/1500rpm) | |
| Diesel Engine Model: R4105G53 (42KW/1500rpm) | |
| Diesel Engine Model: R4105ZG53 (56KW/1500rpm) | |
| Max. lifiting capacity of spindle | 80kN |
| Max. pressuringforceofspindle | 60kN |
| Dimensions | 2700 ×1100×1750mm |
| Steel Wire Diameter | 16mm |
| Content of Winding Drum | 90m |
| Max. hoisting forcce | 33KN |
| Retraction cylinder stroke | 460mm |
| Distance between drill and hole | 310mm |
| Weight（without power unit） | 1750kg |
