XY-1A
【Bref】:

Product Feature

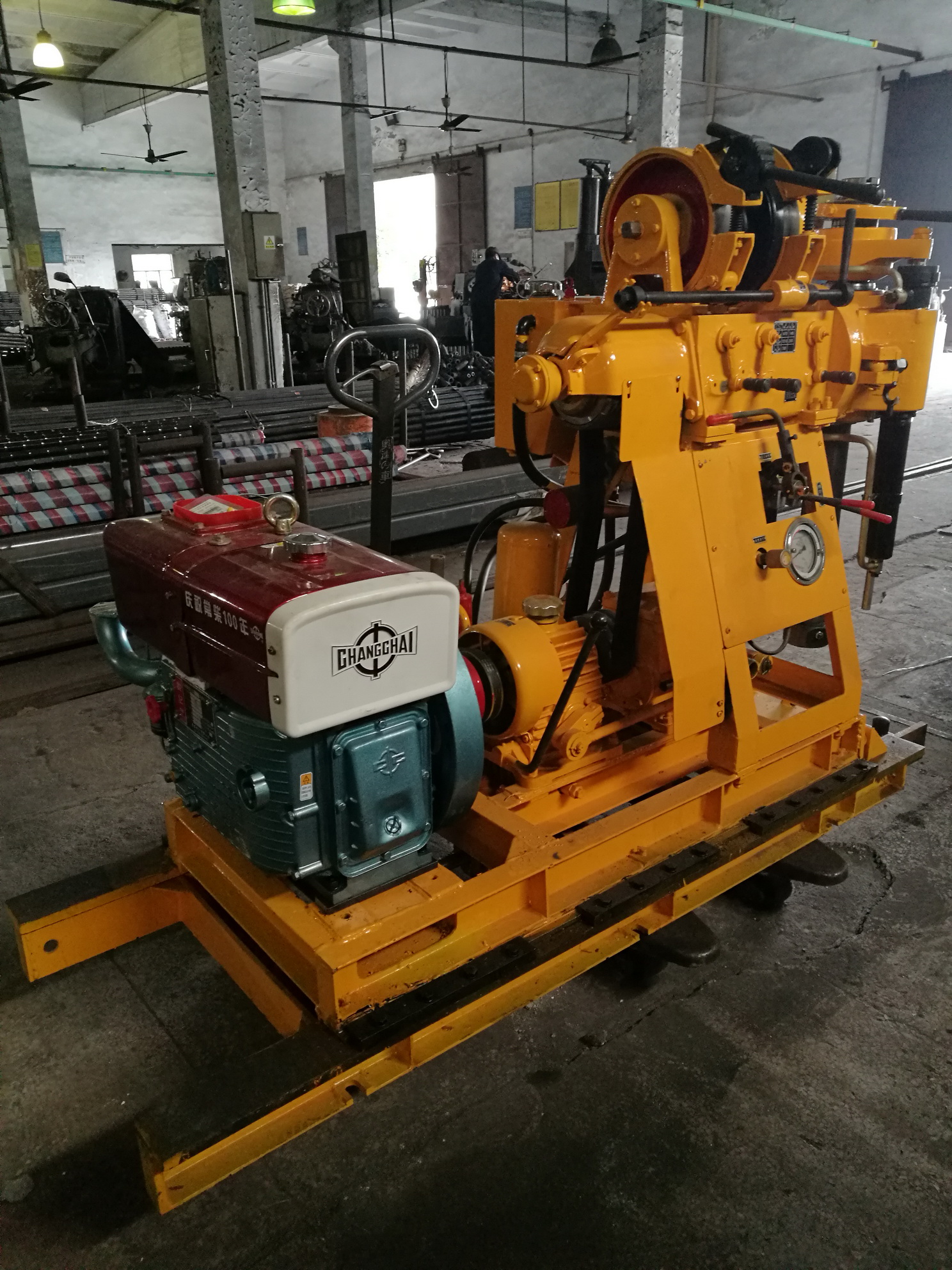

XY-1A Core Drilling Rig is a light type machine at high speed with hydraulic feeding. XY-1A(YJ) , XY-1A-4 and XY-1A-4(YJ) are designed on the basic of XY-1A.

◇  With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.

◇  The rig is equipped with an upper spherical jaw holding mechanism and hexagonal kelly which can be replaced without shutdown, high efficiency, safe and reliable.

◇  A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.

◇  Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



【Séries】:Spindle Core Drilling Rig

XY-1A Core Drilling Rig Parameters

Content

Parameter

Content

Parameter

Drill

Hoist

Drilling depth

100, 180m

Max. Lifting Capacity (single rope)

15KN

Initial hole dia.

150mm

Lifting Rotating Speed

36, 76, 121r/min

Final hole dia.

75, 46mm

Hoisting Drum Linear Velocity     (2 Levels)

10, 20, 44, 88m/min

Drill rod dia.

42, 43mm

Drum Dia.

140mm

Angle range

90º75º

Wire Rope Dia.

9.3mm

Dimensions (L×W×H)

1620×970×1560(mm)

Wire Rope Capability

35m

Weight (Without Power Unit)

620kg

Brake Dia.

252mm

Stroke

350mm

Brake Belt Width

50mm

Swivel Head

Oil Pump

Spindle Speed(5-Speed)

140, 295, 470,            790, 1010 (r/min)

Model

YBC-12/125

Spindle Stroke

450mm

Rated Presure

12.5MPa

Spindle Pull-down max.

15KN

Displacement

8ml/r

Spindle Lifting Capacity max.

25KN

Rated Speed

8002500r/min

Upward Displacement Speed of Idling Vertical Spindle

3m/min

Power (Diesel Engine or Motor)

Downward Displacement Speed of Idling Vertical Spindle

4m/min

Model (Diesel Engine)

ZS1100

Rated Power

12.1KW

Rated Speed

2200r/min

Model (Motor)

Y160M-4

Rated Power

11KW

Rated Speed

1460r/min
