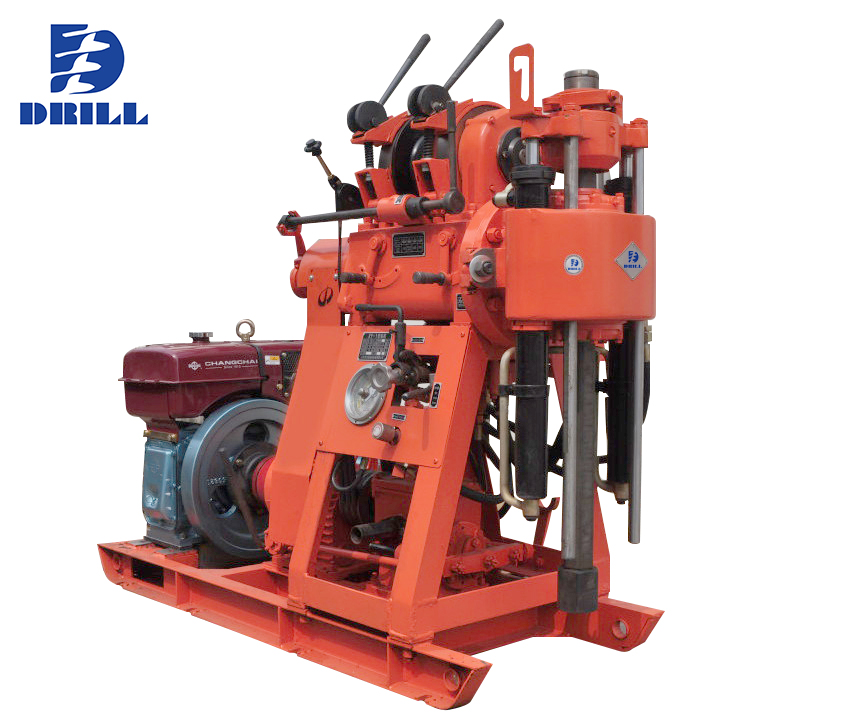

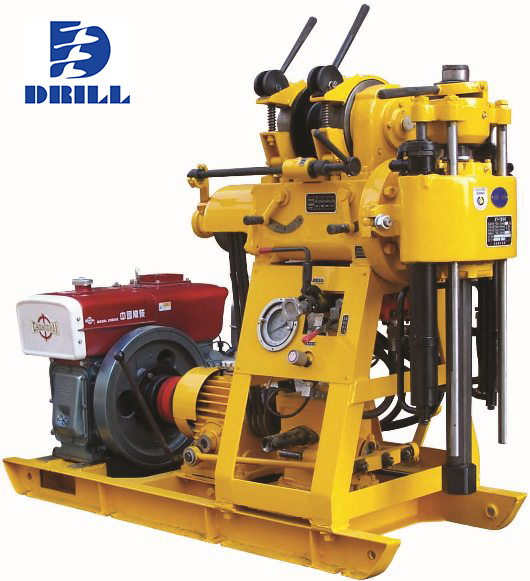

XY-1
【Bref】:

Product Feature

XY-1 core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction surver, blast holes and other drilling operations.

◇  With hydraulic automatic feeding device, elevated drilling efficiency.

◇  The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

◇  Centralized handles, easy operation, safe and reliable.

◇  The drilling rig, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

◇  Light weight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



【Séries】:Spindle Core Drilling Rig
XY-1 Core Drilling Rig Parameters
Content Parameter Content Parameter
Drill Mud Pump
Drilling depth 100m Model Horizontal Reciprocating Single-Acting Piston Pump
Initial hole dia. 110mm Displacement Max.
Final hole dia. 75mm Equipped With Diesel Engine 95L/min
Drill rod dia. 42mm Equipped With Motor 77L/min
Angle range 90º~75º Allowable Working Pressure Max. 1.2MPa
Dimensions (L×W×H) 1640×1030×1440(mm) Continunous Working Pressure 0.7MPa
Swivel Head Suction Pipe Dia. 32mm
Spindle Speed(3-Speed) 142, 285, 570 (r/min) Discharge Pipe Dia. 25mm
Spindle Stroke 450mm Oil Pump
Spindle Pull-down max. 15KN Model YBC-12/125
Spindle Lifting Capacity max. 25KN Rated Presure 12.5MPa
Upward Displacement Speed of Idling Vertical Spindle 3m/min Displacement 8ml/r
Hoist Rated Speed 8002500r/min
Max. Lifting Capacity (1-speed, single rope) 10KN Power (Diesel Engine or Motor)
Cable Volume (number) of Hoisting Drum 27m Model (Diesel Engine) ZS1100
Wire Rope Dia. 9.3mm Rated Power 12.1KW
Reel Speed 55, 110, 220 (r/min) Rated Speed 2200r/min
Reel Dia. 145mm Model (Motor) Y132M-4
Brake Dia. 230mm Rated Power 7.5KW
Brake Width 50mm Rated Speed 1440r/min
