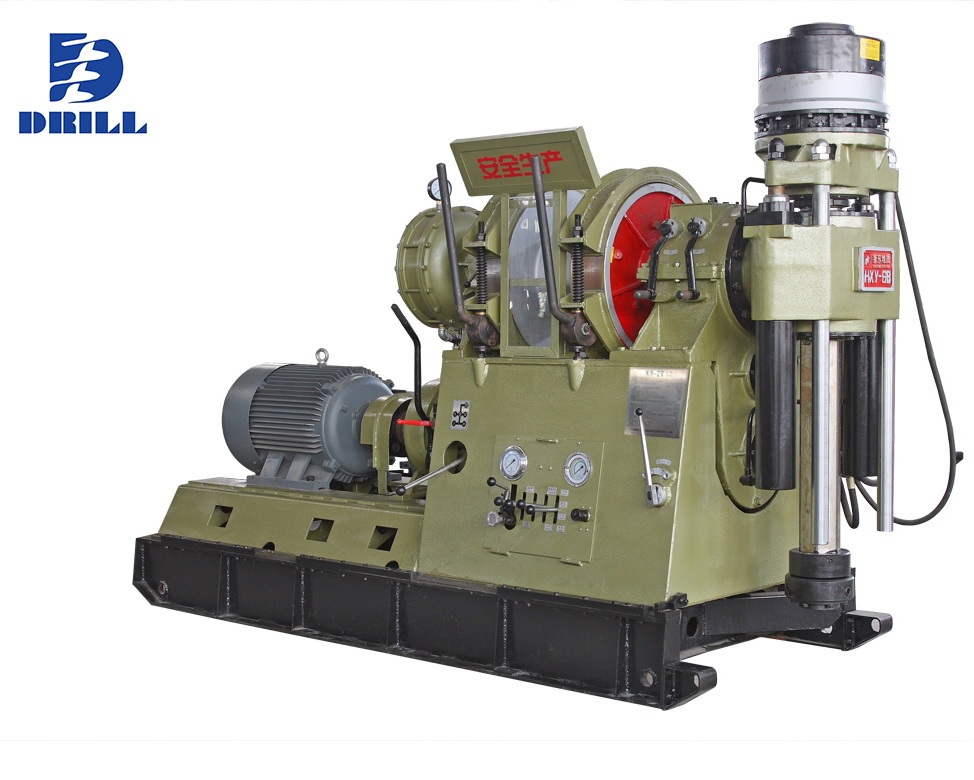

HXY-6B
【Bref】:

Product feature

HXY - 6B core drilling rig is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in core drill with diamond bit or hard tungsten-carbide tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial zone petroleum and natural gas mining, mines' gallery ventilation and water discharge tunnel drilling as well as large-diameter hole foundation stake drilling.

【Séries】:Spindle Core Drilling Rig
 HXY-6B Drilling Rig Parameters
Drilling Depth 1200m-2400m
Hole Angle 90°-70°
Spindle Speed Positive 96, 178, 253, 369, 268, 494, 705, 1025rpm
Negative 78, 218rpm
Maximum Torque 7800N·m
Spindle Stroke 720mm
Vertical Shaft Diameter Φ118mm
Maximum Lifting Force 200KN
Max. Pressure 150KN
Maximum Hoist Capacity 85KN
Diameter of Wire Rope 21.5mm
Drum Rope Capacity 160m
Power of Engine Electric Motor Y280S-4  (75KW / 1480rpm)
Diesel Engine YC6108ZD  (84KW / 1500rpm)
Dimension (L×W×H) 3590×1300×2350mm (Electric Motor)
3790×1300×2350mm (Diesel Engine)
Weight (Without Power) 4700Kg
