- HXY-5T
- 【Bref】：
Product feature

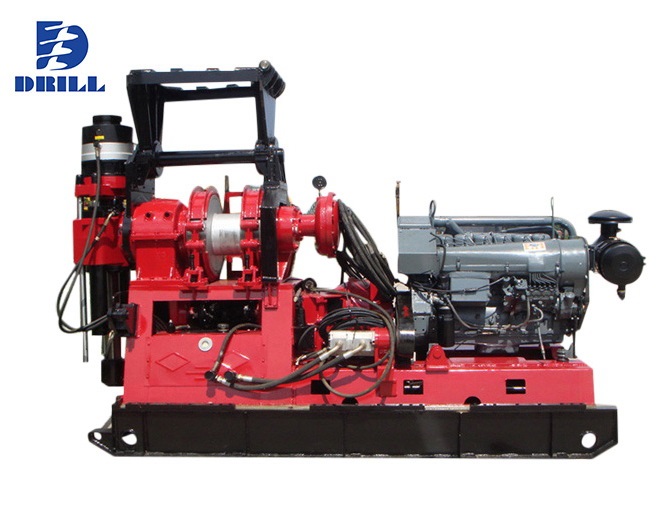

The HXY-5T core drill rig, integrated rig with tower into one unit, consists of HXY-5A drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle. The tower body of HXY-5T Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes.
- 【Séries】：Spindle Core Drilling Rig
| HXY-5A Drilling Rig Parameters | |||||
| Content | Parameter | Content | Parameter | ||
| Drilling depth | 900-1800m | Max. lifiting capacity of spindle | 135kN | ||
| Rotation anglc of spindlc | 0-360° | Max. pressuringforceofspindle | 100kN | ||
| Spindlc speed | Positive | 96, 170, 244, 356 rpm | Dimensions （L×W×H） | Electric motor | 3500×1300×2175mm |
| 359, 591, 850, 1246 rpm | |||||
| Negative | 84, 293 rpm | Diesel engine | 3700×1300×2175mm | ||
| Max. rotary tarque of spindle | 5500N•m | Steel Wire Diameter | 18.5mm | ||
| Spindle stroke | 600mm | Content of Winding Drum | 120m | ||
| I.D of spindle | 93mm | Max. hoisting forcce | 60kN | ||
| Power | Y250M-4 electric motor 55KW/1480rpm | Weight（without power unit） | 3600kg | ||
| YC6108G diesel engine 85KW/2000rpm | |||||
| Mast-Type Drill Tower Parameters | |||||
| The Nominal Height of Tower | 11m | Max. Load of Mast | 120KN | ||
| The Nominal Area of Base | 5.5m×5.5m | The Load of Movable Work Platform | 900N | ||
| The Number of Pulleys | 5 pcs | Adjusted Angles of Drill Tower | 45°－90° | ||
