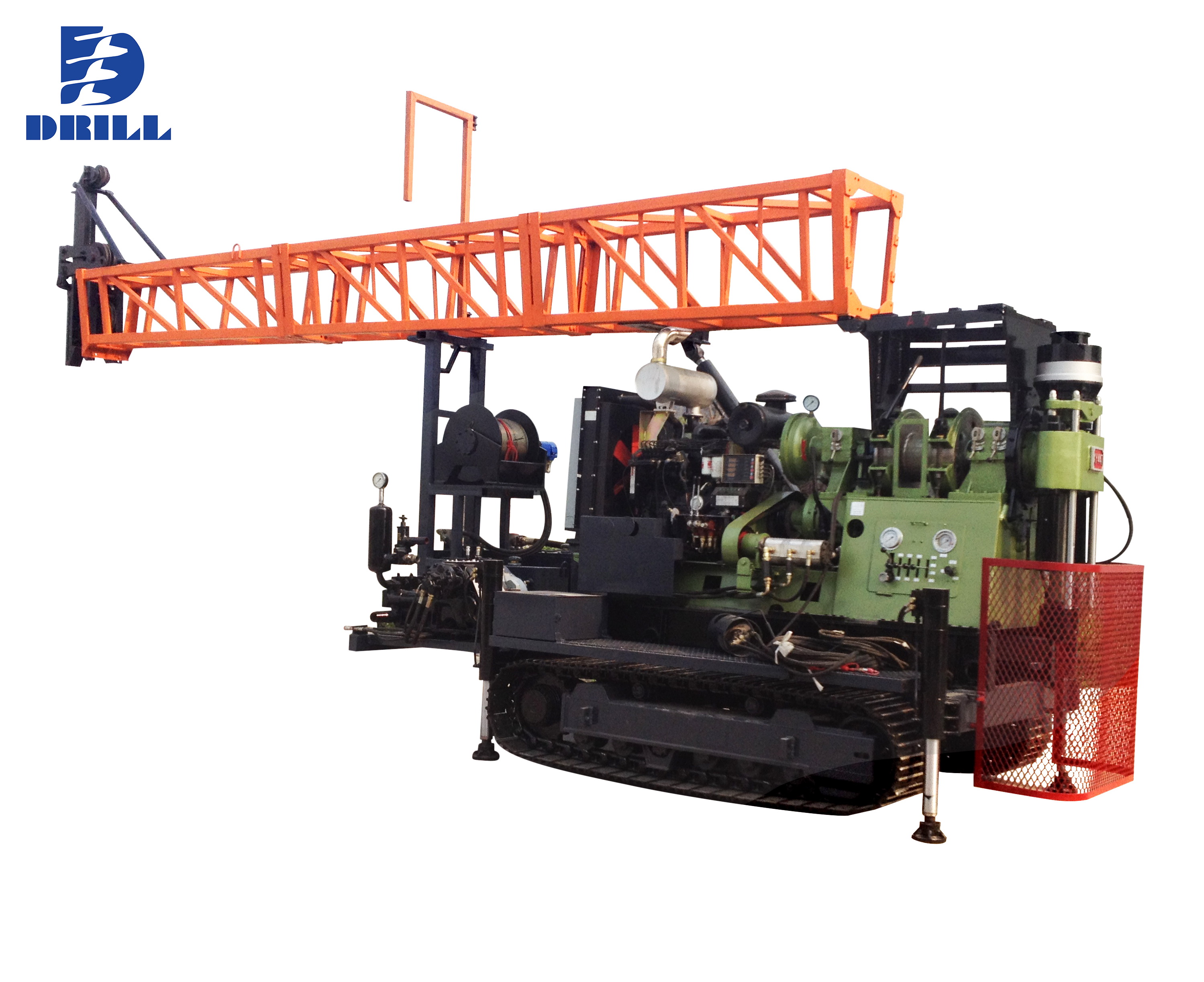

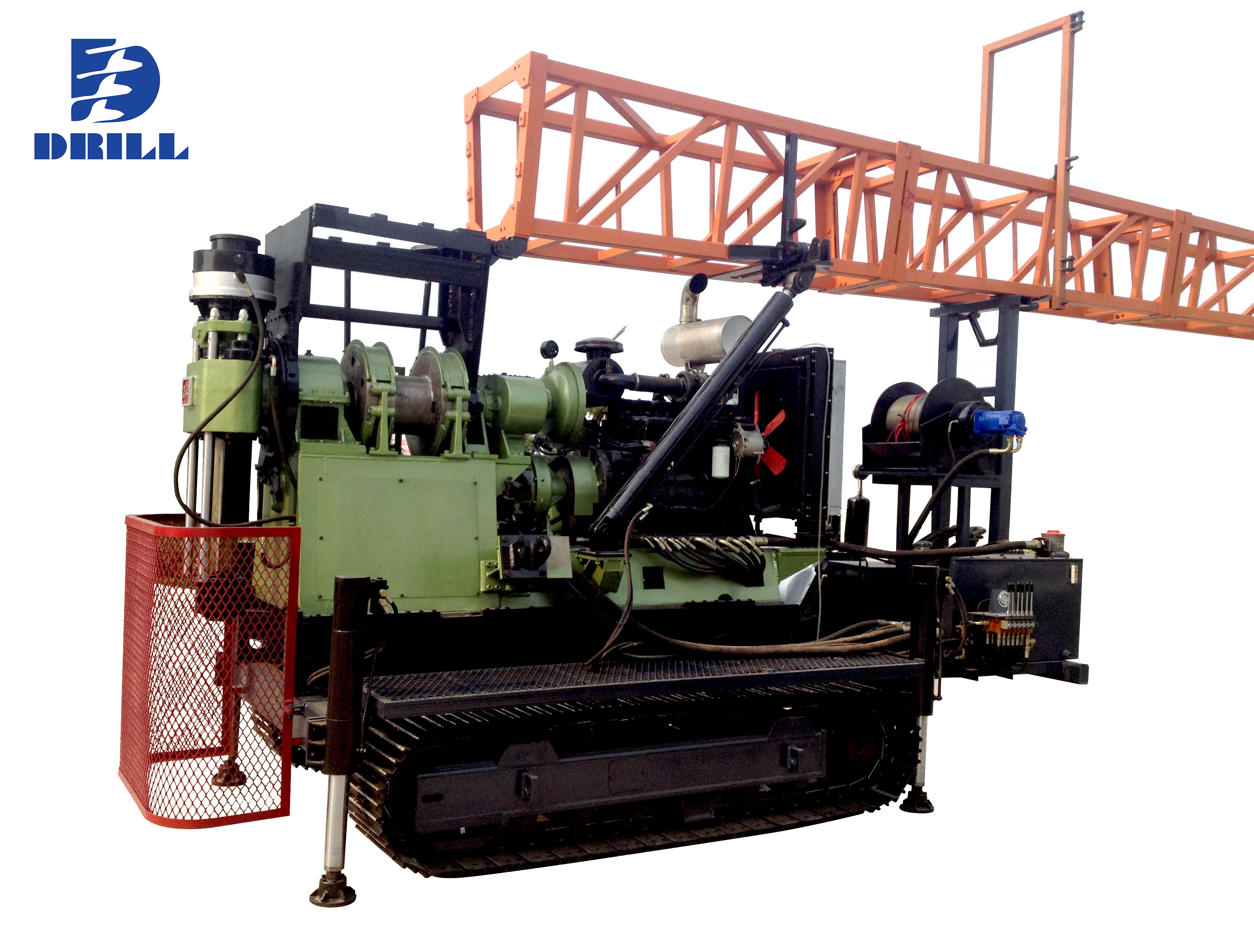

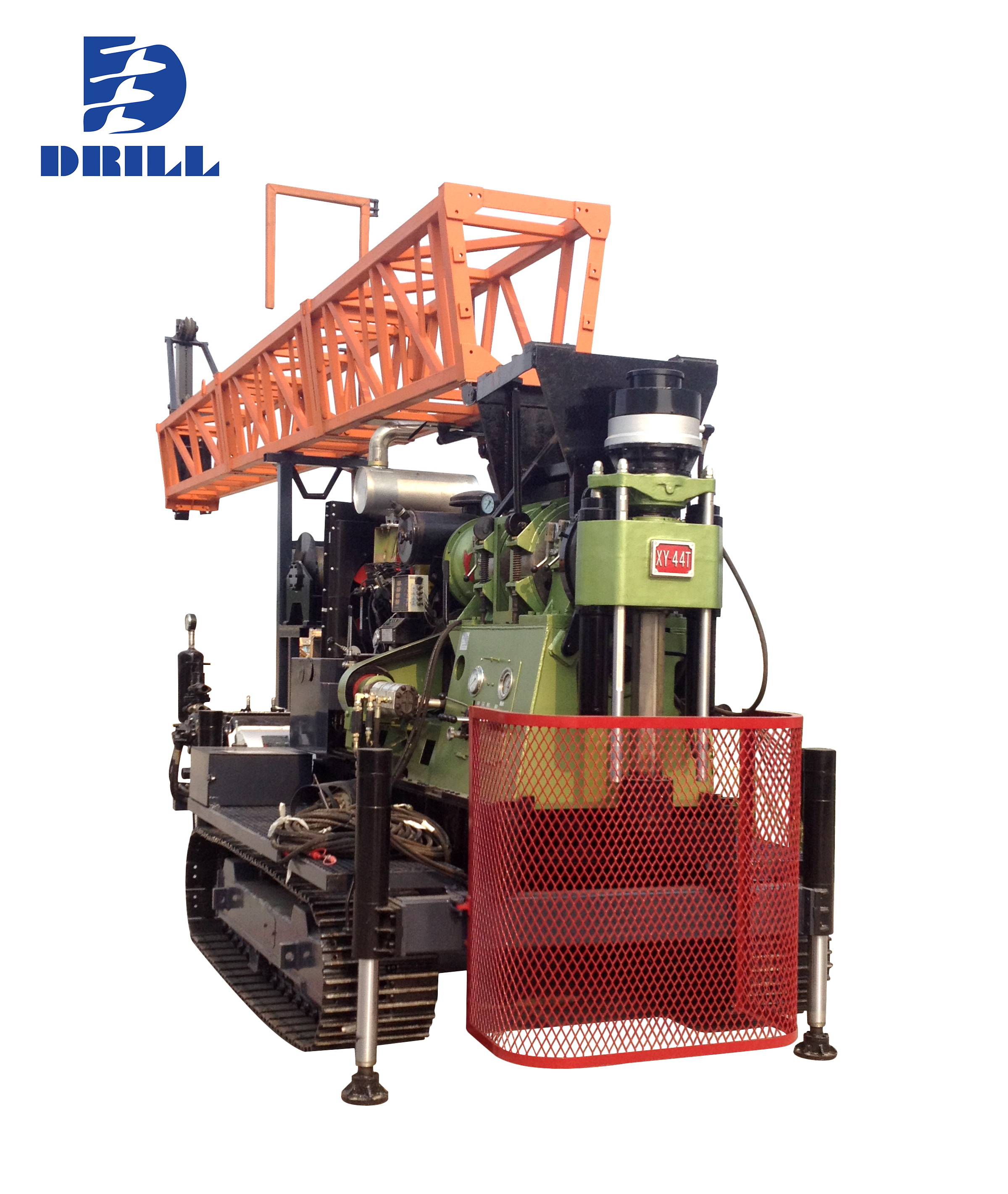

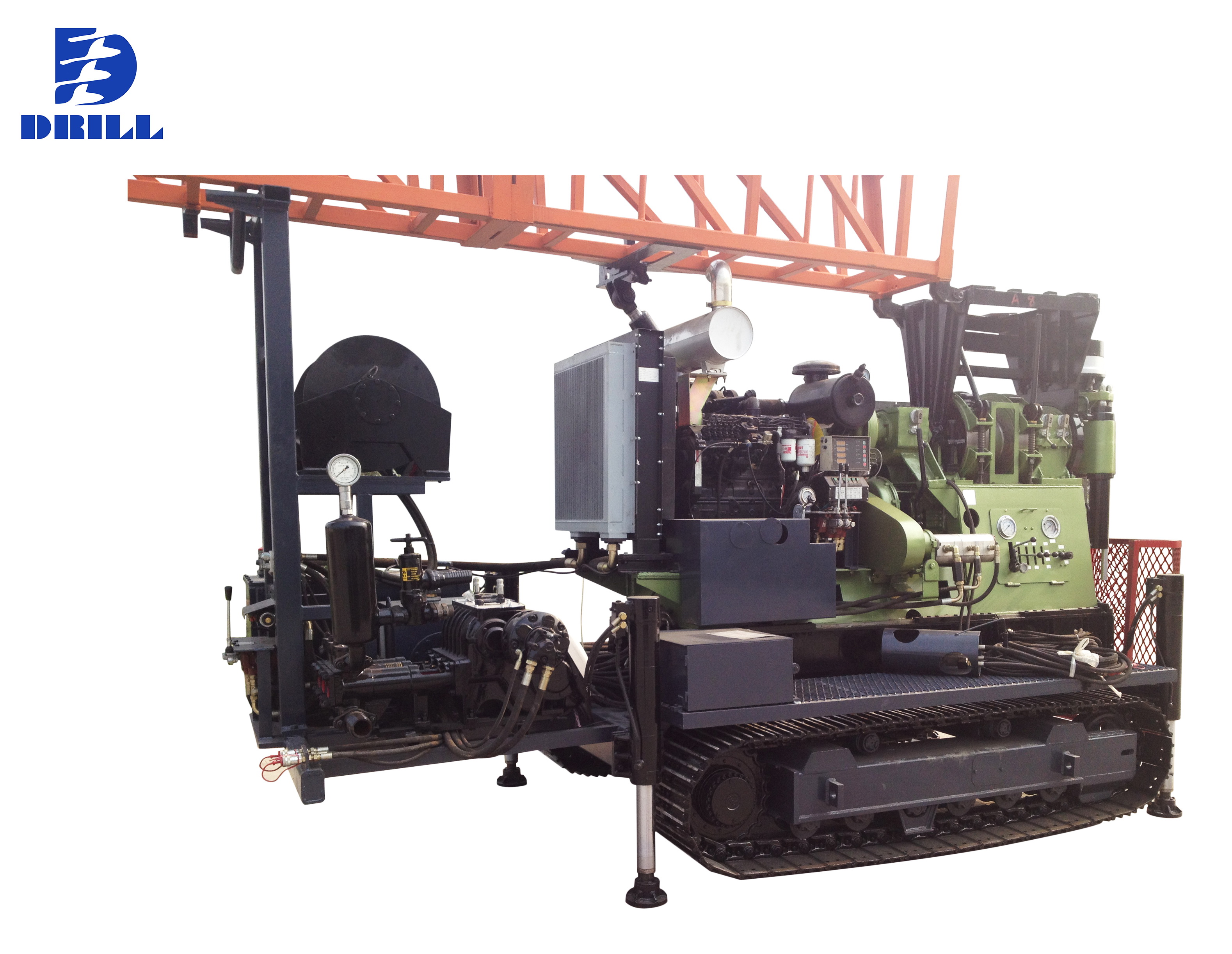

- HXY-44TL
- 【Bref】：
Product feature
1. It is the product of the perfect intergration of full-hydraulic system with traditional mechanical drill technology.
2. Equipped with anxiliaryhydraulic hoister and hydraulic mud pump, it is convenient for installation. With its compact structure, it is also convenient for operation.
3. Installed with hydraulic lifting drill tower, it is flexible in operation.
4. With 4 hydraulic outriggers, it is stable in operation.
5. Equipped with crawler, the rig offers flexibility and easy mobility between worksites.
- 【Séries】：Spindle Core Drilling Rig
| HXY-44TL Drilling Rig Parameters | ||
| Drilling Depth | 700—1400 m | |
| Drill Angle | 45-90° | |
| Spindle Speed | Positive | 83, 152, 217, 316, 254, 468, 667, 970 rpm |
| Negative | 67, 206 rpm | |
| Max. Torque | 3800 N·m | |
| Spindle Stroke | 600 mm | |
| I.D of Spindle | 93 mm | |
| Max. Lifting Capacity of Spindle | 120 KN | |
| Max. Pressure Force of Spindle | 90 KN | |
| Dia. Of Steel Wire | 17.5 mm | |
| Winding Drum Capacity | 110 m | |
| Max. Hoisting Force | 45 KN | |
| Drill Tower Height | 10 m | |
| Diesel Engine Power Unit | Cummins 6BT5.9-C130 (97KW / 2200rpm) | |
| Mud Pump | 250 L/min | |
| Mixer (Optional) | Y2-16-0 | |
| Auxiliary Hoister | 12 KN | |
| Max. Load of Mast | 100 KN | |
| Moving Speed | 1.5 km/h | |
| Climbing Capacity | 30° | |
| Dimensions (L×W×H) | 4785×2220×10524 mm | |
| Weight | 10000 kg | |
