BW450/5
【Breve】:

Product Feature

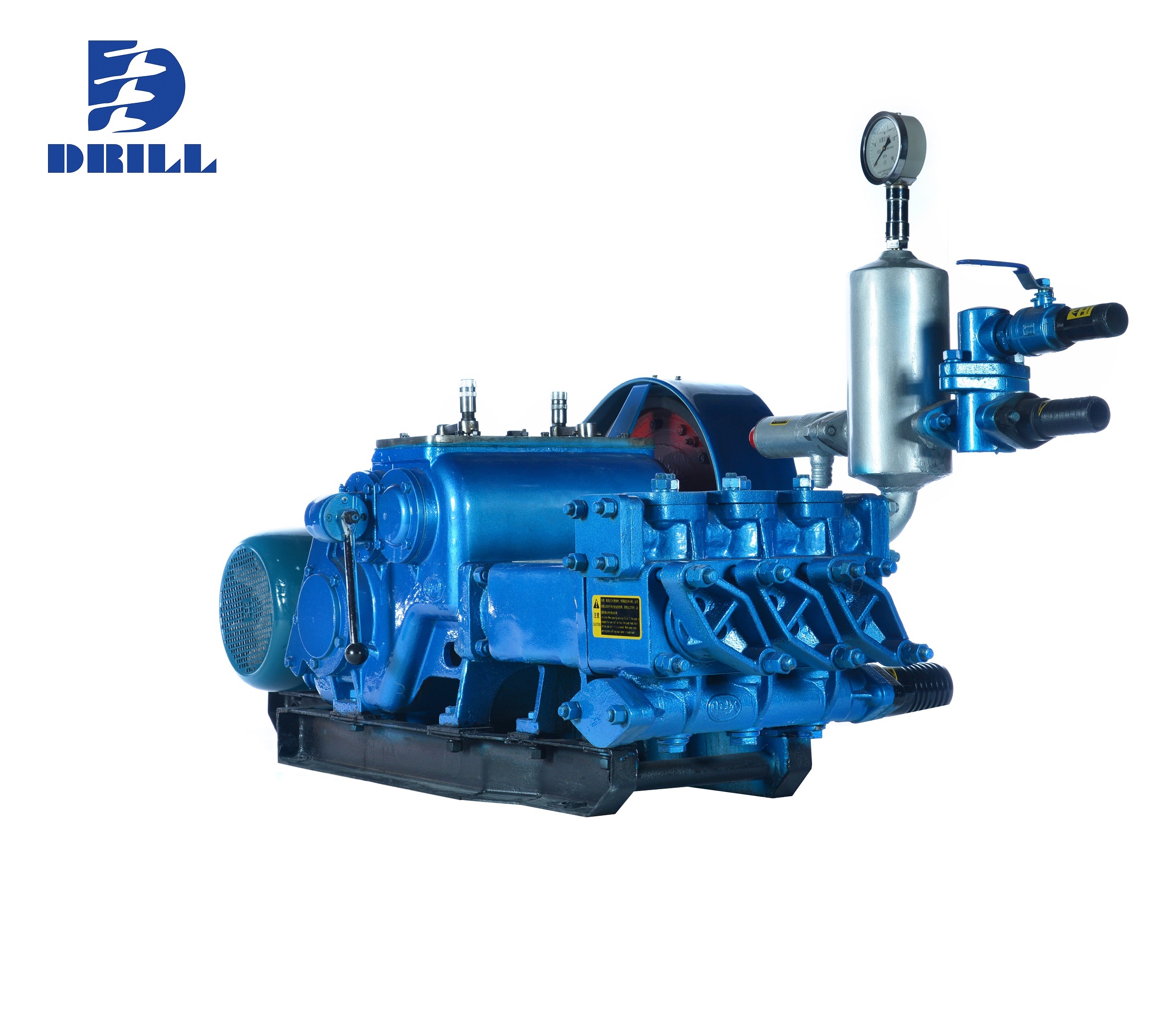

BW450/5-type mud pump is a horizontal three-cylinder reciprocating single-acting piston pump. The pump matching 100m truck drilling rig, can also be used as impact rotary drilling supporting pump. The pump has a four-speed flow and four gear pressure, can well meet the different pore size, hole depth or drilling process needs. With a smooth operation, a wide range of flow, the output pressure is high, stable performance and so on.

【Serie】:Mud Pump
BW450/5 Mud Pump Parameters
Type Horizontal three cylinder reciprocating single acting  piston  pump
Stroke (mm) 100
Cylinder diameter (mm) 95
Pump speed (min-1) 223 168 112 86
Flow (L/min) 450 340 240 172
Pressure (MPa) 2 3 4 5
Power (KW) 22
Shape size (mm) (L×W×H) 1000×995×650
Weight (kg) 520
