- BW320
- 【Breve】：
Product Feature

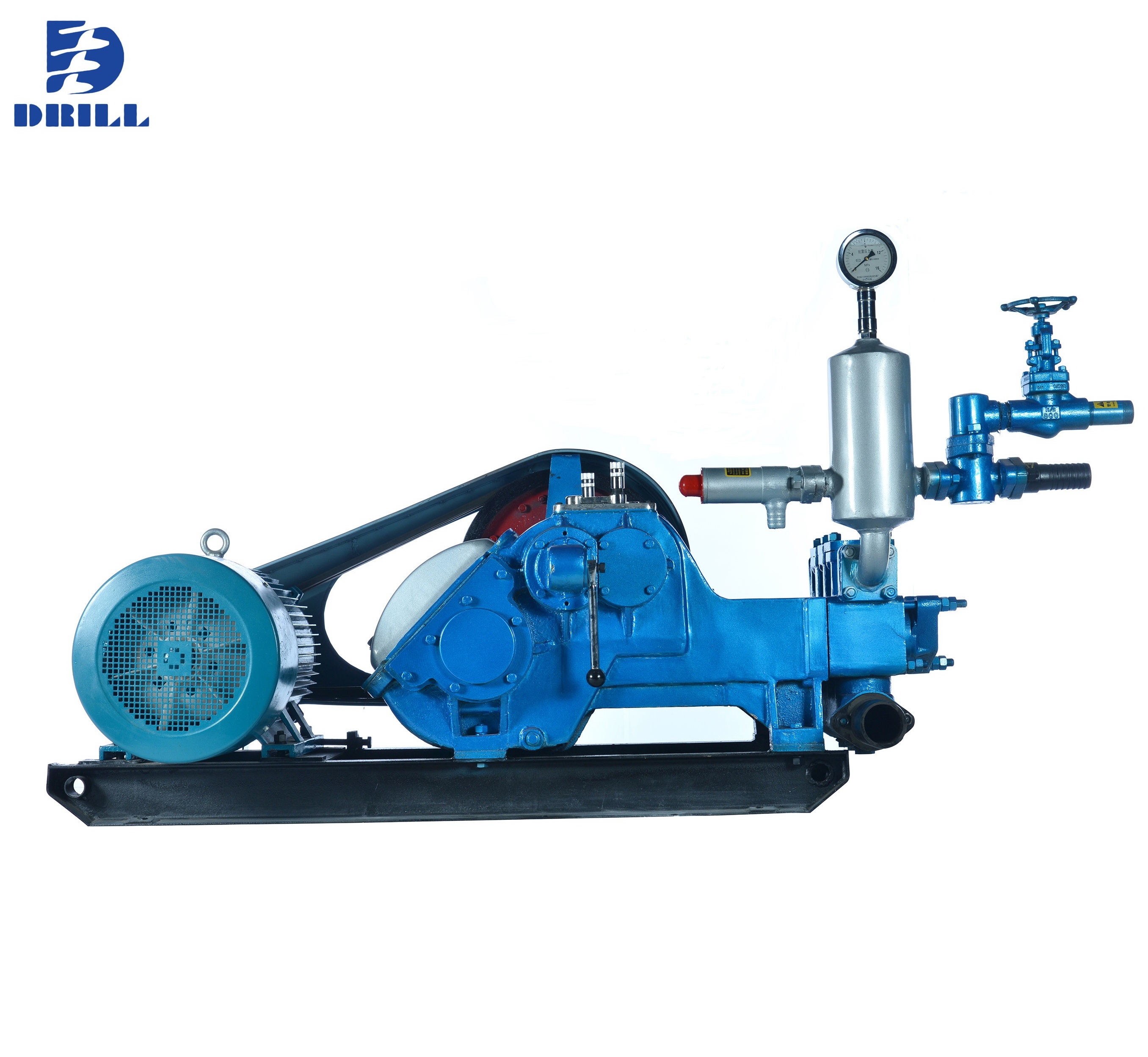

BW320 mud pump is mainly used for about 1500 meters of core exploration drilling rig, the pump has a four-speed flow and four-gear pressure, flow and pressure range, suitable for a variety of pore diameter core drilling.
- 【Serie】：Mud Pump
| BW-320 Mud Pump Parameters | |||||
| Type | Horizontal three cylinder reciprocating single acting piston pump | ||||
| Stroke (mm) | 110 | ||||
| Cylinder diameter (mm) | 80 | ||||
| Pump speed (min-1) | 214 | 153 | 109 | 78 | |
| Flow (L/min) | 320 | 230 | 165 | 118 | |
| Pressure (MPa) | 2.2 | 3.6 | 6.2 | 10 | |
| Power (KW) | 45 | ||||
| Shape size (mm) (L×W×H) | 1905×1100×1200 | ||||
| Weight (kg) | 720 | ||||
