PRODUCTOSUbicación actual :CASA > PRODUCTOS > Spindle Core Drilling Rig
XYD-200
【Breve】:

Product feature

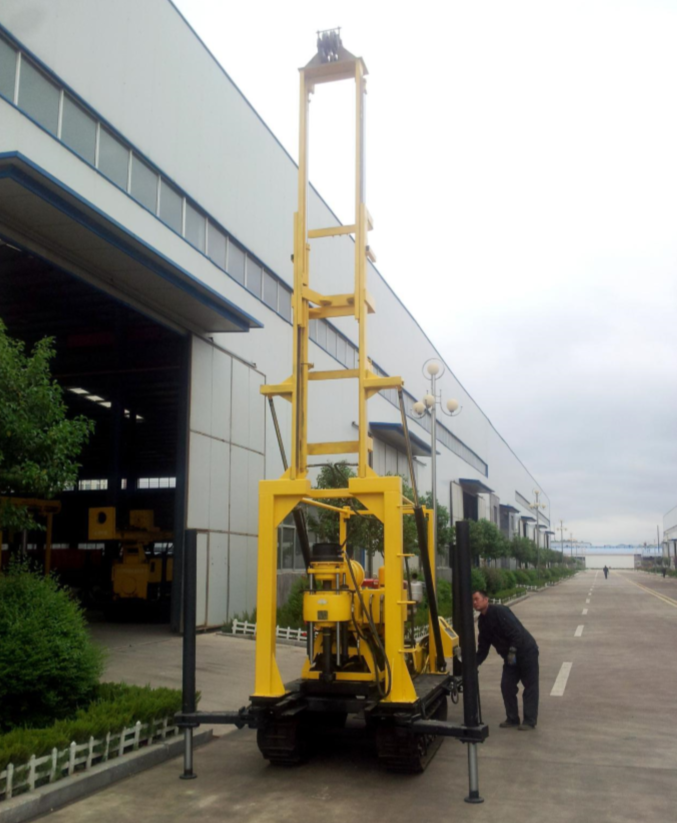

1. The drilling rig adopts automatic telescopic mast, hydraulic cylinder support, hydraulic control drilling tower up and down, the operation saves time and labor, is safe and reliable.

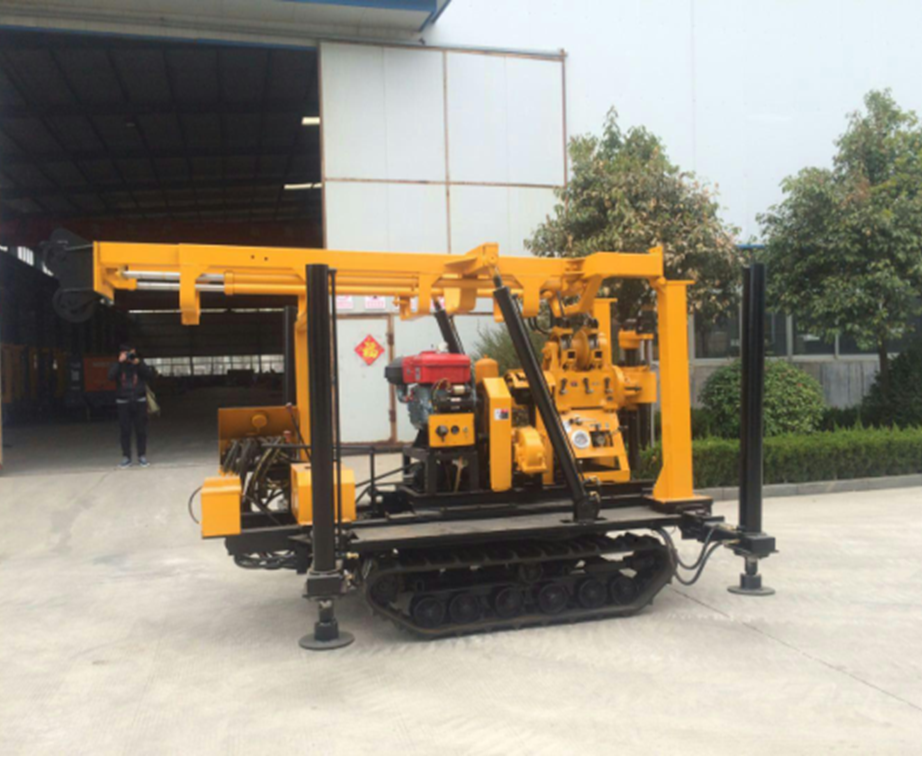

2. The rubber track can reduce the noise of the walking mechanism of the vehicle, reduce the vibration of the body, and can be walked on the city road.
3. Four hydraulic legs can be used for work plane leveling and auxiliary support, convenient for vehicle loading and unloading, reduce lifting costs, improve efficiency.
4. 48V electric start diesel engine, effectively reduce the operator's labor intensity.
5. Independent BW-160 mud pump, large flow, high pressure, easy maintenance.

【Serie】:Spindle Core Drilling Rig
Basic Data Drill Capacity  200m
Initial hole dia. 300mm
Final hole dia. 75mm
Drill Rod Φ50, Φ60
Drill Angle 90~75°
Diesel Engine 15KW/2200rpm
Weight (without power) 3600kg
Dimensions (L×W×H) 3800×1950×2700mm
Spindle Rotate Speed 64, 128, 287, 557rpm
Stroke 450mm
Hoist Hoisting Speed (single wire) 0.12, 0.22, 0.49, 0.95m/S
Hoisting Force (single wire) 24KN
Reel Dia. 140mm
Length of Steel Wire 35m
Steel Wire Dia. 13mm
Drill Mast Rated Load 18T
Effective Height 6.5m
Crawler Chassis Crawler Size 350×90×48mm (part)
Climbing Angle 20°
Moving Speed 10km/h
Hydraulic Landing Leg Valid Height 1300mm
Mud Pump Model BW160
Flow 160L/min
Max. Pressure 1.3MPa
Speed 165min-1
Inlet Hose Dia. 51mm
Outlet Hose Dia 32mm
