XY-44A
【Breve】:

Product feature

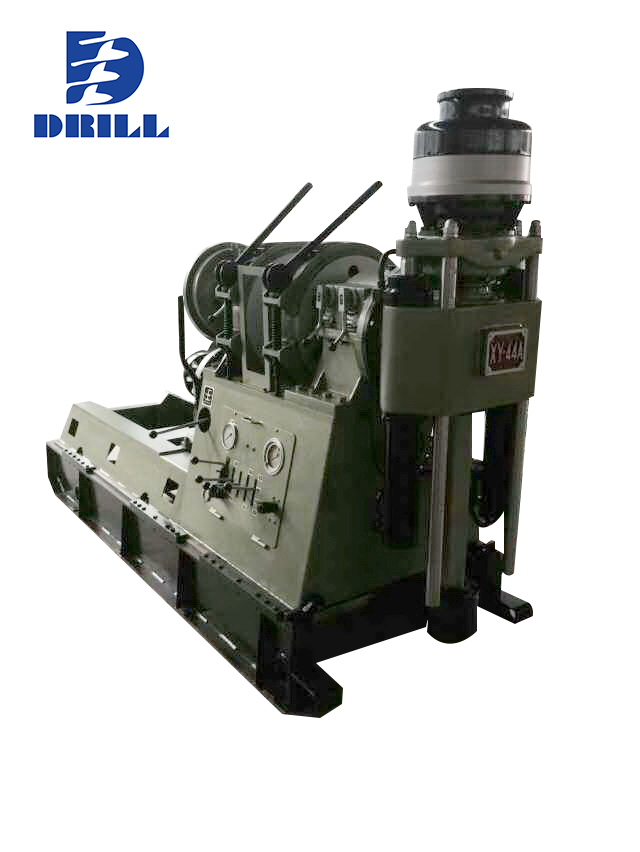

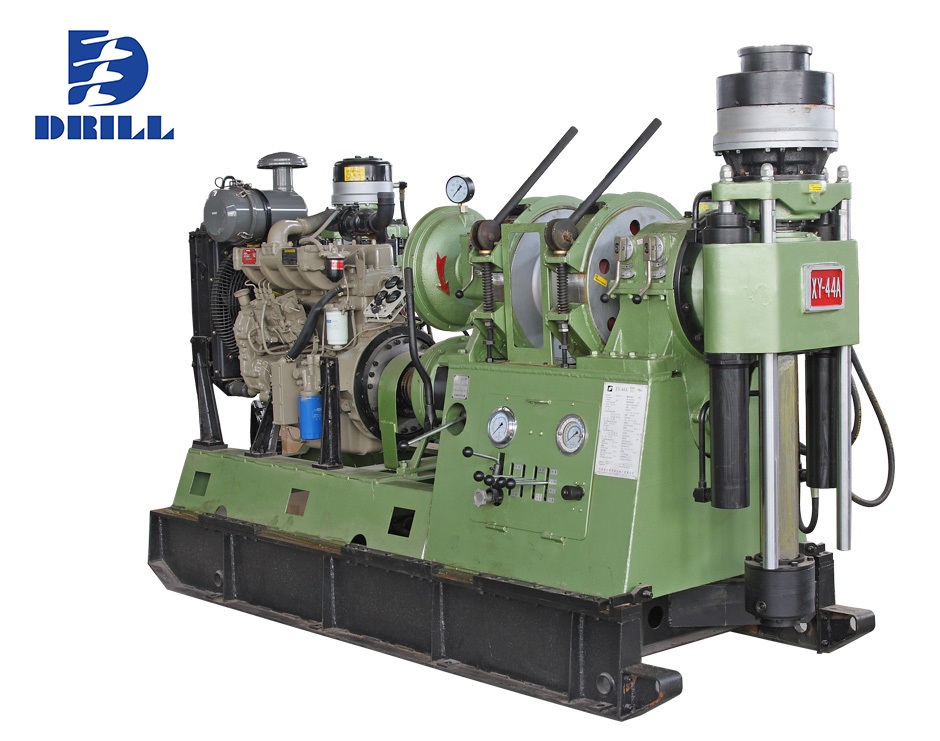

XY-44A core drilling rig is an improved product based on XY-42 and XY-44 drilling rig. Besides all the facilities of XY-42 and XY-44, guide rod structure is adopted on this machine, in addition, the machine is equipped with water brake and manually controlled oil pump.

XY-44A is mainly adapted to suit for core drilling with diamond bit or tungsten-carbide tipped bit. It can also be used for engineering exploration, water well and foundation hole drilling. In addition to China, it is also exported to South-east Asia, Africa Latin America and European countries.



【Serie】:Spindle Core Drilling Rig

 XY-44A Drilling Rig Parameters

Content

Parameter

Content

Parameter

Drilling depth

660-1400m                               (Core drilling)

Max.                                    lifiting capacity of spindle

120KN

100m                                (Foundation stake drilling)

300-800m                               (Hydrological drilling)

Rotation anglc of spindlc

0-360°

Max. pressuring force spindle

90KN

Spindlc speed

Positive

83, 152, 217, 316
254, 468, 667, 970 rpm

DimensionsL×W×H

3042×1100×1920mm

Negative

67, 206 rpm

Max. rotary tarque of spindle

3800N·m

Steel Wire Diameter

17.5mm

Spindle stroke

600mm

Content of Winding Drum

110m

I.D of spindle

93mm

Max. hoisting forcce

45KN

Power

Y225S-4 electric motor 37KW/1480rpm

Weight                               without power unit

2300kg

YC4108ZD diese 50KW/1500rpm
