型式 Type |

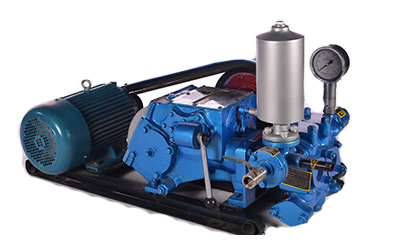

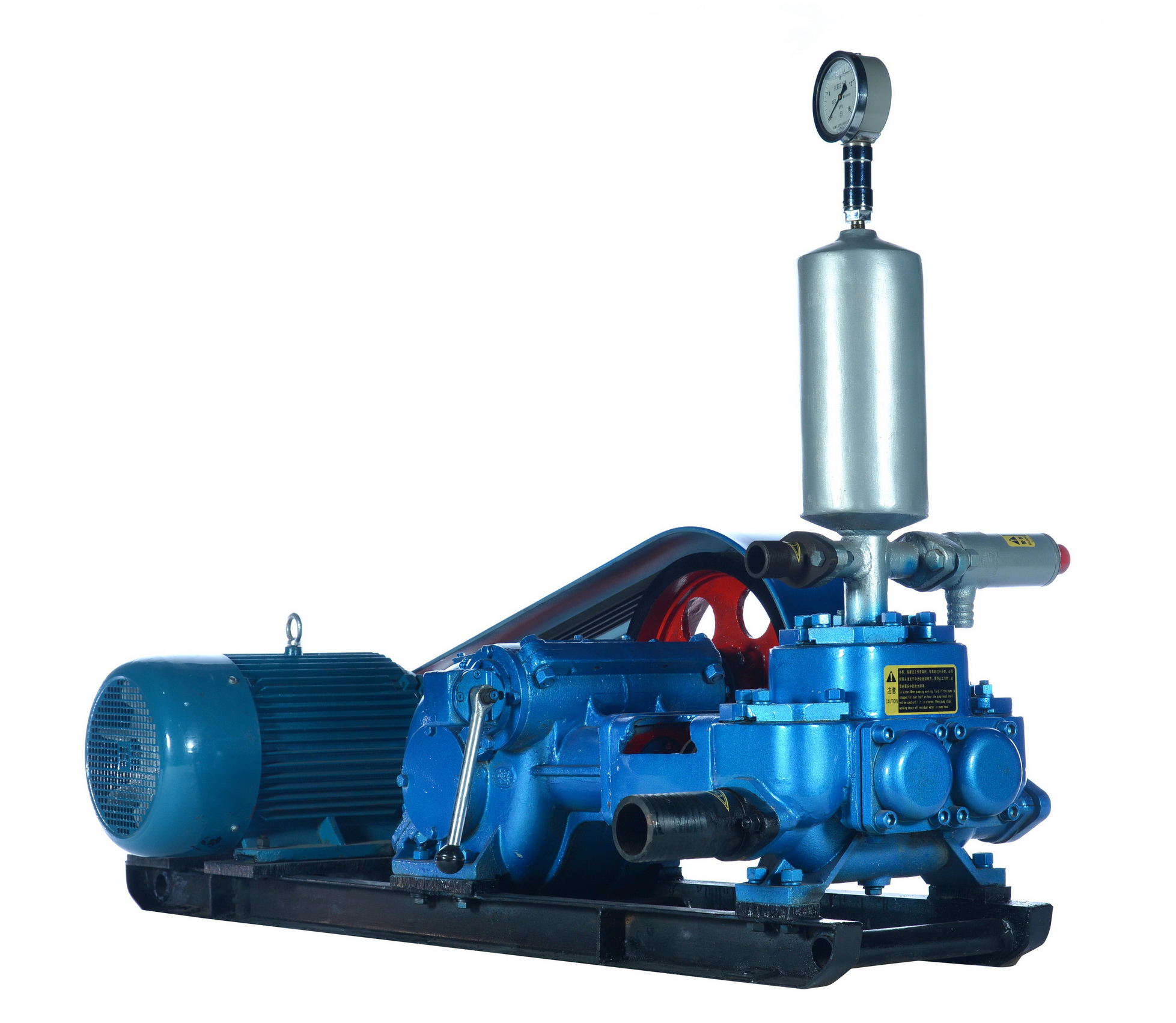

卧式三缸往复单作用活塞泵 Horizontal three cylinder reciprocating single acting piston pump |
|||||||
行程(mm) Stroke |
100 | |||||||
缸径(mm) Cylinder diameter |
80 | 65 | ||||||
泵速(次/min) Pump speed |
200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 |
流量(L/min) Flow |
250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 |
压力(MPa) Pressure |
2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 |
功率(Kw) Power |
15 | |||||||
外形尺寸(mm) shape size |
1000*995*650 | |||||||
质量(kg) Weight |
760 |
